| Maximum lift height (A) | 2284 mm 90 in. |
| Lift capacity at full height | Measured at pivot (U) 617 kgf 1360 lbf Measured at 500 mm ahead of pivot (V) 453 kgf 999 lbf |
| Boom breakout force | Measured at pivot (Y) 1295 kgf 2855 lbf Measured at 500 mm ahead of pivot (Z) 922 kgf 2032 lbf |
| Bucket rollback force capacity | At ground-level line (ZZ) 1188 kgf 2619 lbf |
| Clearance at full height - bucket dumped (C) | 1743 mm 68.6 in. |
| Dump angle, degrees (E) | 43 degree (angle) |
| Rollback angle, degrees (G) | 25 degree (angle) |
| Model | 3120/3320/3520/3720 |
| Front tire | 7.00-14 6PR R1 |
| Rear tire | 11.2-24 6PR R1 |
| Wheelbase | 1727 mm 68 in. |
| Pump capacity | 8.6 gpm |
| Rated pressure | 2500 psi |
| Base weight | 257.21 kg |
| Bucket weight | 93.8 kg 206.8 lb |
| Lift capacity at 59 in. (1500 mm) | Measured at pivot (W) 771 kgf 1700 lbf Measured at 500 mm ahead of pivot (X) 595 kgf 1312 lbf |
| Dimensions | Maximum lift height (A) 2284 mm 90 in. At full height - bucket level(B) 83.5 in. 2123 mm At full height - bucket dumped (C) 1743 mm 68.6 in. |
| Overall length (I+F), ft (m) | 3.122 m 10.24 ft |
| Digging depth (H) | 76 mm 2.9 in. |
| Reach | At maximum height (D) 773 mm 30.4 in. At ground level - bucket level (F) 1381 mm 54.4 in. |
| Bucket angle | Dump angle, degrees (E) 43 degree (angle) Rollback angle, degrees (G) 25 degree (angle) |
| Cycle times | Loader raise, seconds 2.76 seconds Loader lower, seconds 1.69 seconds Bucket dump, seconds 2.91 seconds Bucket rollback, seconds 1.72 seconds |
Inventory moves fast. Call your nearest store to confirm this unit is still here and get the current price.
Yes. Send us the make, model, year and hours of your machine and we will apply the equity.
Often yes, through John Deere Financial and outside lenders depending on the machine. Subject to approved credit and to change.
Yes. We move equipment between all 17 of our Indiana and Ohio dealerships.

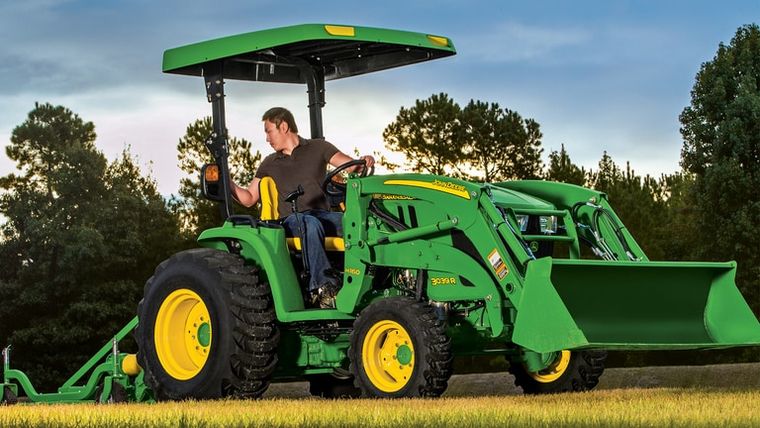

Tell us what you want to know about the John Deere H160.
