| Maximum lift height (A) | 2796 mm 110 in. |
| Lift capacity at full height | Measured at pivot (U) 1006 kg 2313 lb Measured at 500 mm ahead of pivot (V) 1010 kg 2222 lb |
| Boom breakout force | Measured at pivot (Y) 1743.7 kgf 3835 lbf Measured at 500 mm ahead of pivot (Z) 1517 kgf 3337 lbf |
| Bucket rollback force capacity | At ground-level line (ZZ) 2101 kgf 4622 lbf |
| Clearance at full height - bucket dumped (C) | 2178 mm 86 in. |
| Dump angle, degrees (E) | 46.6 degree (angle) |
| Rollback angle, degrees (G) | 38.4 degree (angle) |
| Model | 4044R, 4049R, 4052R, 4066R |
| Front tire | 25x8-16 6PR R1 T1 |
| Rear tire | 13.8-28 4PR R1 T1 |
| Wheelbase | 1846 mm 73 in. |
| Pump capacity | 15.9 gpm 60.2 L/min |
| Rated pressure | 2499 psi 17.2 MPa |
| Base weight | 302 kg |
| Leveling configuration | Mechanical Self-Leveling |
| Bucket used | Materials - 73 in. |
| Bucket weight | 146 kg 321 lb |
| Lift capacity at 59 in. (1500 mm) | Measured at pivot (W) 1263 kg 2779 lb Measured at 500 mm ahead of pivot (X) 1201 kg 2642 lb |
| Dimensions | Maximum lift height (A) 2796 mm 110 in. At full height - bucket level(B) 2590 mm 102 in. At full height - bucket dumped (C) 2178 mm 86 in. |
| Overall length (I+F), ft (m) | 3.54 m 11.7 ft |
| Overall height in carry position (J) | 1.53 m 5 ft |
| Digging depth (H) | 122 mm 5 in. |
| Reach | At maximum height (D) 755 mm 30 in. At ground level - bucket level (F) 1703 mm 67 in. |
| Bucket angle | Dump angle, degrees (E) 46.6 degree (angle) Rollback angle, degrees (G) 38.4 degree (angle) Dump angle, ground 129.54 degree (angle) |
| Cycle times | Loader raise, seconds 2.41 seconds Loader lower, seconds 1.62 seconds Bucket dump, seconds 2.46 seconds Bucket rollback, seconds 1.65 seconds |
Inventory moves fast. Call your nearest store to confirm this unit is still here and get the current price.
Yes. Send us the make, model, year and hours of your machine and we will apply the equity.
Often yes, through John Deere Financial and outside lenders depending on the machine. Subject to approved credit and to change.
Yes. We move equipment between all 17 of our Indiana and Ohio dealerships.

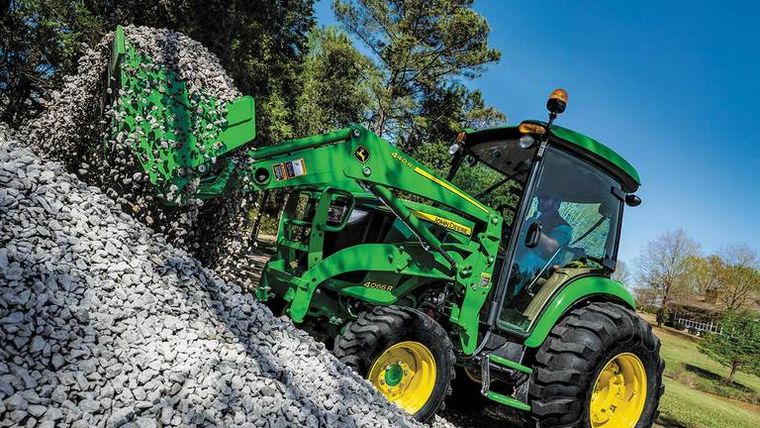

Tell us what you want to know about the John Deere 440R.
