| Maximum lift height (A) | 2616 mm 103.3 in. |
| Lift capacity at full height | Measured at pivot (U) 633 kgf 1393 lbf Measured at 500 mm ahead of pivot (V) 457 kgf 1005 lbf |
| Boom breakout force | Measured at pivot (Y) 1710 kgf 3769 lbf Measured at 500 mm ahead of pivot (Z) 1209 kgf 2665 lbf |
| Bucket rollback force capacity | At ground-level line (ZZ) 1335.4 kgf 2944 lbf |
| Clearance at full height - bucket dumped (C) | 2003 kgf 78.8 lbf |
| Dump angle, degrees (E) | 49.3 degree (angle) |
| Rollback angle, degrees (G) | 23.8 degree (angle) |
| Model | 4105 |
| Front tire | 10-16.5 6PR R4T1 |
| Rear tire | 17.52-24 8PR R4T1 |
| Wheelbase | 1727 mm 68 in. |
| Pump capacity | 5.7 gpm |
| Rated pressure | 2500 psi |
| Base weight | 281.09 kg |
| Bucket used | Materials |
| Bucket weight | 93.8 kg 207 lb |
| Lift capacity at 59 in. (1500 mm) | Measured at pivot (W) 959 kgf 2109 lbf Measured at 500 mm ahead of pivot (X) 745 kgf 1639 lbf |
| Dimensions | Maximum lift height (A) 2616 mm 103.3 in. At full height - bucket level(B) 2411 mm 94.9 in. At full height - bucket dumped (C) 2003 mm 78.8 in. |
| Overall length (I+F), ft (m) | 3.218 m 10.55 ft |
| Digging depth (H) | 121 mm 4.76 in. |
| Reach | At maximum height (D) 766 mm 30.1 in. At ground level - bucket level (F) 1491 mm 50.7 in. |
| Bucket angle | Dump angle, degrees (E) 49.3 degree (angle) Rollback angle, degrees (G) 23.8 degree (angle) Dump angle, ground 138 degree (angle) |
| Cycle times | Loader raise, seconds 3.6 seconds Loader lower, seconds 2.1 seconds Bucket dump, seconds 3.0 / 1.2 (with regen) seconds Bucket rollback, seconds 1.8 seconds |
Inventory moves fast. Call your nearest store to confirm this unit is still here and get the current price.
Yes. Send us the make, model, year and hours of your machine and we will apply the equity.
Often yes, through John Deere Financial and outside lenders depending on the machine. Subject to approved credit and to change.
Yes. We move equipment between all 17 of our Indiana and Ohio dealerships.

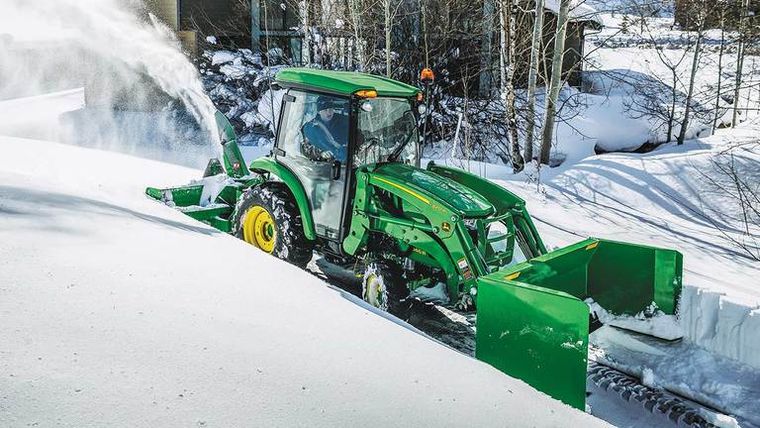

Tell us what you want to know about the John Deere 320R.
