New
Rotary Cutters

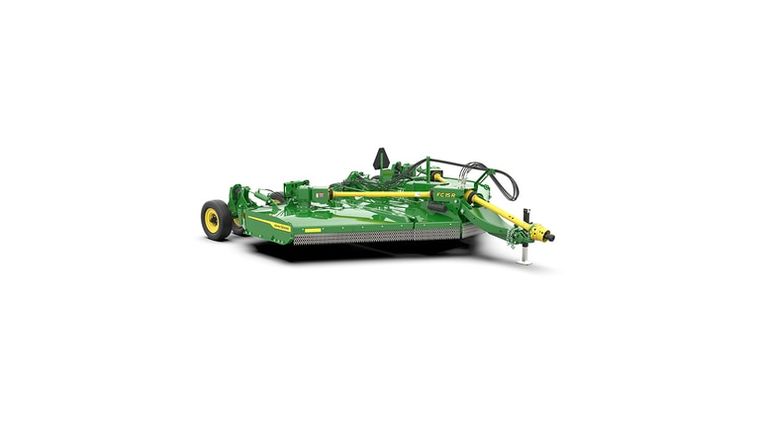

John Deere FC15R
Request price
Available through TRULAND Equipment
- Category
- Rotary Cutters
- Type
- Rotary Cutters
- Condition
- New
| Cutting width | 4.6 m 15 ft |
| Cutting capacity (diameter) | 101.6 mm 4 in. |
| Tractor PTO HP range | 41 kW 55 hp |
| Transport width | At wing wheels: 2.8 m 9.1 ft |
| Deck thickness | 7 gauge - 4.55 mm 0.18 in. |
| Side skirt thickness | 3 gauge - 6 mm 0.24 in. |
| Approx. weight | 2838 kg 6258 lb |
| Drivelines - Size - Main | CV ASAE Category 6, splined telescoping profiles |
| Blade tip speed - 540 rpm - 1000 rpm | 540 rpm: 79.2 m/s 259.8 fps 1000 rpm: 80.5 m/s 284 fps |
| Gearboxes | 5-year warranty |
| Cutting height | 25.4-406.4 mm 1-16 in. May vary with suspended tongue |
| Cutting chamber depth | 279 mm 11 in. |
| Tractor PTO | 540 or 1,000 rpm |
| Jack stand | Mechanical jack stand in base for all machines with hydraulically operated height, stays vertical while raising/lowering |
| Overall width | 4.7 m 15.4 ft |
| Overall length | 5.3 m 17.3 ft |
| Deck shape | Easy-clean smooth top deck |
| Deck type | Single |
| Hinges | Intermittent cast steel segments - maintenance-free single 2.5-cm (1-in.) diameter full-length hinge pin |
| Size | Main CV ASAE Category 6, splined telescoping profiles Connecting ASAE Category 5, splined telescoping profiles |
| Protection | Connecting No-seize, slip-clutch driveline |
| Number | Four |
| HP rating | Transfer Continuous: 186 kW 250 hp Peak : 224 kW 300 hp Center Continuous: 93 kW 125 hp Peak: 168 kW 225 hp Outer Continuous: 93 kW 125 hp Peak: 168 kW 225 hp |
| Thickness | 13 mm 0.5 in. |
| Width | 102 mm 4 in. |
| Type | Suction, inward rotation |
| Overlap | 152 mm 6 in. |
| Blade tip speed | 540 rpm 79.2 m/s 259.8 fps 1000 rpm 80.5 m/s 284 fps |
| Blade holder | Type Round stump jumper and standard deck rings for maximum protection of blades and blade carrier against obstruction damage |
| Wing lift | Independent; includes spring assist unfolding |
| Wing flex | For transport: upward 90 degree (angle) Upward working angle: 45 degree (angle) Downward working angle: 22 degree (angle) |
| Suspension | Airbag suspension |
| Row width adjustment | Yes |
| Wing-leveling adjustment | Easy adjust turnbuckle with bearing |
| Front | Single-row chain guard Optional: double row |
| Rear | Single-row chain guard Optional: double row |
Inventory moves fast. Call your nearest store to confirm this unit is still here and get the current price.
Yes. Send us the make, model, year and hours of your machine and we will apply the equity.
Often yes, through John Deere Financial and outside lenders depending on the machine. Subject to approved credit and to change.
Yes. We move equipment between all 17 of our Indiana and Ohio dealerships.
Tell us what you want to know about the John Deere FC15R.
