New
Rotary Cutters

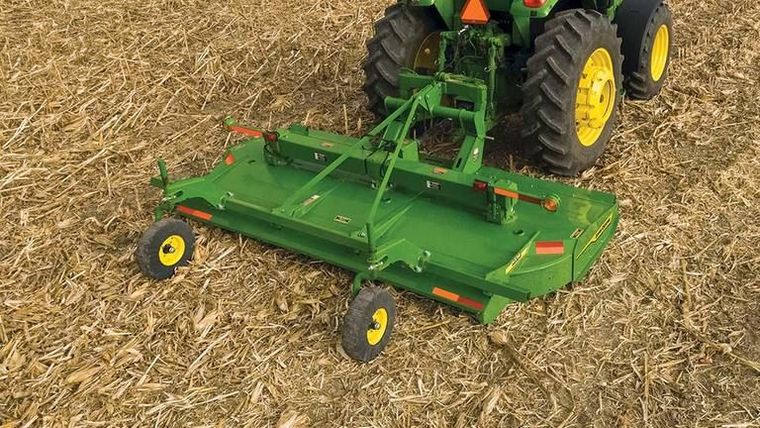

John Deere RC14R
Request price
Available through TRULAND Equipment
- Category
- Rotary Cutters
- Type
- Rotary Cutters
- Condition
- New
| Cutting width | 4,200 mm 165 in. |
| Cutting capacity | 76.2 mm 3 in. |
| Tractor PTO HP range | Minimum PTO pull-type 45 kW 60 hp Minimum PTO lift-type 67 kW 90 hp |
| Hitch - Category | 2, 3, 3N |
| Deck thickness - Upper - Lower | Upper: 3.5 (10) mm 0.141 (10) in. Lower: 3.5 (10) mm |
| Side skirt thickness | 6 (3) mm 0.25 (3) in. |
| Drivelines - Size - Main | ASAE Category 5; lift-type ASAE Category 4; pull-type |
| Protection - Main | Non-seize, slip-clutch driveline, pull-type has equal-angle Category 4 driveline |
| Shielding - front/rear | Front: chain Rear: solid |
| Cutting height | 50 to 305 mm 2 to 12 in. |
| Cutting chamber Depth | 257 mm 10.5 in. |
| Tractor PTO | 1,000 rpm |
| Type | Lift-Type, Pull-Type (Pull-Type has standard 10,000 lb; 4,536 kg, Safety Tow Chain) |
| Category | 2, 3, 3N |
| Transport width | 4,350 mm 171 in. |
| Overall width | 4,350 mm 171 in. |
| Overall length | 2,972 mm 117 in. |
| Deck shape | Domed |
| Deck type | Double decker |
| Deck thickness | Upper 3.5 (10) mm 0.141 (10) in. Lower 3.5 (10) mm 0.141 (10) in. |
| Approx. weight | 1,390 kg 3,059 lb |
| Size | Main ASAE Category 5; lift-type ASAE Category 4; pull-type Connecting ASAE Category 4 with Shear Bolt |
| Protection | Main Non-seize, slip-clutch driveline, pull-type has equal-angle Category 4 driveline Connecting Shock absorbing shafts |
| Number | 3 |
| HP rating | Transfer Continuous 119 kW 160 hp Peak 149 kW 200 hp Outer Continuous 75 kW 100 hp Peak 112 kW 150 hp |
| Thickness | Single suction 13 mm 0.5 in. Dual suction, upper 13 mm Dual suction, lower 13 mm |
| Width | Single suction 102 mm 4 in. Dual suction, upper 76.2 mm 3 in. Dual suction, lower 102 mm |
| Overlap | 75 mm 2.95 in. |
| Blade tip speed | 1000 RPM 4,540 m/min 14,896 fpm 272 km/h 169 mph |
| Material flow system | Max flow |
| Holder | Type Single suction; stump jumper Dual suction; bar-type |
| Row width adjustment | Yes |
| Front | Chain |
| Rear | Solid |
