New
Rotary Cutters

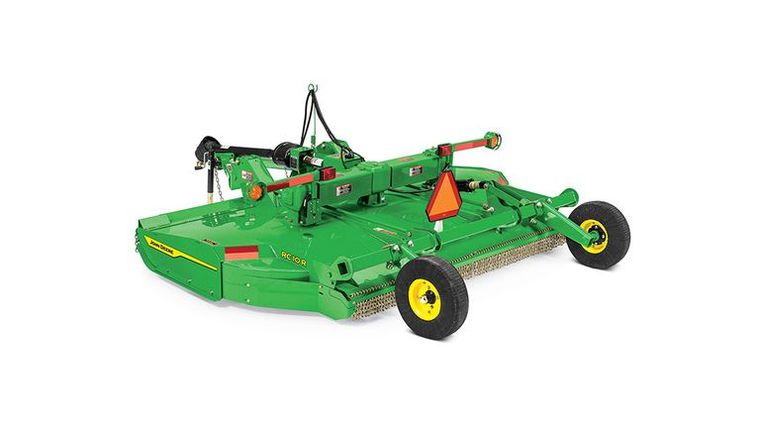

John Deere RC10R
Request price
Available through TRULAND Equipment
- Category
- Rotary Cutters
- Type
- Rotary Cutters
- Condition
- New
| Cutting width | 3,200 mm 126 in. |
| Cutting height | 25 to 305 mm 1 to 12 in. |
| Cutting capacity | 76.2 mm 3 in. |
| Cutting chamber Depth | 267 mm 10.5 in. |
| Tractor PTO HP range | Minimum pull-type 37 kW 50 hp Minimum PTO lift-type 60 kW 80 hp |
| Tractor PTO | 540 rpm |
| Type | Lift-Type, Pull-Type (Pull-Type has standard 10,000 lb; 4,539 kg, Safety Tow Chain) |
| Category | 2, 3, 3N |
| Transport width | 3,350 mm 132 in. |
| Overall width | 3,350 mm 132 in. |
| Overall length | 4,040 mm 159 in. |
| Deck shape | Domed |
| Deck type | Double decker |
| Deck thickness | Upper 3.5 (10) mm 0.141 (10) in. Lower 3.5 (10) mm 0.141 (10) in. |
| Side skirt thickness | 6 (3) mm 0.25 (3) in. |
| Approx. weight | 1,057 kg 2,326 lb |
| Size | Main ASAE Category 5; lift-type ASAE Category 4; pull-type |
| Protection | Main Non-seize, slip-clutch driveline pull-type has equal-angle Category 4 driveline Connecting Shock absorbing shafts |
| Number | 3 |
| HP rating | Transfer Continuous 89 kW 120 hp Peak 134 kW 180 hp Outer Continuous 75 kW 100 hp Peak 104 kW 140 hp |
| Thickness | 13 mm 0.5 in. |
| Width | 102 mm 4 in. |
| Overlap | 75 mm 2.8 in. |
| Blade tip speed | 540 RPM 5,148 m/min 16,889 fpm 309 km/h 192 mph |
| Material flow system | Max flow |
| Holder | Type Round stump jumper |
| Row width adjustment | Yes |
| Front | Chain |
| Rear | Chain |
Inventory moves fast. Call your nearest store to confirm this unit is still here and get the current price.
Yes. Send us the make, model, year and hours of your machine and we will apply the equity.
Often yes, through John Deere Financial and outside lenders depending on the machine. Subject to approved credit and to change.
Yes. We move equipment between all 17 of our Indiana and Ohio dealerships.
Tell us what you want to know about the John Deere RC10R.
