New
Rotary Cutters

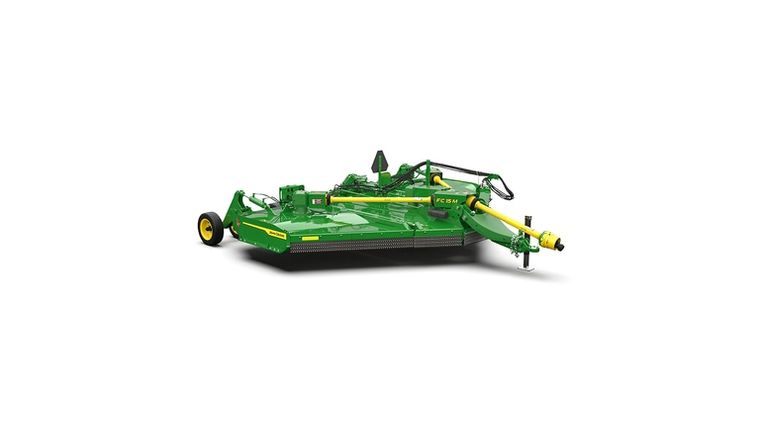

John Deere FC15M
Request price
Available through TRULAND Equipment
- Category
- Rotary Cutters
- Type
- Rotary Cutters
- Condition
- New
| Cutting width | 4.6 m 15 ft |
| Cutting capacity (diameter) | 76.2 mm 3 in. |
| Tractor PTO HP range | 41 kW 55 hp |
| Transport width | At wing wheels: 2.8 m 9.1 ft |
| Deck thickness | 10 gauge - 3.4 mm 0.135 in. |
| Side skirt thickness | 3 gauge - 6 mm 0.24 in. |
| Approx. weight | 2283 kg 5035 lb |
| Drivelines - Size - Main | CV ASAE Category 5, splined telescoping profiles |
| Blade tip speed - 540 rpm - 1000 rpm | 540 rpm: 79.2 m/s 259.8 fps 1000 rpm: 80.5 m/s 284 fps |
| Gearboxes | 5-year warranty |
| Cutting height | 25.4-406.4 mm 1-16 in. |
| Cutting chamber depth | 254 mm 10 in. |
| Tractor PTO | 540 or 1,000 rpm |
| Jack stand | Mechanical jack stand in base for all machines with hydraulically operated height, stays vertical while raising/lowering |
| Overall width | 4.7 m 15.4 ft |
| Overall length | 5.3 m 17.3 ft |
| Deck shape | Easy-clean smooth top deck |
| Deck type | Single |
| Hinges | Intermittent cast steel segments - greaseable single 2.5-cm (1-in.) diameter full-length hinge pin |
| Size | Main CV ASAE Category 5, splined telescoping profiles Connecting ASAE Category 5, splined telescoping profiles |
| Protection | Connecting No-seize, slip-clutch driveline |
| Number | Four |
| HP rating | Transfer Continuous: 186 kW 250 hp Peak: 224 kW 300 hp Center Continuous: 75 kW 100 hp Peak: 161 kW 216 hp Outer Continuous: 75 kW 100 hp Peak: 161 kW 216 hp |
| Thickness | 13 mm 0.5 in. |
| Width | 102 mm 4 in. |
| Type | Suction |
| Overlap | 152 mm 6 in. |
| Blade tip speed | 540 rpm 79.2 m/s 259.8 fps 1000 rpm 80.5 m/s 284 fps |
| Blade holder | Type Round stump jumper for maximum protection for blade carrier against obstruction damage Option of double blade bar for extra shredding |
| Wing lift | Simultaneous; includes spring assist unfolding |
| Wing flex | For transport: upward 90 degree (angle) Upward working angle: 45 degree (angle) Downward working angle: 22 degree (angle) |
| Suspension | Spring suspension Optional: Torsional suspension |
| Row width adjustment | Yes |
| Wing-leveling adjustment | Easy adjust turnbuckle with bearing |
| Front | Single-row chain guard |
| Rear | Single-row chain guard |
