New
Rotary Cutters

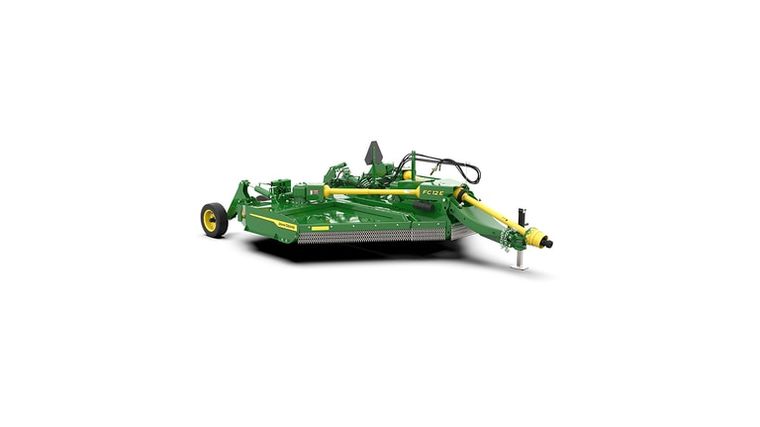

John Deere FC12E
Request price
Available through TRULAND Equipment
- Category
- Rotary Cutters
- Type
- Rotary Cutters
- Condition
- New
| Cutting width | 3.7 m 12 ft |
| Cutting capacity (diameter) | 50.8 mm 2 in. |
| Tractor PTO HP range | 30 kW 40 hp |
| Transport width | At wing wheels: 2.3 m 7.5 ft |
| Deck thickness | 11 gauge - 3 mm 0.12 in. |
| Side skirt thickness | 3 gauge - 6 mm 0.24 in. |
| Approx. weight | 1623 kg 3580 lb |
| Drivelines - Size - Main | CV ASAE Category 4, splined telescoping profiles |
| Blade tip speed - 540 rpm - 1000 rpm | 540 rpm: 86.6 m/s 284.1 fps |
| Gearboxes | 5-year warranty |
| Cutting height | 25.4-406.4 mm 1-16 in. |
| Cutting chamber depth | 254 mm 10 in. |
| Tractor PTO | 540 rpm |
| Type | Standard self-level hitch clevis with 57.2-cm (22.5-in.) narrow-profile width |
| Jack stand | Mechanical jack stand in base for all machines with hydraulically operated height, stays vertical while raising/lowering |
| Overall width | 3.8 m 12.4 ft |
| Overall length | 4.8 m 15.7 ft |
| Deck shape | Easy-clean smooth top deck |
| Deck type | Single |
| Hinges | Intermittent cast steel segments - greaseable single 2.5-cm (1-in.) diameter full-length hinge pin |
| Size | Main CV ASAE Category 4, splined telescoping profiles Connecting ASAE Category 4, splined telescoping profiles |
| Protection | Connecting No-seize, slip-clutch driveline |
| Number | Four |
| HP rating | Transfer Continuous: 186 kW 250 hp Peak: 224 kW 300 hp Center Continuous: 56 kW 75 hp Peak: 75 kW 100 hp Outer Continuous: 56 kW 75 hp Peak: 75 kW 100 hp |
| Thickness | 13 mm 0.5 in. |
| Width | 102 mm 4 in. |
| Overlap | 152 mm 6 in. |
| Blade tip speed | 540 rpm 86.6 m/s 284.1 fps |
| Blade holder | Type Round stump jumper for maximum protection for blade carrier against obstruction damage: 7 gauge 4.55 mm 0.18 in. Blade bar: 2.5 x 10.1 cm 1 x 4 in. |
| Wing lift | One SCV connected to the tractor (machine height plus wing lift) |
| Wing flex | For transport: upward 90 degree (angle) Upward working angle: 45 degree (angle) Downward working angle: 22 degree (angle) |
| Suspension | No suspension - rigid back axle |
| Row width adjustment | No |
| Wing-leveling adjustment | Easy adjust turnbuckle with bearing |
| Front | Single-row chain guard |
| Rear | Single-row chain guard |
