| Maximum lift height (A) | 4151 mm 163 in. |
| Lift capacity at full height | Measured at pivot (U) 2515 kg 5545 lb |
| Boom breakout force | Measured at pivot (Y) 2814 kgf 6204 lbf |
| Bucket rollback force capacity | At ground-level line (ZZ) 4365 kgf 9623 lbf |
| Clearance at full height - bucket dumped (C) | 3141 mm 124 in. |
| Dump angle, degrees (E) | 59 degree (angle) |
| Rollback angle, degrees (G) | 52 degree (angle) |
| Model | 6110R/M, 6120R/M, 6130R/M |
| Front tire | 480/70R24 |
| Rear tire | 520/70R38 |
| Front axle configuration | MFWD w/ Limited Slip Differential |
| Wheelbase | 2580 mm 101 in. |
| Pump capacity | 114 L/min 30.1 gpm |
| Rated pressure | 200 bar 2900 psi |
| Base weight | 2072.3 kg |
| Leveling configuration | Non-Self Leveling (NSL) |
| Bucket used | Heavy-duty grapple 2450 mm Heavy-duty grapple 96 in. |
| Bucket weight | 375 kg 826 lb |
| Lift capacity at 59 in. (1500 mm) | Measured at pivot (W) 2654 kg 5851 lb Measured at 800 mm ahead of pivot (X) 2080 kg 4586 lb |
| Dimensions | Maximum lift height (A) 4151 mm 163 in. At full height - bucket level(B) 3911 mm 154 in. At full height - bucket dumped (C) 3141 mm 124 in. |
| Overall length (I+F), ft (m) | 5.4 m 17.6 ft |
| Digging depth (H) | 53 mm 2 in. |
| Reach | At maximum height (D) 993 mm 39 in. At ground level - bucket level (F) 2809 mm 111 in. |
| Bucket angle | Dump angle, degrees (E) 59 degree (angle) Rollback angle, degrees (G) 52 degree (angle) Dump angle, ground 144 degree (angle) |
| Cycle times | Loader raise, seconds 3.5 seconds Loader lower, seconds 2.63 seconds Bucket dump, seconds 2.65 seconds Bucket rollback, seconds 1.81 seconds |
Inventory moves fast. Call your nearest store to confirm this unit is still here and get the current price.
Yes. Send us the make, model, year and hours of your machine and we will apply the equity.
Often yes, through John Deere Financial and outside lenders depending on the machine. Subject to approved credit and to change.
Yes. We move equipment between all 17 of our Indiana and Ohio dealerships.

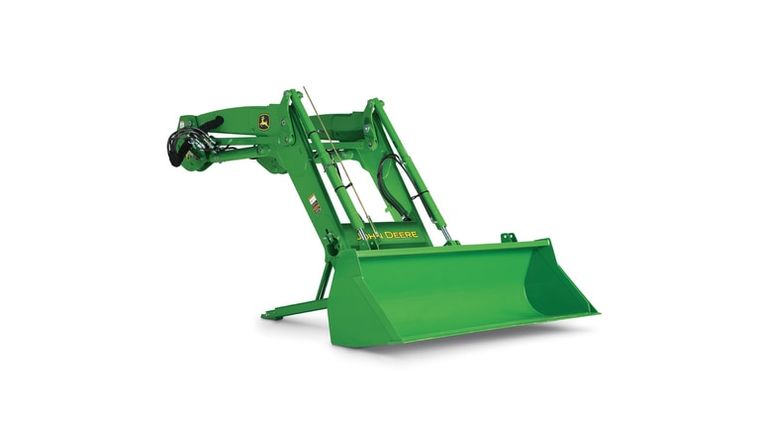

Tell us what you want to know about the John Deere 640R.
