| Maximum lift height (A) | 4131 mm 163 in. |
| Lift capacity at full height | Measured at pivot (U) 2348 kg 5176 lb |
| Boom breakout force | Measured at pivot (Y) 3006 kgf 6627 lbf |
| Bucket rollback force capacity | At ground-level line (ZZ) 4238 kgf 9343 lbf |
| Clearance at full height - bucket dumped (C) | 3123 mm 123 in. |
| Dump angle, degrees (E) | -59 degree (angle) |
| Rollback angle, degrees (G) | 48 degree (angle) |
| Model | 6105R/M, 6115R/M, 6125R/M |
| Front tire | 480/70R24 |
| Rear tire | 520/70R38 |
| Front axle configuration | MFWD with Limited Slip Differential |
| Wheelbase | 2580 mm 102 in. |
| Pump capacity | 114 L/min 30.1 gpm |
| Rated pressure | 200 bar 2901 psi |
| Base weight | 1498.4 kg |
| Leveling configuration | Mechanical Self Leveling (MSL) |
| Bucket used | 2150HD Grapple |
| Bucket weight | 372 kg 821 lb |
| Lift capacity at 59 in. (1500 mm) | Measured at pivot (W) 2686 kg 5922 lb Measured at 800 mm ahead of pivot (X) 2531 kg 5580 lb |
| Dimensions | Maximum lift height (A) 4131 mm 163 in. At full height - bucket level(B) 3891 mm 153 in. At full height - bucket dumped (C) 3123 mm 123 in. |
| Overall length (I+F), ft (m) | 4.9 m 16.2 ft |
| Digging depth (H) | 53 mm 2 in. |
| Reach | At maximum height (D) 819 mm 32 in. At ground level - bucket level (F) 2504 mm 99 in. |
| Bucket angle | Dump angle, degrees (E) -59 degree (angle) Rollback angle, degrees (G) 48 degree (angle) Dump angle, ground -99 degree (angle) |
| Cycle times | Loader raise, seconds 3.37 seconds Loader lower, seconds 2.53 seconds Bucket dump, seconds 1.81 seconds Bucket rollback, seconds 1.81 seconds |
Inventory moves fast. Call your nearest store to confirm this unit is still here and get the current price.
Yes. Send us the make, model, year and hours of your machine and we will apply the equity.
Often yes, through John Deere Financial and outside lenders depending on the machine. Subject to approved credit and to change.
Yes. We move equipment between all 17 of our Indiana and Ohio dealerships.

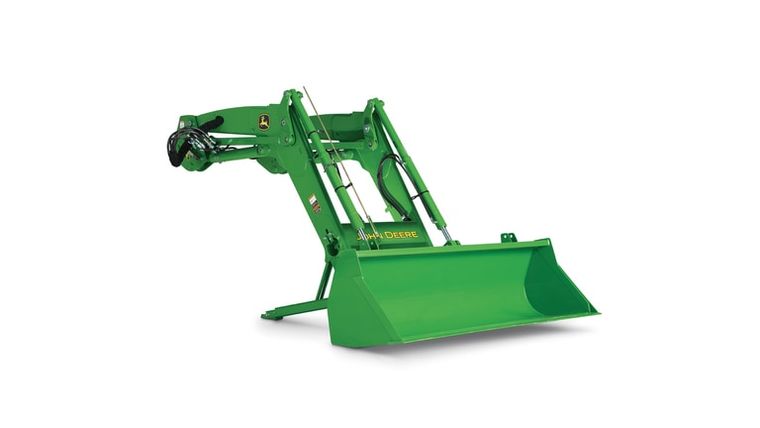

Tell us what you want to know about the John Deere 620R.
