| Maximum lift height (A) | 3595 mm 141.53 in. |
| Lift capacity at full height | Measured at pivot (U) 1926 kg 4246 lb |
| Boom breakout force | Measured at pivot (Y) 2243 kgf 4945 lbf |
| Bucket rollback force capacity | At ground-level line (ZZ) 2609 kgf 5752 lbf |
| Clearance at full height - bucket dumped (C) | 2564 mm 100.94 in. |
| Dump angle, degrees (E) | 63.75 degree (angle) |
| Rollback angle, degrees (G) | 47 degree (angle) |
| Model | 5M Tractor Series |
| Front tire | 13.6R24 |
| Rear tire | 16.9R34 |
| Front axle configuration | MFWD |
| Wheelbase | 2350 mm 92.52 in. |
| Pump capacity | 70 L/min 18.49 gpm |
| Rated pressure | 195 bar 2828.24 psi |
| Base weight | 1215.1 kg |
| Leveling configuration | Non-Self Leveling (NSL) |
| Bucket used | 1850 mm 73 in. |
| Bucket weight | 281 kg 619 lb |
| Lift capacity at 59 in. (1500 mm) | Measured at pivot (W) 2101 kg 4632 lb Measured at 800 mm ahead of pivot (X) 1576 kg 3474 lb |
| Dimensions | Maximum lift height (A) 3595 mm 141.53 in. At full height - bucket level(B) 3355 mm 132.07 in. At full height - bucket dumped (C) 2564 mm 100.94 in. |
| Digging depth (H) | 139 mm 5.47 in. |
| Reach | At maximum height (D) 794 mm 31.26 in. At ground level - bucket level (F) 2385 mm 93.88 in. |
| Bucket angle | Dump angle, degrees (E) 63.75 degree (angle) Rollback angle, degrees (G) 47 degree (angle) |
| Cycle times | Loader raise, seconds 4.25 seconds Loader lower, seconds 3.18 seconds Bucket dump, seconds 3.32 seconds Bucket rollback, seconds 2.23 seconds |
Inventory moves fast. Call your nearest store to confirm this unit is still here and get the current price.
Yes. Send us the make, model, year and hours of your machine and we will apply the equity.
Often yes, through John Deere Financial and outside lenders depending on the machine. Subject to approved credit and to change.
Yes. We move equipment between all 17 of our Indiana and Ohio dealerships.

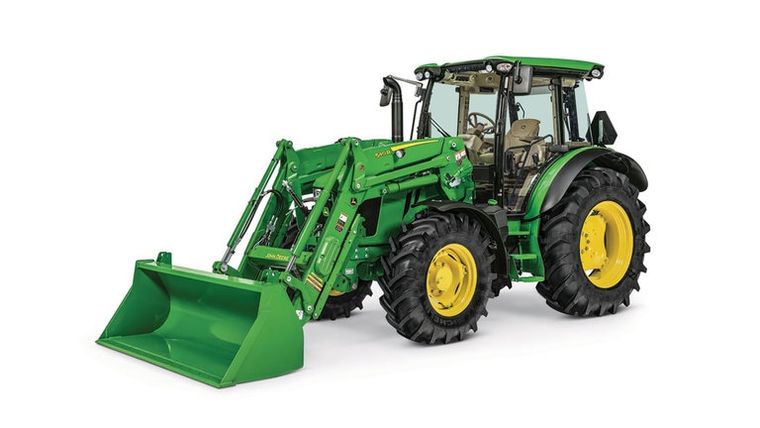

Tell us what you want to know about the John Deere 540R.
