| Maximum lift height (A) | 3578 mm 141 in. |
| Lift capacity at full height | Measured at pivot (U) 1373 kg 3027 lb |
| Boom breakout force | Measured at pivot (Y) 2671 kg |
| Bucket rollback force capacity | At ground-level line (ZZ) 3046 kg |
| Clearance at full height - bucket dumped (C) | 2538 mm 100 in. |
| Dump angle, degrees (E) | -74 degree (angle) |
| Rollback angle, degrees (G) | 42 degree (angle) |
| Model | 6135E |
| Front tire | 14.9R24 |
| Rear tire | 18.4R38 |
| Front axle configuration | MFWD |
| Wheelbase | 2380 mm 94 in. |
| Pump capacity | 75.7 L/min 20 gpm |
| Rated pressure | 195 bar 2828 psi |
| Base weight | 1028.2 kg |
| Leveling configuration | Mechanical Self Leveling (MSL) |
| Bucket used | Materials 1850 mm Materials 73 in. |
| Bucket weight | 246 kg 542 lb |
| Lift capacity at 59 in. (1500 mm) | Measured at pivot (W) 2015 kg Measured at 800 mm ahead of pivot (X) 1931 kg |
| Dimensions | Maximum lift height (A) 3578 mm 141 in. At full height - bucket level(B) 3383 mm 133 in. At full height - bucket dumped (C) 2538 mm 100 in. |
| Overall length (I+F), ft (m) | 4.8 m 15.8 ft |
| Digging depth (H) | 47 mm 1.9 in. |
| Reach | At maximum height (D) 1011 mm 39.8 in. At ground level - bucket level (F) 2426 mm 95.5 in. |
| Bucket angle | Dump angle, degrees (E) -74 degree (angle) Rollback angle, degrees (G) 42 degree (angle) Dump angle, ground -96 degree (angle) |
| Cycle times | Loader raise, seconds 3.4 seconds Loader lower, seconds 2.5 seconds Bucket dump, seconds 2.1 seconds Bucket rollback, seconds 2.1 seconds |
Inventory moves fast. Call your nearest store to confirm this unit is still here and get the current price.
Yes. Send us the make, model, year and hours of your machine and we will apply the equity.
Often yes, through John Deere Financial and outside lenders depending on the machine. Subject to approved credit and to change.
Yes. We move equipment between all 17 of our Indiana and Ohio dealerships.

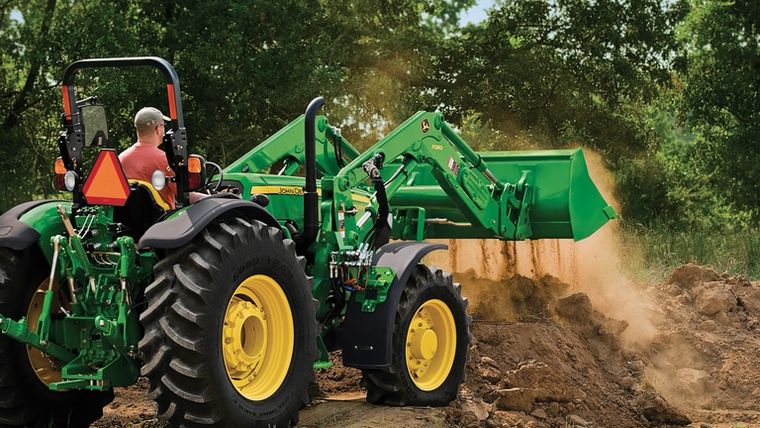

Tell us what you want to know about the John Deere 540M.
