New
3 Family 24 45Hp

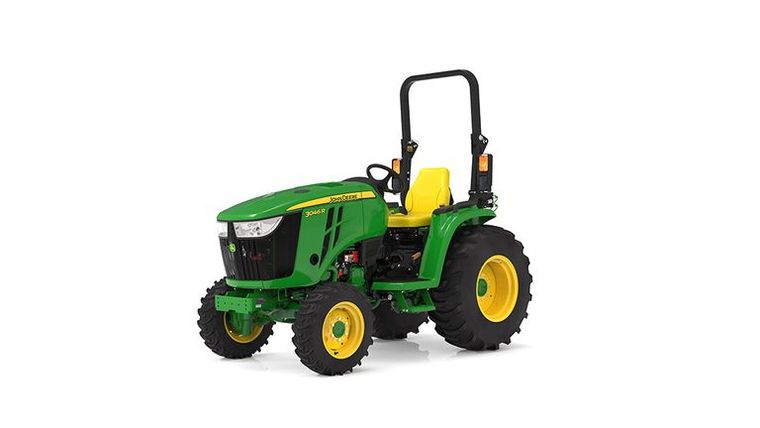

John Deere 3046R
Request price
Available through TRULAND Equipment
- Category
- 3 Family 24 45Hp
- Type
- 3 Family 24 45Hp
- Condition
- New
| Engine power (gross) | SAE J1995 rated power: 33.3 kW 44.7 hp 45.3 PS at 2600 rpm |
| Power take-off (PTO) power | 25.2 kW 33.9 hp |
| Steering hydraulics | 23.5 L/min 6.2 gpm |
| Implement hydraulics | 34.3 L/min 9.1 gpm |
| Hitch type | Category 1 |
| Lift capacity, 24-in. behind link arms | 995 kg 2194 lb |
| Standard transmission; forward/reverse | eHydro transmission |
| Cruise control | Standard |
| Approximate shipping weight (open-station; cab) | Open operator station (OOS): 1391 kg 3066 lb Cab: 1818 kg 4008 lb |
| Wheelbase | 1727 mm 68 in. |
| Manufacturer | Yanmar® |
| Engine model | 3TNV86CHT-MJTV |
| Rated engine speed | 2600 rpm |
| Type | Diesel |
| Injection pump type | High pressure common rail direct injection |
| Aspiration | Turbocharged and intercooled |
| Emissions compliance | Final Tier 4 |
| Cylinders/displacement | Three cylinders: 1.57 L 95.7 cu in. |
| Number of cylinders | Three |
| Cylinder liners | Cast-in-block |
| Bore and stroke | 86 x 90 mm 3.4 x 3.54 in. |
| Compression ratio | 19.1:1 |
| Lubrication | Pressurized |
| Cooling system | Liquid |
| Air cleaner | Dual element |
| Engine torque at rated speed | 112.3 Nm 90 lb-ft |
| Fuel tank capacity | OOS: 37.4 L 10 U.S. gal. Cab only: 47.6 L 12.6 U.S. gal. |
| Battery size | 500 CCA |
| Alternator (12-V) | 75 amp |
| Starter size | 1.4 kW 1.9 hp |
| Transmission gear ranges | Three-range, infinitely variable |
| Final drive | Spur gear |
| Brakes | Wet disk |
| Steering | Hydrostatic power steering |
| Axle capacity | Front 1450 kg 3197 lb Rear 1850 kg 4079 lb |
| Pump rated output | Steering 23.5 L/min 6.2 gpm Implement 34.3 L/min 9.1 gpm 57.8 L/min 15.3 gpm |
| Pump type | Single gear |
| Maximum operating pressure | 172 bar 2495 psi |
| Draft control sensing | Position control |
| Remote control valves available | Up to six rear remotes |
| Standard | Independent rear: 540 rpm |
| Optional | Mid: 2100 rpm |
| Control | Lever and switch |
| Clutch | Wet disk |
| Brake (for mid and rear PTO) | Wet disk |
| Crankcase with filter | 5.7 L 6 gal. |
| Transmission and hydraulic system | 26.5 L 7 U.S. gal. |
| Rollover protective structure | Type Foldable |
Inventory moves fast. Call your nearest store to confirm this unit is still here and get the current price.
Yes. Send us the make, model, year and hours of your machine and we will apply the equity.
Often yes, through John Deere Financial and outside lenders depending on the machine. Subject to approved credit and to change.
Yes. We move equipment between all 17 of our Indiana and Ohio dealerships.
Tell us what you want to know about the John Deere 3046R.
