New
3 Family 24 45Hp

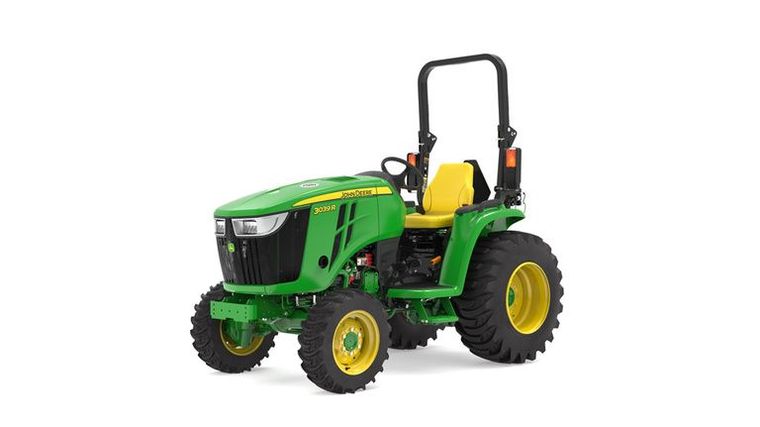

John Deere 3039R
Request price
Available through TRULAND Equipment
- Category
- 3 Family 24 45Hp
- Type
- 3 Family 24 45Hp
- Condition
- New
| Engine power (gross) | SAE J1995 rated power: 28.5 kW 38.2 hp 38.7 PS at 2600 rpm |
| Power take-off (PTO) power | PowrReverser™ transmission: 24.4 kW 32.8 hp eHydro™ transmission: 22.2 kW 29.8 hp |
| Steering hydraulics | 23.5 L/min 6.2 gpm |
| Implement hydraulics | 34.3 L/min 9.1 gpm |
| Hitch type | Category 1 |
| Lift capacity, 24-in. behind link arms | 995 kg 2194 lb |
| Standard transmission; forward/reverse | PowrReverser transmission |
| Cruise control | PowrReverser transmission: Not applicable eHydro transmission: Standard |
| Approximate shipping weight (open-station; cab) | Open operator station (OOS) PowrReverser transmission: 1363 kg 3005 lb OOS eHydro transmission: 1382 kg 3047 lb Cab eHydro transmission only: 1676 kg 3695 lb |
| Wheelbase | 1727 mm 68 in. |
| Manufacturer | Yanmar® |
| Engine model | 3TNV86CT-MJT |
| Rated engine speed | 2600 rpm |
| Type | Diesel |
| Injection pump type | High pressure common rail direct injection |
| Aspiration | Turbocharged |
| Emissions compliance | Final Tier 4 |
| Cylinders/displacement | Three cylinders: 1.57 L 95.7 cu in. |
| Number of cylinders | Three |
| Cylinder liners | Cast-in-block |
| Bore and stroke | 86 x 90 mm 3.4 x 3.54 in. |
| Compression ratio | 19.1:1 |
| Lubrication | Pressurized |
| Cooling system | Liquid |
| Air cleaner | Dual element |
| Engine torque at rated speed | 105 Nm 77.4 lb-ft |
| Fuel tank capacity | OOS: 37.4 L 10 U.S. gal. Cab eHydro transmission only: 47.6 L 12.6 U.S. gal. |
| Battery size | 500 CCA |
| Alternator (12-V) | 75 amp |
| Starter size | 1.4 kW 1.9 hp |
| Optional transmission; forward/reverse | eHydro transmission |
| Left-hand reverser | PowrReverser transmission only |
| Transmission gear ranges | PowrReverser transmission: 12F/12R eHydro transmission: three-range, infinitely variable |
| Final drive | Spur gear |
| Brakes | Wet disk |
| Steering | Hydrostatic power steering |
| Clutch, wet/dry | PowrReverser transmission: Wet disk |
| Axle capacity | Front 1450 kg 3197 lb Rear 1850 kg 4079 lb |
| Pump rated output | Steering 23.5 L/min 6.2 gpm Implement 34.3 L/min 9.1 gpm 57.8 L/min 15.3 gpm |
| Pump type | Single gear |
| Maximum operating pressure | 172 bar 2495 psi |
| Draft control sensing | Position control |
| Remote control valves available | Up to six rear remotes |
| Standard | Independent rear: 540 rpm |
| Optional | PowrReverser transmission: Mid - not applicable eHydro transmission: Mid - 2100 rpm |
| Control | Lever and switch |
| Clutch | Wet disk |
| Brake (for mid and rear PTO) | Wet disk |
