New
3 Family 24 45Hp

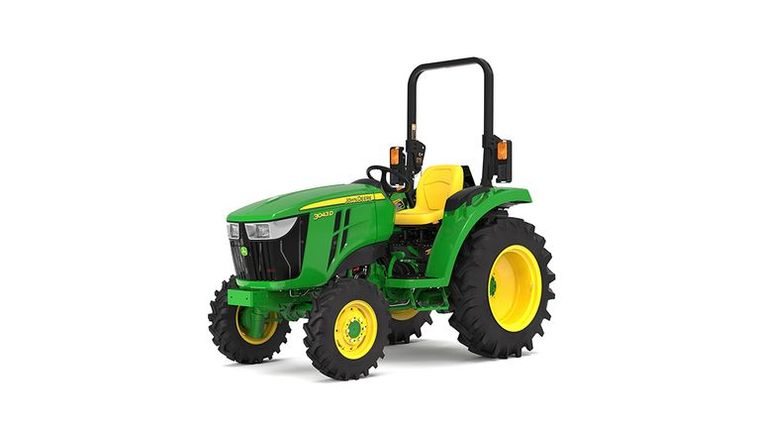

John Deere 3043D
Request price
Available through TRULAND Equipment
- Category
- 3 Family 24 45Hp
- Type
- 3 Family 24 45Hp
- Condition
- New
| Engine power (gross) | SAE J1995 rated power: 31 kW 41.6 hp 42.2 PS at 2800 rpm |
| Power take-off (PTO) power | 27.1 kW 36.3 hp |
| Steering hydraulics | 16.8 L/min 4.4 gpm |
| Implement hydraulics | 22.4 L/min 5.9 gpm |
| Hitch type | Category 1 |
| Lift capacity, 24-in. behind link arms | 944 kg 2081.2 lb |
| Standard transmission; forward/reverse | 8F/8R synchromesh shuttle shift gear transmission |
| Cruise control | No |
| Approximate shipping weight (open-station; cab) | Open operator station (OOS): 1288 kg 2840 lb Cab: Not applicable |
| Wheelbase | 1574 mm 62 in. |
| Manufacturer | Yanmar® |
| Engine model | 3TNV86CT-KJPT |
| Rated engine speed | 2800 rpm |
| Injection pump type | High pressure common rail direct injection |
| Aspiration | Turbocharged |
| Emissions compliance | Final Tier 4 |
| Cylinders/displacement | 3 / 1.57 L 3 / 95.8 cu in. |
| Number of cylinders | Three |
| Cylinder liners | Cast-in-block |
| Bore and stroke | 86 x 90 mm 3.39 x 3.54 in. |
| Compression ratio | 19.1:1 |
| Lubrication | Pressurized |
| Cooling system | Liquid |
| Air cleaner | Dual element |
| Engine torque at rated speed | 105.7 Nm 78 lb-ft |
| Fuel tank capacity | 36.7 L 9.7 U.S. gal. |
| Battery size | 600 CCA |
| Alternator (12-V) | 55 amp |
| Starter size | 1.4 kW 1.9 hp |
| Type | High pressure common rail direct injection |
| Left-hand reverser | Yes |
| Transmission gear ranges | Four gears and two ranges |
| Final drive | Spur gear |
| Brakes | Wet disk |
| Steering | Power steering |
| Axle capacity | Front 880 kg 1940 lb Rear 1600 kg 3527 lb |
| Creeper | No |
| Differential lock | Yes |
| Pump rated output | Steering 16.8 L/min 4.4 gpm Implement 22.4 L/min 5.9 gpm 39.2 L/min 10.3 gpm |
| Pump type | Single gear |
| Maximum operating pressure | 172 bar 2495 psi |
| Draft control sensing | Position control |
| Remote control valves available | Up to two (optional) |
| Standard | At 2400 rpm: 540 rpm |
| Control | Mechanical |
| Clutch | Transmission |
| Brake (for mid and rear PTO) | Wet disk |
| Crankcase with filter | 4.5 L 4.8 gal. |
Inventory moves fast. Call your nearest store to confirm this unit is still here and get the current price.
Yes. Send us the make, model, year and hours of your machine and we will apply the equity.
Often yes, through John Deere Financial and outside lenders depending on the machine. Subject to approved credit and to change.
Yes. We move equipment between all 17 of our Indiana and Ohio dealerships.
Tell us what you want to know about the John Deere 3043D.
