New
3 Family 24 45Hp

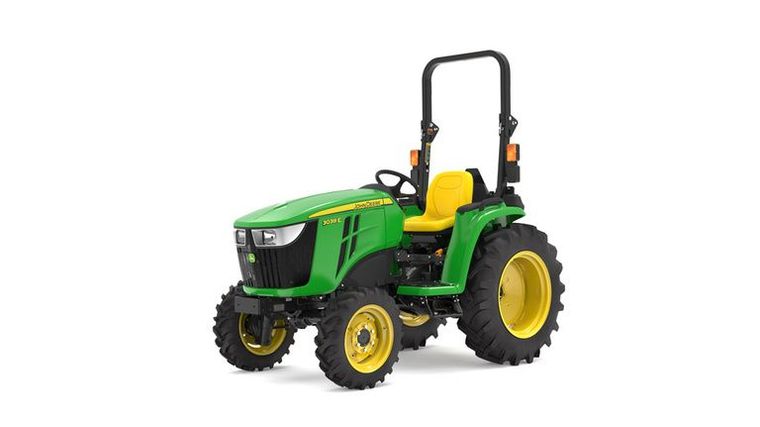

John Deere 3038E
Request price
Available through TRULAND Equipment
- Category
- 3 Family 24 45Hp
- Type
- 3 Family 24 45Hp
- Condition
- New
| Engine power (gross) | SAE J1995 rated power: 27.4 kW 36.7 hp 37.2 PS at 2500 rpm |
| Power take-off (PTO) power | 22.4 kW 30 hp |
| Steering hydraulics | 15.0 L/min 4.0 gpm |
| Implement hydraulics | 20.2 L/min 5.3 gpm |
| Hitch type | Category 1 |
| Lift capacity, 24-in. behind link arms | 615 kg 1356 lb |
| Standard transmission; forward/reverse | Hydrostatic transmission (HST) |
| Cruise control | Optional |
| Approximate shipping weight (open-station; cab) | Open operator station (OOS): 1210 kg 2668 lb Cab: Not applicable |
| Wheelbase | 1593 mm 62.7 in. |
| Family | FYDXL1.57TDA EYDXL1.57TDA GYDXL1.57TDA |
| Manufacturer | Yanmar |
| Engine model | 3TNV86CT-NJT2 |
| Rated engine speed | 2500 rpm |
| Type | Diesel |
| Injection pump type | High pressure common rail direct injection |
| Aspiration | Turbocharged |
| Emissions compliance | Final Tier 4 |
| Cylinders/displacement | 3 / 1.57 L 3 / 95.7 cu in. |
| Number of cylinders | Three |
| Cylinder liners | Cast-in-block |
| Bore and stroke | 86 x 90 m 3.4 x 3.54 in. |
| Compression ratio | 19.1:1 |
| Lubrication | Pressurized |
| Cooling system | Water Pump |
| Air cleaner | Dual element |
| Engine torque at rated speed | 104.7 Nm 77.2 lb-ft |
| Fuel tank capacity | 28.5 L 7.5 gal. |
| Battery size | 500 CCA |
| Alternator (12-V) | 55 amp |
| Starter size | 1.4 kW 1.9 hp |
| Left-hand reverser | No |
| Final drive | Spur gear |
| Brakes | Wet disk |
| Steering | Power steering |
| Axle capacity | Front 880 kg 1940 lb Rear 1200 kg 2645 lb |
| Creeper | No |
| Differential lock | Yes |
| Pump rated output | Steering 15.0 L/min 4.0 gpm Implement 20.2 L/min 5.3 gpm 35.2 L/min 9.3 gpm |
| Pump type | Dual gear |
| Maximum operating pressure | 172 bar 2495 psi |
| Draft control sensing | Position control |
| Remote control valves available | Up to two (optional) |
| Standard | Rear - 540 rpm |
| Control | Independent |
| Clutch | Wet disk |
| Brake (for mid and rear PTO) | Wet disk |
| Crankcase with filter | 4.5 L 4.8 gal. |
Inventory moves fast. Call your nearest store to confirm this unit is still here and get the current price.
Yes. Send us the make, model, year and hours of your machine and we will apply the equity.
Often yes, through John Deere Financial and outside lenders depending on the machine. Subject to approved credit and to change.
Yes. We move equipment between all 17 of our Indiana and Ohio dealerships.
Tell us what you want to know about the John Deere 3038E.
