| Maximum lift height | 2160 mm 85 in. |
| Lift capacity at full height | Measured at pivot 509 kg 1120 lb Measured at 500 mm ahead of pivot 365 kg 803 lb |
| Boom breakout force | Measured at pivot 886 kgf 1949 lbf Measured at 500 mm ahead of pivot 618 kgf 1360 lbf |
| Bucket rollback force capacity | At ground-level line 972 kgf 2138 lbf |
| Clearance at full height - bucket dumped | 1667 mm 66 in. |
| Dump angle, degrees | 36 degree (angle) |
| Rollback angle, degrees | 34 degree (angle) |
| Model | 2032R, 2038R |
| Front tire | 23x8.50-14 4PR R4 |
| Rear tire | 14-17.5 6PR R4 |
| Wheelbase | 1725 mm 68 in. |
| Pump capacity | 20.2 L/min 5.3 gpm |
| Rated pressure | 17.23 MPa 2499 psi |
| Base weight | 330.9 kg 729 lb |
| Leveling configuration | Non-Self Leveling |
| Bucket used | 1450 mm 57 in. |
| Bucket weight | 88 kg 194 lb |
| Lift capacity at 59 in. (1500 mm) | Measured at pivot 589 kg 1296 lb Measured at 500 mm ahead of pivot 445 kg 979 lb |
| Dimensions | Maximum lift height 2160 mm 85 in. At full height - bucket level 1999 mm 79 in. At full height - bucket dumped 1667 mm 66 in. |
| Overall length | 3076 mm 121 in. |
| Digging depth | 149 mm 6 in. |
| Reach | At maximum height 756 mm 30 in. At ground level - bucket level 1351 mm 51 in. |
| Bucket angle | Dump angle, degrees 36 degree (angle) Rollback angle, degrees 34 degree (angle) Dump angle, ground 115 degree (angle) |
| Cycle times | Loader raise, seconds 3.19 seconds Loader lower, seconds 1.94 seconds Bucket dump, seconds 4.76 seconds Bucket rollback, seconds 2.91 seconds |
Inventory moves fast. Call your nearest store to confirm this unit is still here and get the current price.
Yes. Send us the make, model, year and hours of your machine and we will apply the equity.
Often yes, through John Deere Financial and outside lenders depending on the machine. Subject to approved credit and to change.
Yes. We move equipment between all 17 of our Indiana and Ohio dealerships.

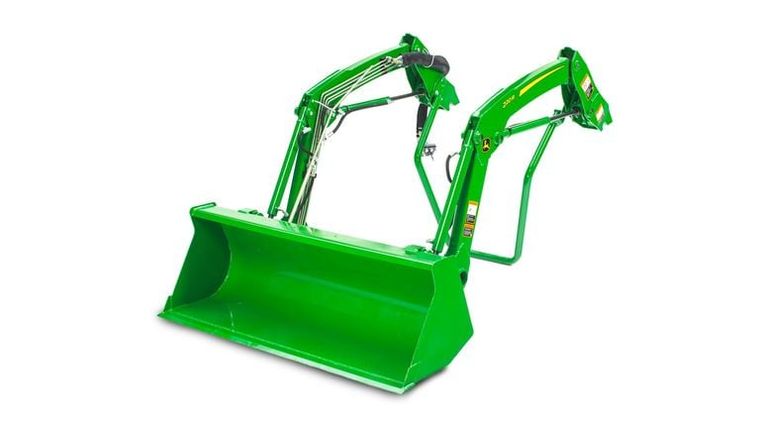

Tell us what you want to know about the John Deere 220R.
