| Maximum lift height (A) | 1828 mm 72 in. |
| Lift capacity at full height | Measured at pivot (U) 364 kg 803 lb Measured at 500 mm ahead of pivot (V) 251 kg 553 lb |
| Boom breakout force | Measured at pivot (Y) 890 kgf 1963 lbf Measured at 500 mm ahead of pivot (Z) 606 kgf 1335 lbf |
| Bucket rollback force capacity | At ground-level line (ZZ) 753 kgf 1659 lbf |
| Clearance at full height - bucket dumped (C) | 1304 mm 51.3 in. |
| Dump angle, degrees (E) | -40.5 degree (angle) |
| Rollback angle, degrees (G) | 30.08 degree (angle) |
| Model | 2025R/2026R |
| Front tire | 23x8.50-12 6PR R4 CL |
| Rear tire | 12.00-16.5 6PR R4 CL |
| Wheelbase | 1600 mm |
| Pump capacity | 26.5 L/min |
| Rated pressure | 2146 psi |
| Base weight | 283.88 kg |
| Bucket used | Materials 1350 mm |
| Bucket weight | 83 kg 183 lb |
| Lift capacity at 59 in. (1500 mm) | Measured at pivot (W) 434 kg 957 lb Measured at 500 mm ahead of pivot (X) 312 kg 688 lb |
| Dimensions | Maximum lift height (A) 1828 mm 72 in. At full height - bucket level(B) 1666 mm 65.6 in. At full height - bucket dumped (C) 1304 mm 51.3 in. |
| Overall length (I+F), ft (m) | 2888 mm 113.7 in. |
| Digging depth (H) | -86 mm -3.4 in. |
| Reach | At maximum height (D) 698 mm 27.5 in. At ground level - bucket level (F) 1288 mm 50.7 in. |
| Bucket angle | Dump angle, degrees (E) -40.5 degree (angle) Rollback angle, degrees (G) 30.08 degree (angle) Dump angle, ground -115.4 degree (angle) |
| Cycle times | Loader raise, seconds 3.7 seconds Loader lower, seconds 2.6 seconds Bucket dump, seconds 4.1 seconds Bucket rollback, seconds 2.5 seconds |
Inventory moves fast. Call your nearest store to confirm this unit is still here and get the current price.
Yes. Send us the make, model, year and hours of your machine and we will apply the equity.
Often yes, through John Deere Financial and outside lenders depending on the machine. Subject to approved credit and to change.
Yes. We move equipment between all 17 of our Indiana and Ohio dealerships.

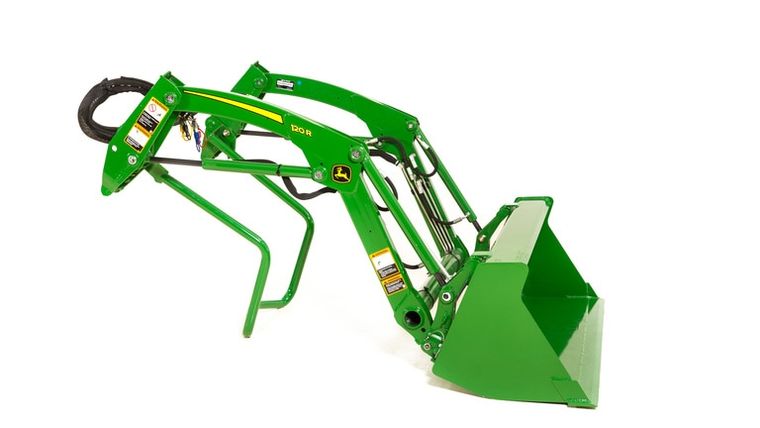

Tell us what you want to know about the John Deere 120R.
