New
John Deere Z500 Mowers

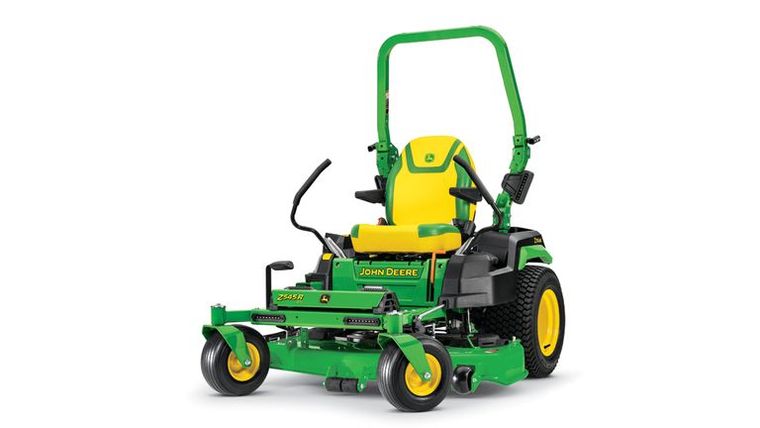

John Deere Z545R
Request price
Available through TRULAND Equipment
- Category
- John Deere Z500 Mowers
- Type
- John Deere Z500 Mowers
- Condition
- New
| High Capacity Mower Deck size | Model Mulching (optional) Material collection (optional) |
| 48 in. (122 cm) | Z545R Dedicated mulching system 6.5-bu (230-L) two-bag Power Flow™ system |
| 54 in. (137 cm) | Z530R, Z545R MulchControl system 6.5-bu (230-L) two-bag Power Flow system |
| 60 in. (152 cm) | Z530R, Z545R MulchControl system Not available |
| Capacity | 6.5 bu (230 L) |
| Hopper top | High impact polypropylene |
| Chute | Polyethylene |
| Blower housing | Nylon |
| Fan | Ultra-high molecular weight (UHMW) polyethylene |
| Bags | Polyester |
| Filling | Directly into bags for emptying on ground or in trailer or into plastic liners |
| Fan diameter | 13 in. (33 cm) |
| Fan width | 2.75 in. (7 cm) |
| Number of fan blades | Four |
| Model | Height at top of ROPS in fully raised position |
| Z515E, Z530R | 70.1 in. (178 cm) |
| Z530R, Z545R | 70.7 in. (179.6 cm) |
| Engine power | 25 hp 18.6 kW |
| Engine model number | HTR EFI/ETC |
| Forward speed | 0-9 mph 0-14.5 km/h |
| Front caster tires | 13x6.5-6 |
| Drive tires | 23x10.5-12 |
| Seat back height | High back with armrests and ComfortGlide™, 22.5 in. 57.1 cm |
| Width of cut | High capacity mower deck, 48 in. 122 cm High capacity mower deck, 54 in. 137 cm High capacity mower deck, 60 in. 152 cm |
| Mulching system | Optional MulchControl™ attachment, 48 in. 122 cm Optional MulchControl attachment, 54 in. 137 cm Optional MulchControl kit, 60 in. 152 cm |
| Power | 25 hp 18.6 kW |
| Model number | HTR EFI/ETC |
| Displacement | 44.2 cu in. 724 cc |
| Cylinders | V-twin |
| Lubrication | Full pressure with replaceable filter, capacity, 2 U.S. qt 1.9 L |
| Type | Overhead valve |
| Battery | 12 V 300 CCA |
| Choke/speed control | Separate control levers |
| Cooling method | Air |
| Fuel tank capacity | 4.5 U.S. gal. 17 L |
| Fuel gauge | Electric gauge and fuel level sight line |
| Dual hydros | Tuff Torq TZT7-M with 1-in. (2.5-cm) axles |
| Reverse speed | 0-4.5 mph 0-7.2 km/h |
| Speed and direction control | Twin premium levers |
| Control adjustment | 2-height/9-fore-aft, 18 positions |
| Frame | Heavy-duty frame tubing |
| Primer/paint | E-coat/powder |
| Front caster bearings | Sealed ball bearings |
| Hour meter | Yes |
| Service interval decal | Yes |
| Storage compartment | Yes and covered |
| Cup holder | Yes |
| Maximum towing capacity | 250 lb 113 kg |
Inventory moves fast. Call your nearest store to confirm this unit is still here and get the current price.
Yes. Send us the make, model, year and hours of your machine and we will apply the equity.
Often yes, through John Deere Financial and outside lenders depending on the machine. Subject to approved credit and to change.
Yes. We move equipment between all 17 of our Indiana and Ohio dealerships.
Tell us what you want to know about the John Deere Z545R.
