New
John Deere Z500 Mowers

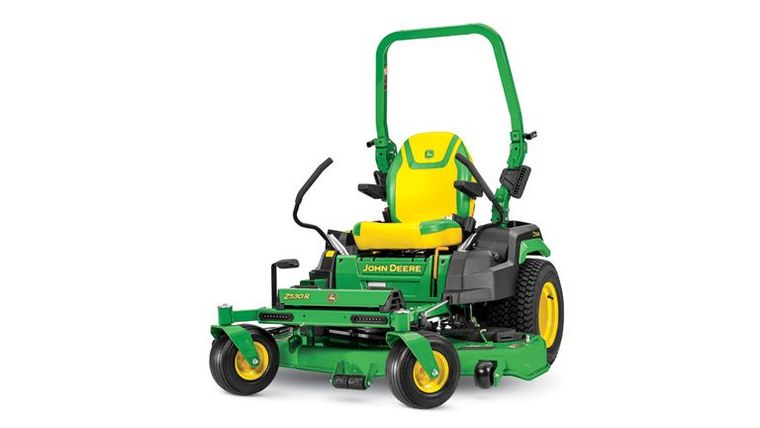

John Deere Z530R
Request price
Available through TRULAND Equipment
- Category
- John Deere Z500 Mowers
- Type
- John Deere Z500 Mowers
- Condition
- New
| High Capacity Mower Deck size | Model Mulching (optional) Material collection (optional) |
| 48 in. (122 cm) | Z545R Dedicated mulching system 6.5-bu (230-L) two-bag Power Flow™ system |
| 54 in. (137 cm) | Z530R, Z545R MulchControl system 6.5-bu (230-L) two-bag Power Flow system |
| 60 in. (152 cm) | Z530R, Z545R MulchControl system Not available |
| Capacity | 6.5 bu (230 L) |
| Hopper top | High impact polypropylene |
| Chute | Polyethylene |
| Blower housing | Nylon |
| Fan | Ultra-high molecular weight (UHMW) polyethylene |
| Bags | Polyester |
| Filling | Directly into bags for emptying on ground or in trailer or into plastic liners |
| Fan diameter | 13 in. (33 cm) |
| Fan width | 2.75 in. (7 cm) |
| Number of fan blades | Four |
| Model | Height at top of ROPS in fully raised position |
| Z515E, Z530R | 70.1 in. (178 cm) |
| Z530R, Z545R | 70.7 in. (179.6 cm) |
| Engine power | 24 hp 17.9 kW |
| Engine model number | FR730V |
| Forward speed | 0-9 mph 0-14.5 km/h |
| Front caster tires | 13x6.5-6 |
| Drive tires | 23x10.5-12 |
| Seat back height | High back with armrests and ComfortGlide™, 22.5 in. 57.1 cm |
| Width of cut | High capacity mower deck, 54 in. 137 cm High capacity mower deck, 60 in. 152 cm |
| Mulching system | Optional MulchControl™ attachment, 54 in. 137 cm Optional MulchControl kit, 60 in. 152 cm |
| Power | 24 hp 17.9 kW |
| Model number | FR730V |
| Displacement | 44.3 cu in. 726 cc |
| Cylinders | V-twin |
| Lubrication | Full pressure with replaceable filter, capacity, 2 U.S. qt 1.9 L |
| Type | Overhead valve |
| Battery | 12 V 300 CCA |
| Choke/speed control | Separate control levers |
| Cooling method | Air |
| Fuel tank capacity | 4.5 U.S. gal. 17 L |
| Fuel gauge | Electric gauge and fuel level sight line |
| Dual hydros | Tuff Torq TZT7-M with 1-in. (2.5-cm) axles |
| Reverse speed | 0-4.5 mph 0-7.2 km/h |
| Speed and direction control | Twin premium levers |
| Control adjustment | 2-height/9-fore-aft, 18 positions |
| Frame | Heavy-duty frame tubing |
| Primer/paint | E-coat/powder |
| Front caster bearings | Sealed ball bearings |
| Hour meter | Yes |
| Service interval decal | Yes |
| Storage compartment | Yes and covered |
| Cup holder | Yes |
| Maximum towing capacity | 250 lb 113 kg |
