New
John Deere Z500 Mowers

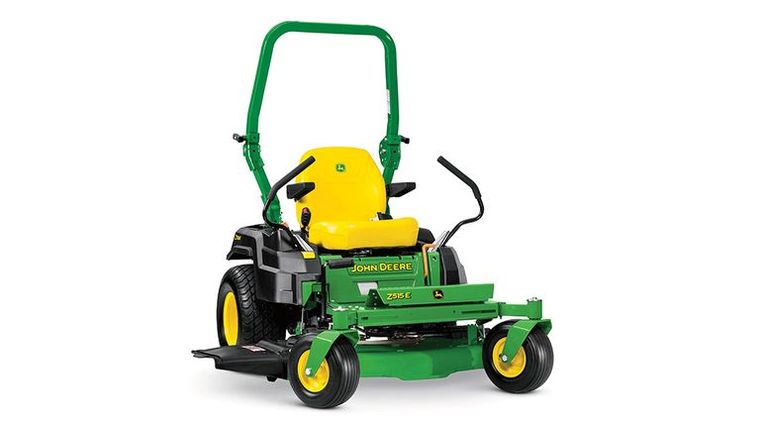

John Deere Z515E
Request price
Available through TRULAND Equipment
- Category
- John Deere Z500 Mowers
- Type
- John Deere Z500 Mowers
- Condition
- New
| Mower Deck | Models Mulching (optional) Material collection (optional) |
| 48-in. (122-cm) Accel Deep (48A) | Z530M MulchControl system 6.5-bu (230-L) two-bag Power Flow™ system |
| 54-in. (137-cm) Accel Deep (54A) | Z515E, Z530M MulchControl system 6.5-bu (230-L) two-bag Power Flow system |
| 60-in. (152-cm) Accel Deep (60A) | Z515E, Z530M MulchControl system Not available |
| Model | Height at top of ROPS in fully raised position |
| Z515E, Z530R | 70.1 in. (178 cm) |
| Z530R, Z545R | 70.7 in. (179.6 cm) |
| Engine power | 24 hp 17.9 kW |
| Engine model number | M44 Extended Life Series (ELS) |
| Forward speed | 0-8 mph 0-12.9 km/h |
| Front caster tires | 13x6.5-6 |
| Drive tires | 22x9.5-10 |
| Seat back height | Medium back with armrests, 18 in. 45.7 cm |
| Width of cut | Accel Deep™ mower deck, 48 in. 122 cm Accel Deep mower deck, 54 in. 137 cm Accel Deep mower deck, 60 in. 152 cm |
| Mulching system | Optional MulchControl™ attachment, 48 in. 122 cm Optional MulchControl attachment, 54 in. 137 cm Optional MulchControl attachment, 60 in. 152 cm |
| Power | 24 hp 17.9 kW |
| Model number | M44 Extended Life Series (ELS) |
| Displacement | 44.2 cu in. 724 cc |
| Cylinders | V-twin |
| Lubrication | Full pressure with replaceable filter, capacity, 2 U.S. qt 1.9 L |
| Type | Overhead valve |
| Battery | 12 V 300 CCA |
| Choke/speed control | Separate levers |
| Cooling method | Air |
| Fuel tank capacity | 4.5 U.S. gal. 17 L |
| Fuel gauge | Electric gauge and fuel level sight line |
| Dual hydros | Tuff Torq® TZT7-U with 1-in. (2.5-cm) axles |
| Reverse speed | 0-4 mph 0-6.4 km/h |
| Speed and direction control | Twin levers |
| Control adjustment | 2-height/9-fore-aft, 18 positions |
| Frame | Heavy-duty frame tubing |
| Primer/paint | E-coat/powder |
| Front caster bearings | Sealed ball bearings |
| Hour meter | Yes |
| Service interval decal | Yes |
| Storage compartment | Yes |
| Cup holder | Yes |
| Fore-aft adjustment | While seated, 3 in. 7.6 cm |
| Seat suspension | Two springs |
| Mower cut height | 1-4 in. 2.5-10.2 cm |
| Cut height increments | 0.25 in. 0.64 cm |
| Preset cut height | Yes |
| Mower deck material | 10 gauge 0.135 in. 3.4 mm |
| Mower drive system | V-belt |
| Drive | V-belt |
| Wheelbase | 49.2 in. 125 cm |
| Overall length | 76.9 in. 195.3 cm |
| Width without mower | 46.6 in. 118.4 cm |
Inventory moves fast. Call your nearest store to confirm this unit is still here and get the current price.
Yes. Send us the make, model, year and hours of your machine and we will apply the equity.
Often yes, through John Deere Financial and outside lenders depending on the machine. Subject to approved credit and to change.
Yes. We move equipment between all 17 of our Indiana and Ohio dealerships.
Tell us what you want to know about the John Deere Z515E.
