New
John Deere Z300 Mowers

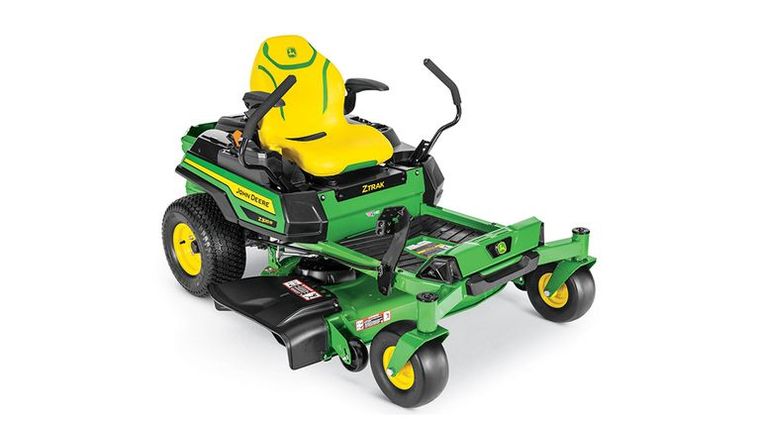

John Deere Z320R
Request price
Available through TRULAND Equipment
- Category
- John Deere Z300 Mowers
- Type
- John Deere Z300 Mowers
- Condition
- New
| Mode(s) of operation | Mower blade |
| Side discharging mode only | Side-discharge blade (shipped with mower) |
| Bagging mode only | Bagging blade (shipped with rear bagger chute) |
| Mulching mode only | Mulching blade (shipped with MulchControl) |
| Side discharge and mulching | Mulching blade (shipped with MulchControl) |
| Side discharge and bagging | Bagging blade (shipped with rear bagger chute) |
| Side discharge, mulching, and bagging | Mulching blade (shipped with MulchControl) |
| Engine power | 21.5 hp 16.0 kW |
| Engine model number | FR651V |
| Forward speed | 0-7 mph 0-11.3 km/h |
| Front caster tires | 11x6-5 |
| Drive tires | 18x8.5-8 |
| Seat back height | High back with armrests, 20 in. 51 cm |
| Width of cut | Accel Deep™ mower deck, 42 in. 107 cm |
| Mulching system | Optional MulchControl™ attachment |
| Power | 21.5 hp 16.0 kW |
| Model number | FR651V |
| Displacement | 44.3 cu in. 726 cc |
| Cylinders | V-twin |
| Lubrication | Full pressure with replaceable filter, capacity, 2.2 U.S. qt 2.1 L |
| Type | Overhead valve |
| Battery | 12 V 300 CCA |
| Choke/speed control | Separate levers |
| Cooling method | Air |
| Fuel tank capacity | 3.0 U.S. gal. 11.4 L |
| Fuel gauge | Translucent tank |
| Dual hydros | Hydro-Gear EZT-C with 1-in. (2.5-cm) axles |
| Reverse speed | 0-3.5 mph 0-5.6 km/h |
| Speed and direction control | Twin levers |
| Control adjustment | 3 height, 11 positions |
| Frame | Heavy-duty 2.5-in. x 2-in. (6-cm x 5-cm) front, and 1.5-in. x 2-in. (4-cm x 5-cm) side tubing |
| Primer/paint | E-coat/powder |
| Front caster bearings | Sealed ball bearings |
| Hour meter | Yes |
| Service interval decal | Yes |
| Storage compartment | Standard covered |
| Cup holder | Yes |
| Maximum towing capacity | 250 lb 113 kg |
| Fore-aft adjustment | 2.9 in. 7 cm |
| Seat suspension | Two springs |
| Mower cut height | 1.25-4.5 in. 3-11 cm |
| Cut height increments | 0.25 in. 0.64 cm |
| Preset cut height | Yes |
| Mower deck material | 12 gauge 0.105 in. 2.7 mm |
| Mower drive system | V-belt |
| Drive | V-belt |
| Wheelbase | 49.4 in. 1255 mm |
| Overall length | 75.4 in. 1915 mm |
Inventory moves fast. Call your nearest store to confirm this unit is still here and get the current price.
Yes. Send us the make, model, year and hours of your machine and we will apply the equity.
Often yes, through John Deere Financial and outside lenders depending on the machine. Subject to approved credit and to change.
Yes. We move equipment between all 17 of our Indiana and Ohio dealerships.
Tell us what you want to know about the John Deere Z320R.
