New
Traditional Utvs

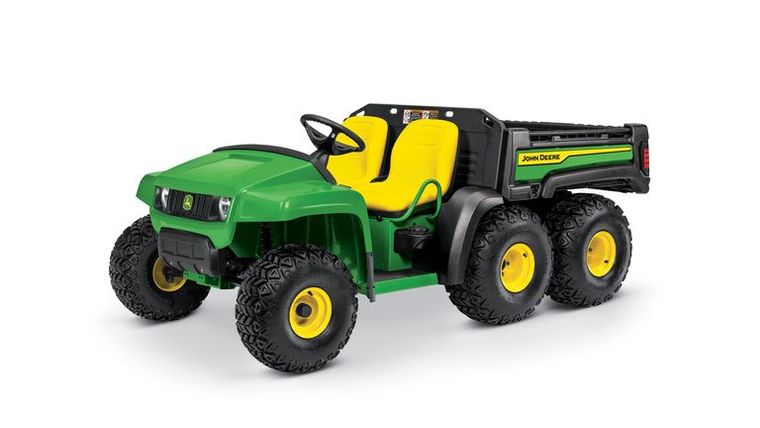

John Deere TH 6x4 Gas
Request price
Available through TRULAND Equipment
- Category
- Traditional Utvs
- Type
- Traditional Utvs
- Condition
- New
| Code | Description TX TX Turf TE TH |
| 5100 | Base comfort and convenience package -Deluxe cargo box with paint and reflectors -Manual cargo box lift Standard Standard Standard |
| 5105 | Select comfort and convenience package -Deluxe cargo box with spray-in liner and brake and taillights -Manual cargo box lift Upgrade option Upgrade option Upgrade option |
| Length | 1143 mm (45 in.) |
| Width | 1320 mm (52 in.) |
| Depth | 304 mm (11 in.) |
| Volume | 0.46 m 3 (16.4 cu ft) |
| Weight capacity TX and TX Turf | 272 kg (600 lb) |
| Weight capacity TE | 227 kg (500 lb) |
| Weight capacity TH gasoline | 454 kg (1000 lb) |
| Weight capacity TH diesel | 550 kg (1200 lb) |
| Dump angle | 43 degrees |
| Models | Location and status Speed Geofencing and curfews Engine hours Odometer Maintenance planner Machine Analyzer Tool Fuel level Fuel consumption Diagnostic trouble codes Service Advisor Remote |
| TS, TX, TX Turf, TH | X GPS X Key --- X X --- --- --- --- |
| GX Electric and GX Electric Crew | X GPS X Key --- X X --- --- --- --- |
| Model year 2018 to 2020 HPX 615E and 815E | X GPS X Key --- X X --- --- X --- |
| Model year 2021 and newer HPX 615E and 815E | X GPS X Sync --- X X --- --- X --- |
| XUV 560E, 560E S4, 590E, 590E S4, 590M and 590M S4 | X GPS X Key --- X X --- --- --- --- |
| Model year 2021 and newer XUV 825M S4 | X Sync X Sync X X X X --- X --- |
| Model year 2021 and newer XUV 855M S4 | X Sync X Sync X X X --- --- X --- |
| XUV 845M, 845R, 875M and 875R | X Sync X Sync X X X X --- X X |
| Generation 4 | Field-installed BUC11814 display and receiver integration kit Unable to connect Unable to connect Unable to connect BUC11879 cable BUC11874 switch |
| Factory-installed GreenStar ready | Never built** Never built** Included* BUC11874 switch |
| Factory-installed AutoTrac ready | Never built** Included* Included* BUC11874 switch |
| Generation 5 | Field-installed BUC11814 display and receiver integration kit Unable to connect Unable to connect Unable to connect BUC11879 cable |
| Gator Utility Vehicle model | Compatible model years Installation attachment** |
| TS, TX, TX Turf, TH Gas, and TH Diesel* | Model year 2018 and newer BUC11868 |
| HPX 615E and 815E | Model year 2018 and newer BUC11870 |
| XUV 560E, 560E S4, 590E, 590E S4, 590M, and 590M S4 | Model year 2018 and newer BUC11868 |
| XUV 825E, 825M, 825M S4, 855E, 855M, and 855M S4 | Model year 2018 and newer BUC11870 |
| XUV 835E, 835M, 835R, 865E, 865M, and 865R | Model year 2018 to 2024 BUC11871 |
| XUV 845M, 845R, 875M, and 875R* | Model year 2025 BUC11871 |
| Engine power | 11.6 kW 15.5 hp |
| Cargo box dimensions | 1143 x 305 x 1320 mm 45 x 12 x 52 in. |
| Cargo box capacity (weight) | 544 kg 1200 lb |
| Towing capacity | 635 kg 1400 lb |
| Front suspension | Independent spring-over-shock, single A-arm |
| Rear suspension | Two high-floatation, low pressure tires (solid axles) |
| Final drive | Fully enclosed; oil bath |
| Four wheel drive | All four rear wheels are driven, two front wheels are not driven |
| Fuel capacity | 18.9 L 5 U.S. gal. |
| Type | Four-cycle gas |
| Displacement | 675 cc 41.2 cu in. |
| Power | 11.6 kW 15.5 hp |
| Cooling system | Air |
| Transmission | Continuously Variable Transmission (CVT) |
| Traction assist | Mechanically activated differential lock |
| Descent control | No |
Inventory moves fast. Call your nearest store to confirm this unit is still here and get the current price.
Yes. Send us the make, model, year and hours of your machine and we will apply the equity.
Often yes, through John Deere Financial and outside lenders depending on the machine. Subject to approved credit and to change.
Yes. We move equipment between all 17 of our Indiana and Ohio dealerships.
Tell us what you want to know about the John Deere TH 6x4 Gas.
