New
Traditional Utvs

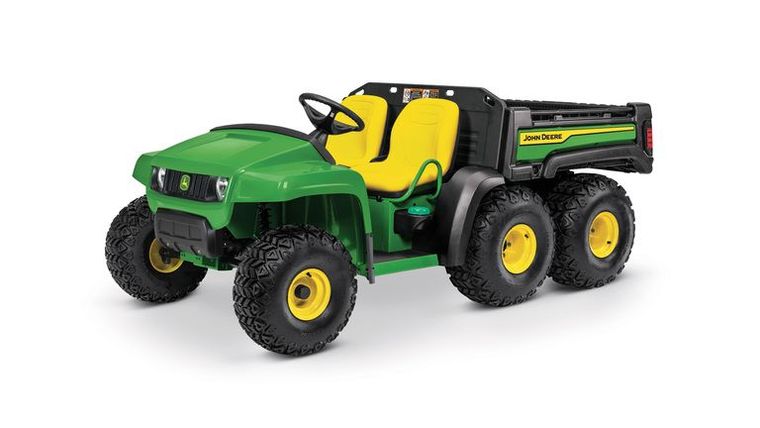

John Deere TH 6x4 Diesel
Request price
Available through TRULAND Equipment
- Category
- Traditional Utvs
- Type
- Traditional Utvs
- Condition
- New
| Engine power | 13.6 kW 18.2 hp |
| Cargo box dimensions | 1143 x 305 x 1320 mm 45 x 12 x 52 in. |
| Cargo box capacity (weight) | 544 kg 1200 lb |
| Towing capacity | 635 kg 1400 lb |
| Front suspension | Independent spring-over-shock, single A-arm |
| Rear suspension | Two high-floatation, low pressure tires (solid axles) |
| Final drive | Fully enclosed; oil bath |
| Four wheel drive | All four rear wheels are driven, two front wheels are not driven |
| Fuel capacity | 18.9 L 5 U.S. gal. |
| Type | 3-cylinder, four-cycle diesel |
| Displacement | 854 cc 52.1 cu in. |
| Power | 13.6 kW 18.2 hp |
| Cooling system | Liquid |
| Transmission | Continuously Variable Transmission (CVT) |
| Traction assist | Mechanically activated differential lock |
| Descent control | No |
| Front | Independent spring-over-shock, single A-arm |
| Rear | Two high-floatation, low pressure tires (solid axles) |
| Park brake | Wet disk, hand operated |
| Wheelbase | Front to rear: 2006 mm 79 in. Mid to rear: 680 mm 26.8 in. |
| Weight | Dry: 630 kg 1389 lb |
| Length | 2769 mm 109 in. |
| Width | 1525 mm 60 in. |
| Height | 1108 mm 43.6 in. |
| Tread centers | Front: 1270 mm 50 in. Rear: 1220 mm 48 in. |
| Ground clearance | 163 mm 6.4 in. |
| Payload capacity | 726 kg 1600 lb |
| Hitch | Optional: 3.175 cm 1.25 in. |
| Color | Green/yellow |
| Power steering | No |
| Battery / Alternator / Power port | Battery: 12 V 340 CCA Alternator: 40 amp DC outlet: 12 V |
| Instrumentation | Fuel gauge, hour meter |
| Storage | Cup holders, glove box |
| Seating | Bucket seats |
| Country of Manufacture | U.S. |
| Date collected | 8-Jun-22 |
