New
Traditional Utvs

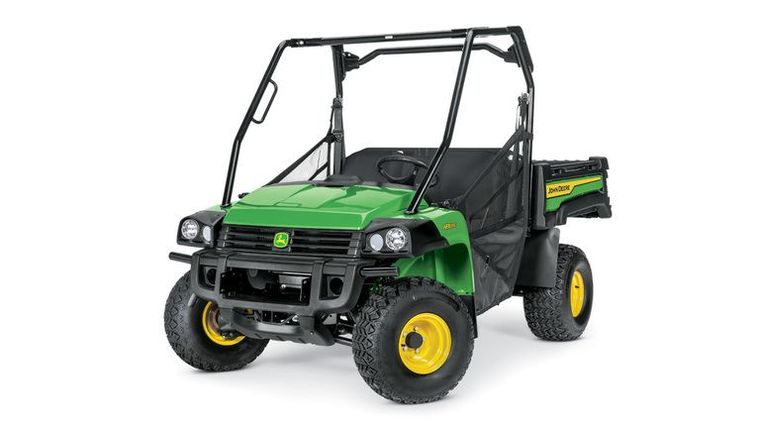

John Deere HPX815E
Request price
Available through TRULAND Equipment
- Category
- Traditional Utvs
- Type
- Traditional Utvs
- Condition
- New
| Engine power | 13.57* kW 18.2 hp |
| Cargo box dimensions | 1143 x 304.8 x 1320 mm 45 x 12 x 52 in. |
| Cargo box capacity (weight) | 454 kg 1000 lb |
| Towing capacity | 590 kg 1300 lb |
| Front suspension | Independent with McPherson Strut |
| Rear suspension | Coil over shock |
| Final drive | Two speed, oil bath |
| Four wheel drive | Yes |
| Fuel capacity | 20.1 L 5.3 U.S. gal. |
| Type | 3-cylinder, 4-cycle diesel |
| Displacement | 854 cc |
| Power | 13.57* kW 18.2 hp |
| Cooling system | Liquid |
| Transmission | Continuously Variable Transmission (CVT) |
| Traction assist | Positive locking, mechanically actuated (hand-operated) |
| Descent control | No |
| Front | Independent with McPherson Strut |
| Rear | Coil over shock |
| Park brake | Rear mechanical disk, hand operated |
| Wheelbase | 1910 mm 75.2 in. |
| Weight | 681 kg 1526 lb |
| Length | 3022 mm 119 in. |
| Width | 1486 mm 58.5 in. |
| Height | 1867 mm 73.5 in. |
| Tread centers | Front: 1257.3 mm 49.5 in. Rear: 1219.3 mm 48 in. |
| Ground clearance | 152.4 mm 6.0 in. |
| Payload capacity | 635 kg 1400 lb |
| Hitch | Standard receiver, 5.1 cm 2 in. |
| Color | Green/yellow |
| Power steering | No |
| Battery / Alternator / Power port | 480 CCA 40 amp at 3200 rpm |
| Storage | Cup holders, glove box |
| Seating | Bucket seats (bench available) |
| Country of Manufacture | U.S. |
