| Solution system - Capacity | 2300 L 600 gal. |
| Rinse tank capacity | 265 L 70 gal. |
| Boom length options/Material | 18/24.4 or 18/27.4 m 60/80 or 60/90 ft Boom material: Steel |
| Spray speed range | 0 to 32 km/h 0 to 20 mph |
| Transport speed, maximum | 43 km/h 27 mph |
| Suspension | Air bar/shock suspended |
| Crop clearance with standard tires | Narrow - 112 cm 44 in. Wide - 127 cm 50 in. |
| Rated engine power | 129 kW 173 hp |
| Emissions | Final Tier 4 |
| Number of cylinders | 4 |
| Displacement | 4.5 L 276 cu in. |
| Fuel tank capacity | 310 L 82 gal. |
| Diesel exhaust fluid (DEF) tank capacity | 17 L 4.5 gal. |
| Capacity | 2300 L 600 gal. |
| Tank material | Polyethylene |
| Quick fill size | 5.1 cm 2 in. |
| Automatic section control | John Deere Section Control (optional) |
| Solution system control | Manual |
| Fill location | Side fill |
| Chemical eductor | Stainless steel |
| Chemical eductor capacity (size) | 20 L 5.5 gal. |
| Flow meter size | 5.1 cm 2 in. |
| Suction strainer | 16 mesh |
| Pressure strainer | 50 mesh |
| Boom strainer | 80 mesh |
| Boom length options | 18/24.4 or 18/27.4 m 60/80 or 60/90 ft |
| Automatic boom height | BoomTrac Pro - 3 sensor (optional) |
| Plumbing material | Polypropylene |
| Boom Material | Steel |
| Ground height adjustment | 38 to 193 cm 15 to 76 in. |
| Breakaway width | 1.83 m 6 ft |
| Boom sections | Five or seven |
| Nozzle spacings | Not applicable |
| Type | Hydrostatic tandem Saur pumps Pump size is tandem - 75 cc 4.58 cu in. |
| Drive | Full-time four-wheel drive (4WD) |
| Shifting | Electrohydraulic (on the go) |
| Hydraulic reservoir capacity | 61 L 16 gal. |
| Dry compatible | No |
| Front tires | IF320/80R42, 380/R80R38, IF380/80R38, or 420/85R34 |
| Rear tires | IF320/80R42, 380/R80R38, IF380/80R38, or 420/85R34 |
| Hydraulic tread adjust | Manual standard Hydraulic optional (wide only) |
| Wheel tread spacing | Narrow - 183 to 224 cm 72 to 88 in. Wide - 229 to 305 cm 90 to 120 in. |
| Wheel base | 373 cm 147 in. |
| Turning radius | 4.9 m 16 ft |
| Parking brake | Hydraulic release |
| Primary brakes | Hydrostatic |
| Ladder raise/lower | Hydraulic |
| Total weight with 80-ft boom | 8,240 kg 18,165 lb |
Inventory moves fast. Call your nearest store to confirm this unit is still here and get the current price.
Yes. Send us the make, model, year and hours of your machine and we will apply the equity.
Often yes, through John Deere Financial and outside lenders depending on the machine. Subject to approved credit and to change.
Yes. We move equipment between all 17 of our Indiana and Ohio dealerships.

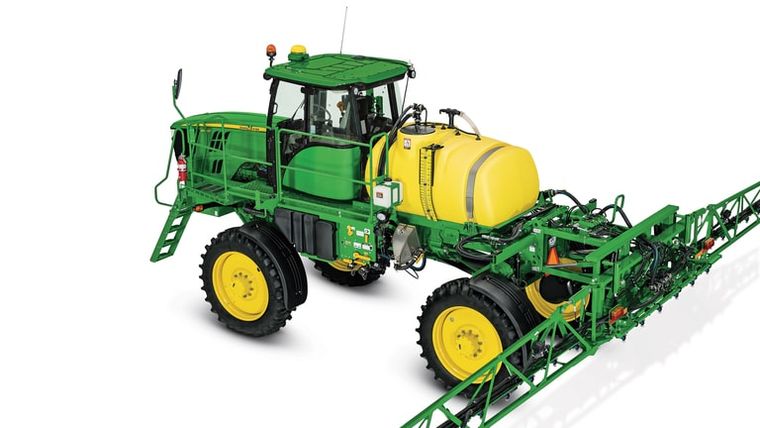

Tell us what you want to know about the John Deere R4023.
