| Rated engine power | 243 kW 326 hp |
| Maximum engine power | 266 kW 357 hp |
| Solution system - Capacity | 4542.5 L 1200 gal. |
| Rinse tank capacity | 646 L 170 gal. |
| Boom length options/Material | 27.4, 30.5, 36.6, or 40.2 m 90, 100, 120, or 132 ft Boom material: Steel or carbon fiber |
| Spray speed range | 0 to 40.2 km/h 0 to 25 mph |
| Transport speed, maximum | 56.3 km/h 35 mph |
| Suspension | Dual-strut independent wheel air-ride suspension |
| Crop clearance with standard tires | 152.4 cm 60 in. |
| Total weight (empty solution tank) | 15,125 kg 33,197 lb *Includes: 36.6-m (120-ft) steel boom, pressure recirculation, ExactApply™, and 38.1-cm (15-in.) spacing. Weight will vary depending on all options. |
| Emissions | Final Tier 4 (FT4) |
| Number of cylinders | Six |
| Displacement | 9.0 L 549 cu in. |
| Alternator | 250 amp |
| Fuel tank capacity | 565 L 149.2 gal. |
| Diesel exhaust fluid (DEF) tank capacity | 29.5 L 7.8 gal. |
| Capacity | 4542.5 L 1200 gal. |
| Tank material | Stainless steel |
| Quick fill size | 7.6 cm 3 in. |
| Automatic section control | John Deere Section Control (optional) |
| Solution system control | Manual Optional: Automatic |
| Fill location | Side fill, front fill (optional) |
| Chemical eductor | Stainless steel |
| Chemical eductor capacity (size) | 32 L 8.5 gal. |
| Flow meter size | 5.1 cm 2 in. |
| Suction strainer | 20 mesh |
| Pressure strainer | 50 mesh |
| Boom strainer | 80 mesh |
| Boom length options | 27.4, 30.5, 36.6, or 40.2 m 90, 100, 120, or 132 ft |
| Automatic boom height | BoomTrac Pro 2 - five sensor (optional) |
| Plumbing material | Stainless steel Optinal: Polyethylene |
| Boom Material | Steel or carbon fiber |
| Ground height adjustment | 50 to 245 cm 19.6 to 96.5 in. |
| Breakaway width | Stainless-steel boom: 3.3 m 10.8 ft Carbon fiber boom: 3.7 m 12.1 ft |
| Boom sections | 13 sections with boom length: 40.2 m 132 ft 11 sections with boom length: 36.6 m 120 ft 9 sections with boom length: 30.5 m 100 ft 7 sections with boom length: 27.4 m 90 ft |
| Nozzle spacings | 38.1 or 50.8 cm 15 or 20 in. |
| Type | Hydrostatic |
| Drive | Full-time four-wheel drive (4WD) |
| Shifting | Electrohydraulic |
| Hydraulic reservoir capacity | 98.4 L 26 gal. |
| Dry compatible | Yes: 5.7 m 3 200 cu ft |
| Front tires | 320/90 R46, 380/90 R46, or 420/80 R46 |
| Rear tires | 320/90 R46, 380/90 R46, or 420/80 R46 |
| Flotation tires | 520/85R38 or 620/70R38 (field installed only) |
| Hydraulic tread adjust | Standard |
| Wheel tread spacing | 305 to 406.4 cm 120 to 160 in. |
| Wheel base | 430 cm 169.3 in. |
| Turning radius | 8.7 m 28.5 ft |
Inventory moves fast. Call your nearest store to confirm this unit is still here and get the current price.
Yes. Send us the make, model, year and hours of your machine and we will apply the equity.
Often yes, through John Deere Financial and outside lenders depending on the machine. Subject to approved credit and to change.
Yes. We move equipment between all 17 of our Indiana and Ohio dealerships.

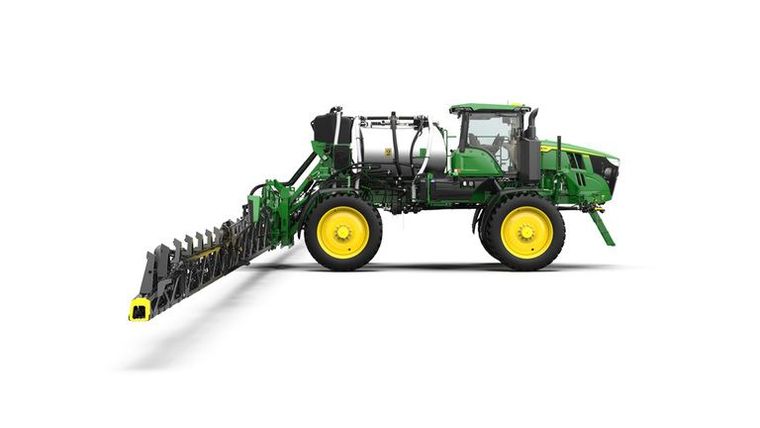

Tell us what you want to know about the John Deere 412R.
