Financing More John Deere Four Wheel Drive Tractors 390 640Hp
| Lighting | 18 halogen worklights 18 LED worklights 24 LED worklights and eight LED convenience lights* |
| Mirrors | Mechanical Electric and heated Electric, heated, and telescoping |
| Sunshades | Front Front, right-hand side, and rear Front, right-hand side, and rear |
| Wipers | Front and rear Front, right-hand side, and rear Front, right-hand side, and rear |
| Cameras | Camera ready Camera ready Integrated digital cameras |
| Rear window tint | À la carte option À la carte option À la carte option |
| Large tractor equipment | Precision Technology JDLink |
| Engine description | JD14 (B20 diesel compatible) |
| Engine displacement | 13.6 L 827 cu in. |
| Rated engine power | 397 kW 540 hp |
| Maximum engine power | 437 kW 594 hp |
| Rated PTO power (hp SAE) | 249 kW 335 hp |
| Transmission type | John Deere e18™ 18-speed PowerShift™ with Efficiency Manager™: 40 km/h 25 mph |
| Hydraulic pump rated output | Standard: 208 L/min 55 gpm Optional: 416 L/min 110 gpm |
| Rear hitch category (SAE designation) | Category 4N/N: 6804 kg 15,000 lb Category 4N/N: 9072 kg 20,000 lb |
| Base machine weight | Narrow undercarriage: 26,650 kg 57,343 lb Wide undercarriage: 25,546 kg 56,320 lb |
| Description | JD14 (B20 diesel compatible) |
| Engine type | In-line six, four valve |
| Engine family | MJDXL13.5334 |
| Rated speed | 2100 rpm |
| Aspiration | Single wastegated turbocharger with air-to-air aftercooling and cooled exhaust gas recirculation (EGR) |
| Cylinders liners | Wet-sleeve |
| Emission level | Final Tier 4 (FT4) |
| After treatment type | Diesel oxidation catalyst (DOC)/selective catalytic reduction (SCR) |
| Displacement | 13.6 L 827 cu in. |
| Rated power | 397 kW 540 hp |
| Power boost | 10 percent |
| Engine peak torque | At 1550 rpm: 2492 Nm 1838 lb-ft |
| PTO torque rise | 38 percent |
| Type | John Deere e18 18-speed PowerShift with Efficiency Manager: 40 km/h 25 mph |
| Pump rated output | Standard: 208 L/min 55 gpm Optional: 416 L/min 110 gpm |
| Available flow at a single rear SCV | 1.3-cm (1/2-in.) couplers: 132 L/min 35 gpm 1.9-cm (3/4-in.) couplers: 170 L/min 45 gpm |
| SCV control | Electronic |
| Hitch category (SAE designation) | Category 4N/4: 6804 kg 15,000 lb Category 4N/4: 9072 kg 20,000 lb |
| Maximum lift capacity behind lift points | Category 4N/4: 9072 kg 20,000 lb |
| Sensing type | Electrohydraulic with draft sensing |
| Drawbar category | Category 5 |
| Maximum vertical load | 5440 kg 12,000 lb |
| PTO actuation | Electrohydraulic |
| Final drive type | Bull gear and double idler with floating pinion |
| Rear differential lock | Full-locking electrohydraulic |
| Front axle differential lock | Full-locking electrohydraulic |
| Turning radius with brakes | With 76.2 cm (30 in.) track and 221 cm (87 in.) spacing: 6.42 m 21.1 ft |
| Tread spacing | Narrow undercarriage: 2032, 2235, or 3048 mm 80, 88, or 120 in. Wide undercarriage: 2218 or 3048 mm 87 or 120 in. |
| Track width | Standard: 762 mm 30 in. Optional: 457, 610, or 914 mm 18, 24, or 36 in. |
| Mid-rollers | Narrow undercarriage: Three Wide undercarriage: Two |
| Alternator size | Standard: 250 amp Optional: 330 amp |
| Battery options | 12 V |
Inventory moves fast. Call your nearest store to confirm this unit is still here and get the current price.
Yes. Send us the make, model, year and hours of your machine and we will apply the equity.
Often yes, through John Deere Financial and outside lenders depending on the machine. Subject to approved credit and to change.
Yes. We move equipment between all 17 of our Indiana and Ohio dealerships.

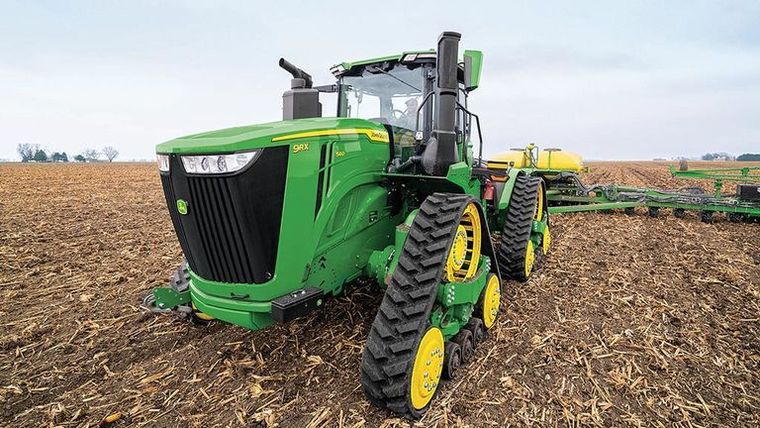

Tell us what you want to know about the John Deere 9RX 540.
