Financing More John Deere Four Wheel Drive Tractors 390 640Hp
| Engine description | JD18 (John Deere 18L) |
| Engine displacement | 18 L 1098 cu in. |
| Rated engine power | ECE-R120: 522 kW 710 PS (hp ISO) 700 hp (SAE) |
| Maximum engine power | ECE-R120: 574 kW 781 PS (hp ISO) 770 hp (SAE) |
| Rated PTO power (hp SAE) | 249 kW 335 hp Rated value listed occurs when tractor is stationary |
| Transmission type | John Deere e21 21-speed PowerShift; 21F, 11R with Efficiency Manager: 40 km/h 25 mph |
| Hydraulic pump rated output | Single: 212 L/min 56 gpm Dual: 424 L/min 112 gpm Triple: 636 L/min 168 gpm |
| Base machine weight | 33,500 kg 74,000 lb |
| Description | JD18 (John Deere 18L) |
| Engine type | In-line six, six-cylinder |
| Rated speed | 1900 rpm |
| Aspiration | Dual turbochargers in series; Primary fixed displacement turbocharger and secondary wastegated turbocharger, air-to-air aftercooling, and cooled exhaust gas recirculation (EGR) |
| Cylinders liners | Wet-sleeve |
| Emission level | Final Tier 4 (FT4) / Stage V Compliant Diesel Engine |
| After treatment type | Exhaust Gas Recirculation (EGR) - No Diesel Exhaust Fluid (DEF) used |
| Displacement | 18 L 1098 cu in. |
| Rated power | ECE-R120: 522 kW 710 PS (hp ISO) 700 hp (SAE) |
| Intelligent Power Management (IPM) | 40 hp at rated engine RPM |
| Power boost | 10 percent |
| Engine peak torque | At 1400 rpm: 3622 Nm 2671 lb-ft |
| PTO torque rise | 38 percent at 1400 rpm |
| Type | John Deere e21 21-speed PowerShift; 21F, 11R with Efficiency Manager: 40 km/h 25 mph |
| Pump rated output | Single: 212 L/min 56 gpm Dual: 424 L/min 112 gpm Triple: 636 L/min 168 gpm |
| Available flow at a single rear SCV | 1.3-cm (1/2 in.) couplers: 140 L/min 35 gpm 1.9-cm (3/4-in.) couplers: 180 L/min 44 gpm |
| SCV control | Electronic |
| Drawbar category | Category 5 |
| Maximum vertical load | 8618 kg 19,000 lb |
| PTO actuation | Electrohydraulic |
| Final drive type | Outboard planetary with three planetary gears |
| Rear differential lock | Full-locking electrohydraulic |
| Front axle differential lock | Full-locking electrohydraulic |
| Turning radius with brakes | Turning radius calculated off rear axle centerline 679.5 cm 22.3 ft |
| Tread spacing | Only compatible with 762 mm (30 in.) tracks: 2235 mm 88 in. Optional: 3048 mm 120 in. |
| Drive type | Camso ® Ag 3500 or 6500 Tracks |
| Track width | Standard: 762 mm 30 in. Optional - only compatible with 3048 mm (120 in.) spacing: 914 mm 36 in. |
| Mid-rollers | Three |
| Alternator size | 330 amp |
| Battery options | 12 V |
| Working lights | Standard: 18 halogen Optional: 20 or 24 light-emitting diode (LED) |
| Type of bulb in headlight (Halogen, Zenon, LED) | Select Visibility: Halogen: 65 W Premium and Ultimate Visibility: LED |
| Total cold cranking amps | 5 x 950 CCA Total: 4750 CCA |
| Cab suspension | Standard |
| Instructional seat | Standard |
| Display | Standard: G5 Plus CommandCenterâ„¢: 32.5 cm 12.8 in. |
| Radio | Varies by comfort and convenience package |
| Inner cab volume | 3.37 m 3 119 cu ft |
| Cab glass area | 6.86 m 2 73.81 sq ft |
| Wheelbase | Distance from the center of the front drive sprocket to the center of the rear drive sprocket: 4620 mm 15.2 ft |
Inventory moves fast. Call your nearest store to confirm this unit is still here and get the current price.
Yes. Send us the make, model, year and hours of your machine and we will apply the equity.
Often yes, through John Deere Financial and outside lenders depending on the machine. Subject to approved credit and to change.
Yes. We move equipment between all 17 of our Indiana and Ohio dealerships.

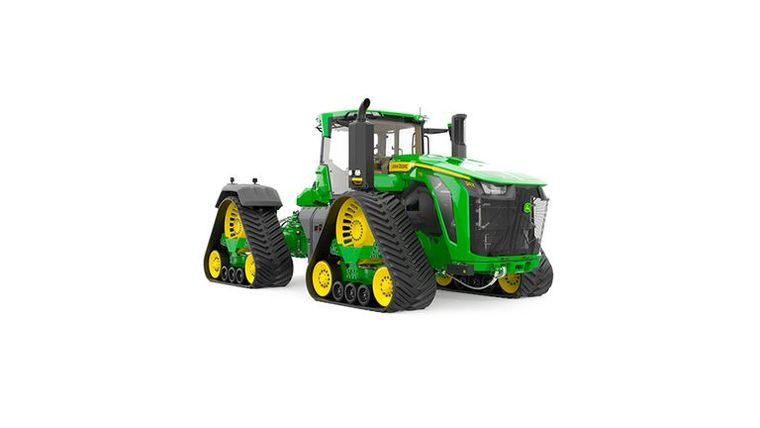

Tell us what you want to know about the John Deere 9RX 710.
