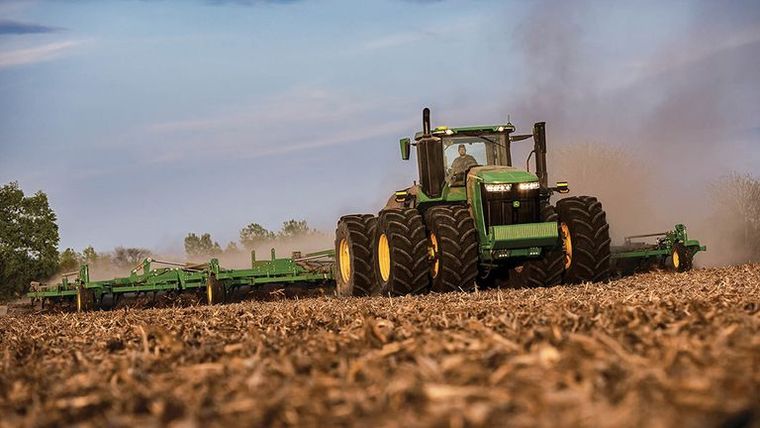

Financing More John Deere Four Wheel Drive Tractors 390 640Hp
| Engine description | JD14 (B20 diesel compatible) |
| Engine displacement | 13.6 L 827 cu in. |
| Rated engine power | ECE-R120: 360 kW 490 PS (hp ISO) 483 hp (SAE) |
| Maximum engine power | ECE-R120: 396 kW 539 PS (hp ISO) 532 hp (SAE) |
| Rated PTO power (hp SAE) | 249 kW 335 hp |
| Transmission type | John Deere e18™ 18-speed PowerShift™ with Efficiency Manager™: 40 km/h 25 mph |
| Hydraulic pump rated output | Standard: 208 L/min 55 gpm Optional: 416 L/min 110 gpm |
| Rear hitch category (SAE designation) | Category 4N: 6804 kg 15,000 lb Category 4N: 9072 kg 20,000 lb Category 4N/4: 6804 kg Category 4N/4: 9072 kg |
| Base machine weight | 18,482 kg 40,660 lb |
| Description | JD14 (B20 diesel compatible) |
| Engine type | In-line six, four valve |
| Engine family | MJDXL13.5334 |
| Rated speed | 2100 rpm |
| Aspiration | Single wastegated turbocharger with air-to-air aftercooling and cooled exhaust gas recirculation (EGR) |
| Cylinders liners | Wet-sleeve |
| Emission level | Final Tier 4 (FT4) |
| After treatment type | Diesel oxidation catalyst (DOC)/selective catalytic reduction (SCR) |
| Displacement | 13.6 L 827 cu in. |
| Rated power | ECE-R120: 360 kW 490 PS (hp ISO) 483 hp (SAE) |
| Power boost | 10 percent |
| Engine peak torque | At 1550 rpm: 2262 Nm 1668 lb-ft |
| PTO torque rise | 38 percent |
| Type | John Deere e18 18-speed PowerShift with Efficiency Manager: 40 km/h 25 mph |
| Pump rated output | Standard: 208 L/min 55 gpm Optional: 416 L/min 110 gpm |
| Available flow at a single rear SCV | 1.3-cm (1/2-in.) couplers: 132 L/min 35 gpm 1.9-cm (3/4-in.) couplers: 170 L/min 45 gpm |
| SCV control | Electronic |
| Hitch category (SAE designation) | Category 4N: 6804 kg 15,000 lb Category 4N: 9072 kg 20,000 lb Category 4N/4: 6804 kg Category 4N/4: 9072 kg |
| Maximum lift capacity behind lift points | Category 4N/4: 9072 kg 20,000 lb |
| Sensing type | Electrohydraulic with draft sensing |
| Drawbar category | Category 5 |
| Maximum vertical load | 5440 kg 12,000 lb |
| PTO actuation | Electrohydraulic |
| Final drive type | Inboard planetary with double-reduction axle |
| Rear differential lock | Full-locking electrohydraulic |
| Front axle differential lock | Full-locking electrohydraulic |
| Turning radius with brakes | Group 48 tires: 6.099 m 20 ft |
| Alternator size | Standard: 250 amp Optional: 330 amp |
| Battery options | 12 V |
| Working lights | Standard: 18 halogen Optional: 18 or 24 LED plus 8 LED convenience lights |
| Type of bulb in headlight (Halogen, Zenon, LED) | Standard: halogen, 65 W Optional: LED |
| Total cold cranking amps | 3 x 925 CCA Total: 2775 CCA |
| Seat | Degree of seat swivel, left hand 25 degree (angle) Degree of seat swivel, right hand 40 degree (angle) Standard: air suspension Optional: ActiveSeat™ II |
| Instructional seat | Standard |
| Display | Standard: G5 Plus CommandCenter™: 32.5 cm 12.8 in. |
| Radio | Standard: AM/FM stereo with weatherband, remote controls, auxiliary input jack, four speakers and external antenna Optional: Touchscreen radio |
| Inner cab volume | 3.27 m 3 115 cu ft |
| Cab glass area | 6.64 m 2 71.47 sq ft |
| Wheelbase | 3912 mm 154 in. |
Inventory moves fast. Call your nearest store to confirm this unit is still here and get the current price.
Yes. Send us the make, model, year and hours of your machine and we will apply the equity.
Often yes, through John Deere Financial and outside lenders depending on the machine. Subject to approved credit and to change.
Yes. We move equipment between all 17 of our Indiana and Ohio dealerships.
Tell us what you want to know about the John Deere 9R 490.
