| Engine description | OOS: John Deere PowerTech™ 4045 PWL Cab: John Deere PowerTech™ 4045 PWS |
| Engine displacement | 4 cylinders: 4.5 L 276 cu in. |
| Rated engine power | At 2200 rpm: 99.7 kW 130 hp |
| Maximum engine power | 99.7 kW 135.5 hp |
| Rated PTO power (hp SAE) | At 2100 rpm: 84.5 kW 115 hp |
| Transmission type | OOS: Standard: PowrQuad™ PLUS 16F/16R Optional: Powr8™ 32F/16R Cab: Standard: PowrQuad™ PLUS 16F/16R Optional: Powr8™ 32F/16R with creeper |
| Hydraulic pump rated output | 117 L/min 31 gpm |
| Rear hitch category (SAE designation) | Category 2 |
| Description | OOS: John Deere PowerTech™ 4045 PWL Cab: John Deere PowerTech™ 4045 PWS |
| Engine type | 4045HLV81 |
| Engine family | NJDXL06.8309 |
| Rated speed | 2200 rpm |
| Aspiration | Turbocharged |
| Cylinders liners | Wet sleeved |
| Emission level | Final Tier 4 |
| After treatment type | OOS: ERG/DOC/SCR Cab: EGR/DOC/DPF/SCR |
| Displacement | 4 cylinders: 4.5 L 276 cu in. |
| Rated power | At 2200 rpm: 95.8 kW 130 hp |
| Power boost | At 1900 rpm: 4 percent |
| Engine peak torque | At 1600 rpm: 541 Nm 399 lb-ft |
| PTO torque rise | At 1600 rpm: 30 percent |
| Type | OOS: Standard: PowrQuad™ PLUS 16F/16R Optional: Powr8™ 32F/16R Cab: Standard: PowrQuad™ PLUS 16F/16R Optional: Powr8™ 32F/16R with creeper |
| Reverser | Yes |
| Clutch; wet/dry | Wet |
| Creeper | Cab: Powr8™ 32F/16R with creeper |
| Pump rated output | 117 L/min 31 gpm |
| Available flow at a single rear SCV | 100 L/min 26.4 gpm |
| Number of rear selective control valves (SCVs) | Three |
| Number of mid selective control valves (SCVs) | Standard: Zero Optional: Up to Three |
| Joystick SCV control | OOS: Mechanical Cab: Rear SCVs: Mechanical Mid-SCVs: Electrohydraulic |
| Hitch draft control load sense type | Electrohydraulic |
| Remote control valves available | Three |
| Hitch category (SAE designation) | Category 2; convertible to 1 |
| Maximum lift capacity behind lift points | OOS: Standard: 3164 kg 6975 lb Optional: 3569 kg 7868 lb Cab: Standard: 2720 kg 5996 lb Optional: 3122 kg 6883 lb |
| Sensing type | Top link |
| Rear axle differential lock | Electrohydraulic |
| Drawbar category | Category 2 |
| Maximum vertical load | Road/field use (250-mm extended): 1450 kg 3197 lb Field use (350-mm extended): 1200 kg 2646 lb Field use (400-mm extended): 1200 kg |
| Engine rpm (at rated PTO speeds) | 540 at 2100 rpm 540E at 1645 rpm 1000 at 2100 rpm |
| PTO actuation | Electrohydraulic |
| Category | Cab: Category 2 |
| Standard lift capacity | Cab: 1780 kg (3924 lbs) |
| Front power take-off (PTO) | Cab: 1000 rpm (21 spline) 34.9 mm (1.375 in.) |
| PTO speed | Cab: 1000 at 2200 rpm |
| Final drive type | Inboard planetary |
| Differential controls | Electrohydraulic |
| Brakes, type and control | Hydraulic wet disc |
| Rear | 19.5L-24 in. R4 Bias |
Inventory moves fast. Call your nearest store to confirm this unit is still here and get the current price.
Yes. Send us the make, model, year and hours of your machine and we will apply the equity.
Often yes, through John Deere Financial and outside lenders depending on the machine. Subject to approved credit and to change.
Yes. We move equipment between all 17 of our Indiana and Ohio dealerships.

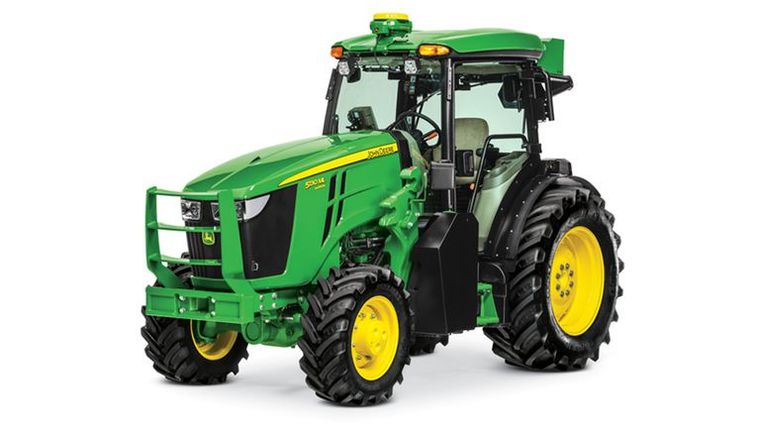

Tell us what you want to know about the John Deere 5130ML.
