| Engine description | OOS: John Deere PowerTech™ 4045 PWL Cab: John Deere PowerTech™ 4045 PWS |
| Engine displacement | 4 cylinders: 4.5 L 276 cu in. |
| Rated engine power | At 2200 rpm: 92 kW 120 hp |
| Maximum engine power | 92 kW 125 hp |
| Rated PTO power (hp SAE) | At 2100 rpm: 77.2 kW 105 hp |
| Transmission type | OOS: Standard: PowrReverser™ 16F/16R Optional: PowrQuad™ PLUS 16F/16R Powr8™ 32F/16R Cab: Standard: PowrQuad™ PLUS 16F/16R Optional: Powr8™ 32F/16R with creeper |
| Hydraulic pump rated output | OOS: Standard: 94 L/min 24.7 gpm Optional: 117 L/min 31 gpm Cab: 117 L/min 31 gpm |
| Rear hitch category (SAE designation) | Category 2 |
| Description | OOS: John Deere PowerTech™ 4045 PWL Cab: John Deere PowerTech™ 4045 PWS |
| Engine type | 4045HLV81 |
| Engine family | NJDXL06.8309 |
| Rated speed | 2200 rpm |
| Aspiration | Turbocharged |
| Cylinders liners | Wet sleeved |
| Emission level | Final Tier 4 |
| After treatment type | OOS: ERG/DOC/SCR Cab: EGR/DOC/DPF/SC |
| Displacement | 4 cylinders: 4.5 L 276 cu in. |
| Rated power | At 2200 rpm: 92 kW 120 hp |
| Power boost | At 1900 rpm: 4 percent |
| Engine peak torque | At 1600 rpm: 500 Nm 369 lb-ft |
| PTO torque rise | At 1600 rpm: 30 percent |
| Type | OOS: Standard: PowrReverser™ 16F/16R Optional: PowrQuad™ PLUS 16F/16R Powr8™ 32F/16R Cab: Standard: PowrQuad™ PLUS 16F/16R Optional: Powr8™ 32F/16R with creeper |
| Reverser | Yes |
| Clutch; wet/dry | Wet |
| Creeper | Cab: Powr8™ 32F/16R with creeper |
| Pump rated output | OOS: Standard: 94 L/min 24.7 gpm Optional: 117 L/min 31 gpm Cab: 117 L/min 31 gpm |
| Available flow at a single rear SCV | OOS: Standard: 70 L/min 18.4 gpm Optional: 100 L/min 26.4 gpm Cab: 100 L/min 26.4 gpm |
| Number of rear selective control valves (SCVs) | Three |
| Number of mid selective control valves (SCVs) | Standard: Zero Optional: Up to Three |
| Joystick SCV control | OOS: Mechanical Cab: Rear SCVs: Mechanical Mid-SCVs: Electrohydraulic |
| Hitch draft control load sense type | OOS: Standard: Mechanical Optional: Electrohydraulic Cab: Electrohydraulic |
| Remote control valves available | Three |
| Hitch category (SAE designation) | Category 2; convertible to 1 |
| Sensing type | Top link |
| Rear axle differential lock | Electrohydraulic |
| Drawbar category | Category 2 |
| Maximum vertical load | Road/field use (250-mm extended): 1450 kg 3197 lb Field use (350-mm extended): 1200 kg 2646 lb Field use (400-mm extended): 1200 kg 2646 lb |
| Engine rpm (at rated PTO speeds) | 540 at 2100 rpm 540E at 1645 rpm 1000 at 2100 rpm |
| PTO actuation | Electrohydraulic |
| Category | Cab: Category 2 |
| Standard lift capacity | Cab: 1780 kg (3924 lbs) |
| Front power take-off (PTO) | Cab: 1000 rpm (21 spline) 34.9 mm (1.375 in.) |
| PTO speed | Cab: 1000 at 2200 rpm |
| Final drive type | Inboard planetary |
| Differential controls | Electrohydraulic |
| Brakes, type and control | Hydraulic wet disc |
| Rear | 19.5L - 24 in. 10PR R4 Bias |
| Wheel tread range | Front: 1299-1997 mm 51.1-78.6 in. |
Inventory moves fast. Call your nearest store to confirm this unit is still here and get the current price.
Yes. Send us the make, model, year and hours of your machine and we will apply the equity.
Often yes, through John Deere Financial and outside lenders depending on the machine. Subject to approved credit and to change.
Yes. We move equipment between all 17 of our Indiana and Ohio dealerships.

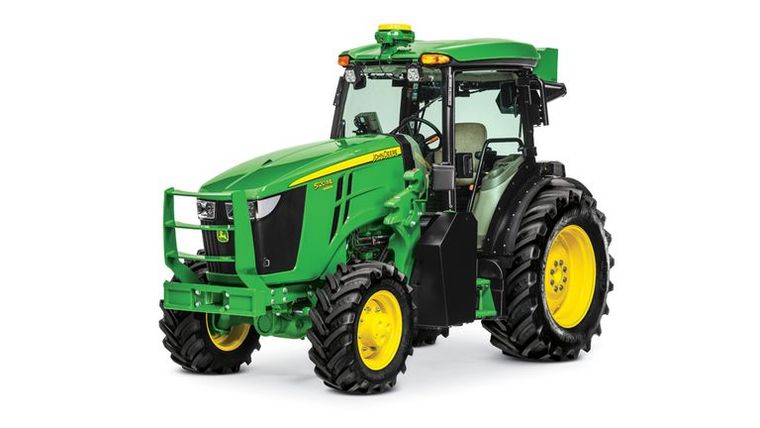

Tell us what you want to know about the John Deere 5120ML.
