| Engine description | John Deere PowerTech™ 4045 PWL |
| Engine displacement | 4 cylinders: 4.5 L 276 cu in. |
| Rated engine power | At 2400 rpm: 67.1 kW 90 hp |
| Maximum engine power | 68.6 kW 92 hp |
| Rated PTO power (hp SAE) | At 2400 rpm: 56.0 kW 75 hp |
| Transmission type | Standard: PowrReverser™ 12F/12R Optional: PowrReverser™ Hi-Lo 24F/12R |
| Hydraulic pump rated output | 85.1 L/min 22.5 gpm |
| Rear hitch category (SAE designation) | Category 2 |
| Description | John Deere PowerTech 4045 PWL |
| Engine type | 4045HLV76 |
| Engine family | NJDXL04.5315 |
| Rated speed | 2400 rpm |
| Aspiration | Turbocharged and Aftercooled |
| Cylinders liners | Wet sleeved |
| Emission level | Final Tier 4 |
| After treatment type | DOC/SCR |
| Displacement | 4 cylinders: 4.5 L 276 cu in. |
| Rated power | At 2400 rpm: 67.1 kW 90 hp |
| Power boost | At 2200 rpm: 2 percent |
| Engine peak torque | At 1600 rpm: 347 Nm 255 lb-ft |
| Type | Standard: PowrReverser™ 12F/12R Optional: PowrReverser™ Hi-Lo 24F/12R |
| Reverser | Yes |
| Clutch; wet/dry | Wet |
| Creeper | Not available |
| Pump rated output | 85.1 L/min 22.5 gpm |
| Available flow at a single rear SCV | 60.1 L/min 15.9 gpm |
| Number of rear selective control valves (SCVs) | Standard: Two Optional: Three |
| Number of mid selective control valves (SCVs) | Standard: Zero Optional: Up to Three |
| Joystick SCV control | Mechanical |
| Hitch draft control load sense type | Mechanical |
| Remote control valves available | Standard: Two Optional: Three |
| Hitch category (SAE designation) | Category 2; convertible to 1 |
| Maximum lift capacity behind lift points | Standard: 2100 kg 4600 lb |
| Sensing type | Top link |
| Drawbar category | Category 2 |
| Maximum vertical load | Road/field use (250-mm extended): 1450 kg 3197 lb Field use (350-mm extended): 1200 kg 2646 lb Field use (400-mm extended): 1200 kg |
| Engine rpm (at rated PTO speeds) | 540 at 2400 rpm 540E at 1716 rpm 1000 at 2400 rpm |
| PTO actuation | Electrohydraulic |
| Final drive type | Inboard planetary |
| Differential controls | Mechanical (pedal) |
| Brakes, type and control | Hydraulic wet disc |
| Rear | MFWD: 18.4-30 R1 Bias |
| Wheel tread range | MFWD: front: 1340-1904 mm 52.8-75.0 in. |
| Turning radius with brakes | MFWD: 4.36 m 14.3 ft |
| Turning radius without brakes | MFWD: 3.54 m 11.6 ft |
| Alternator size | OOS: 90 amp Cab: 120 amp |
| Battery options | 12 V |
| Working lights | Halogen |
Inventory moves fast. Call your nearest store to confirm this unit is still here and get the current price.
Yes. Send us the make, model, year and hours of your machine and we will apply the equity.
Often yes, through John Deere Financial and outside lenders depending on the machine. Subject to approved credit and to change.
Yes. We move equipment between all 17 of our Indiana and Ohio dealerships.

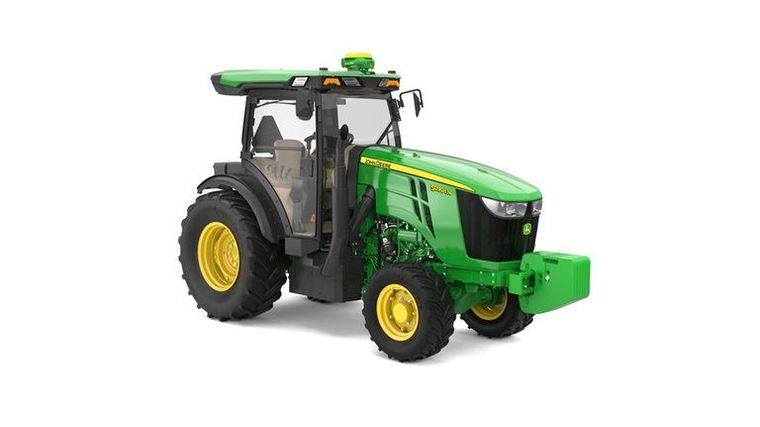

Tell us what you want to know about the John Deere 5090EN.
