| Engine description | John Deere PowerTech™ 3029 EWX |
| Engine displacement | 3 cylinders: 2.9 L 179 cu in. |
| Rated engine power | At 2100 rpm: 55 kW 75 hp |
| Maximum engine power | 55 kW 75 hp |
| Rated PTO power (hp SAE) | At 2100 rpm: OOS 45 kW (60.3 hp) Cab 43 kW (57.6 hp) |
| Transmission type | Standard: PowrReverser™ 12F/12R Optional: PowrReverser™ 24F/12R |
| Hydraulic pump rated output | 68.8 L/min 18.2 gpm |
| Rear hitch category (SAE designation) | Category 2N; convertible to 2 & 1 |
| Description | John Deere PowerTech™ 3029 EWX |
| Engine type | 3029HPY110 |
| Engine family | NJDXL02.9339 |
| Rated speed | 2100 rpm |
| Aspiration | Turbocharged |
| Cylinders liners | Wet sleeved |
| Emission level | Final Tier 4 |
| After treatment type | DOC/DPF |
| Displacement | 3 cylinders: 2.9 L 179 cu in. |
| Rated power | At 2100 rpm: 55 kW 75 hp |
| Power boost | 0 percent |
| Engine peak torque | At 1500 rpm: 304 Nm 224 lb-ft |
| PTO torque rise | 21 percent |
| Type | Standard: PowrReverser™ 12F/12R Optional: PowrReverser™ 24F/12R |
| Reverser | Yes |
| Clutch; wet/dry | Wet |
| Creeper | Optional |
| Pump rated output | 68.8 L/min 18.2 gpm |
| Available flow at a single rear SCV | 43.4 L/min 11.5 gpm |
| Number of rear selective control valves (SCVs) | Standard: Two Optional: Three |
| Number of mid selective control valves (SCVs) | Standard: Zero Optional: Up to Two |
| Joystick SCV control | Mechanical |
| Hitch draft control load sense type | Electrohydraulic |
| Remote control valves available | Standard: Two |
| Hitch category (SAE designation) | Category 2N; convertible to 2 & 1 |
| Maximum lift capacity behind lift points | 1390 kg 3604 lb |
| Sensing type | Top link |
| Maximum vertical load | Road/field use (short position): 1120 kg 2470 lb Field use (fully extended): 760 kg 1675 lb |
| Engine rpm (at rated PTO speeds) | 540 at 2100 rpm 540E at 1588 rpm |
| PTO actuation | Electrohydraulic |
| Final drive type | Planetary |
| Differential controls | Mechanical (pedal) |
| Brakes, type and control | Hydraulic wet disc |
| Rear | 14.9-24 In. 8PR R1 Bias |
| Turning radius with brakes | 3.2 m 10.5 ft |
| Turning radius without brakes | 4.65 m 15.3 ft |
| Alternator size | OOS: 70 amp Cab: 110 amp |
| Battery options | 12 V |
| Working lights | Standard: Halogen Optional: LED |
| Type of bulb in headlight (Halogen, Zenon, LED) | Standard: Halogen Optional: LED |
Inventory moves fast. Call your nearest store to confirm this unit is still here and get the current price.
Yes. Send us the make, model, year and hours of your machine and we will apply the equity.
Often yes, through John Deere Financial and outside lenders depending on the machine. Subject to approved credit and to change.
Yes. We move equipment between all 17 of our Indiana and Ohio dealerships.

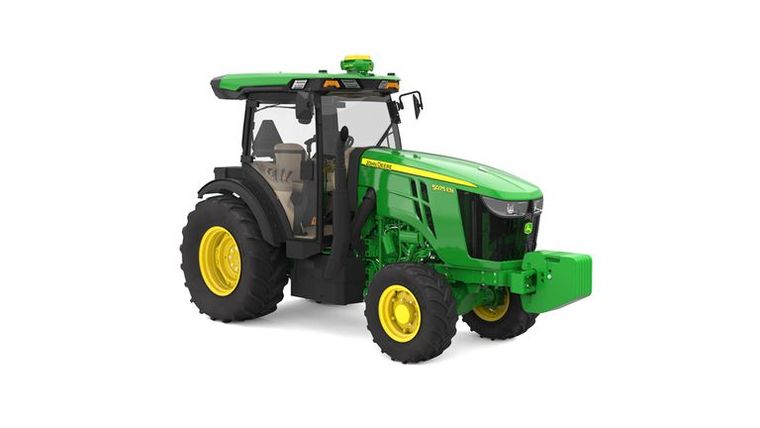

Tell us what you want to know about the John Deere 5075EN.
