New
4 Family 43 75Hp

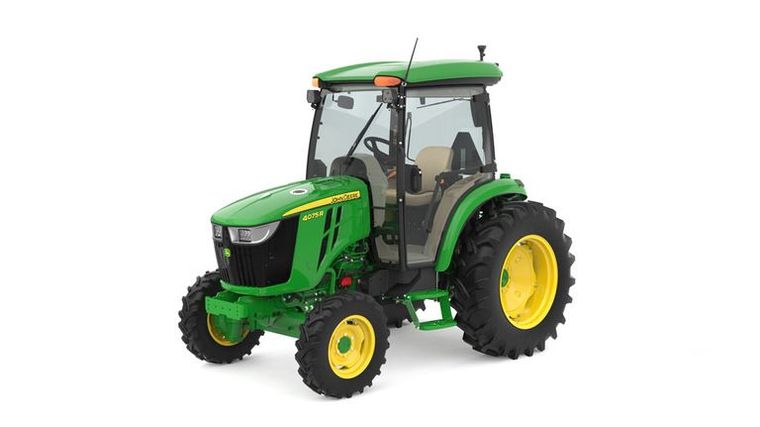

John Deere 4075R
Request price
Available through TRULAND Equipment
- Category
- 4 Family 43 75Hp
- Type
- 4 Family 43 75Hp
- Condition
- New
| Engine power (gross) | SAE J1995 rated power: 55.6 kW 74.6 hp 75.6 PS at 2600 rpm |
| Power take-off (PTO) power | eHydro™ transmission: 44.7 kW 60 hp Per SAE J1995 |
| Steering hydraulics | 23.5 L/min 6.2 gpm |
| Implement hydraulics | 42.3 L/min 11.2 gpm |
| Hitch type | Category 1 |
| Lift capacity, 24-in. behind link arms | 1229 kg 2709 lb |
| Standard transmission; forward/reverse | eHydro Transmission (eHST) |
| Cruise control | Standard |
| Approximate shipping weight (open-station; cab) | Cab - 2120 kg 4675 lb |
| Wheelbase | 1850 mm 73 in. |
| Family | EYDXL2.09HDA FYDXL2.09HDA GYDXL2.09HDA |
| Manufacturer | Yanmar |
| Engine model | 4TNV86CHT-MJT |
| Rated engine speed | 2600 rpm |
| Type | Diesel |
| Injection pump type | Direct Injection |
| Aspiration | Turbocharged and Intercooled |
| Emissions compliance | Final Tier 4 |
| Cylinders/displacement | 4 / 2.091 L 4 / 127.6 cu in. |
| Number of cylinders | Four |
| Cylinder liners | Cast-in-block |
| Bore and stroke | 86 x 90 mm 3.4 x 3.54 in. |
| Compression ratio | 17.3:1 |
| Lubrication | Pressurized |
| Cooling system | Liquid |
| Air cleaner | Dry Type with Electronic Restriction Indicator |
| Engine torque at rated speed | 205 Nm |
| Fuel tank capacity | 55.58 L 14.7 U.S. gal. |
| Battery size | 770 CCA |
| Alternator (12-V) | 75 amp |
| Starter size | 2 kW 2.68 hp |
| Optional transmission; forward/reverse | No |
| Left-hand reverser | No |
| Transmission gear ranges | eHydro - Infinitely-variable 3 range |
| Final drive | Planetary |
| Brakes | Multi-plate wet disc |
| Steering | Hydrostatic power steering |
| Axle capacity | Front 1600 kg 3528 lb Rear 2400 kg 5292 lb |
| Creeper | SpeedMatch standard |
| Differential lock | Yes |
| Pump rated output | Steering 23.5 L/min 6.2 gpm Implement 42.3 L/min 11.2 gpm 65.8 L/min 17.4 gpm |
| Pump type | Single |
| Draft control sensing | Position control |
| Remote control valves available | Up to six rear remotes |
| Standard | Independent 540 rpm at 2600 rpm |
| Optional | 540E rpm |
| Control | Independent |
| Clutch | Wet disc |
