New
4 Family 43 75Hp

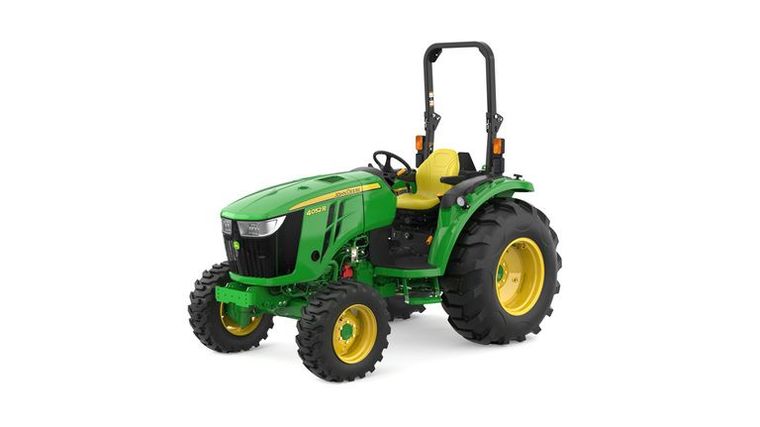

John Deere 4052R
Request price
Available through TRULAND Equipment
- Category
- 4 Family 43 75Hp
- Type
- 4 Family 43 75Hp
- Condition
- New
| Engine power (gross) | SAE J1995 rated power: 37.9 kW 50.8 hp 51.5 PS at 2600 rpm |
| Power take-off (PTO) power | PowrReverser™ transmission: 30.5 kW 40.8 hp eHydro™ transmission: 29.2 kW 39.1 hp |
| Steering hydraulics | 23.5 L/min 6.2 gpm |
| Implement hydraulics | 42.3 L/min 11.2 gpm |
| Hitch type | Category 1 |
| Lift capacity, 24-in. behind link arms | 1135 kg 2500 lb |
| Standard transmission; forward/reverse | eHydro Transmission (eHST) |
| Cruise control | Standard |
| Approximate shipping weight (open-station; cab) | Open operator station (OOS) - 1710 kg 3770 lb Cab - 2120 kg 4675 lb |
| Wheelbase | 185.5 cm 73 in. |
| Family | EYDXL2.09TDA FYDXL2.09TDA GYDXL2.09TDA |
| Manufacturer | Yanmar |
| Engine model | 4TNV86CT-MJT |
| Rated engine speed | 2600 rpm |
| Type | Diesel |
| Injection pump type | High pressure common rail direct injection |
| Aspiration | Turbocharged |
| Emissions compliance | Final Tier 4 |
| Cylinders/displacement | 4 / 2.091 L 4 / 127.6 cu in. |
| Number of cylinders | Four |
| Cylinder liners | Cast-in-block |
| Bore and stroke | 86 x 90 mm 3.4 x 3.54 in. |
| Compression ratio | 19.1:1 |
| Lubrication | Pressurized |
| Cooling system | Liquid |
| Air cleaner | Dual element with electronic restriction indicator |
| Engine torque at rated speed | 139 Nm 102.5 lb-ft |
| Fuel tank capacity | Rollover protective structure (ROPS) - 56.9 L 15 U.S. gal. Cab - 52.2 L 13.8 U.S. gal. |
| Battery size | 770 CCA |
| Alternator (12-V) | 75 amp |
| Starter size | 2 kW 2.68 hp |
| Optional transmission; forward/reverse | 12/12 PowrReverser transmission (PRT) |
| Left-hand reverser | PRT only |
| Transmission gear ranges | PRT - 12F/12R eHydro - Infinitely-variable 3 range |
| Final drive | Planetary |
| Brakes | Multi-plate wet disc |
| Steering | Hydrostatic power steering |
| Clutch, wet/dry | Wet |
| Clutch disk diameter wet clutch | 129 mm 5.08 in. |
| Axle capacity | Front 1600 kg 3528 lb Rear 2400 kg 5292 lb |
| Creeper | SpeedMatch standard |
| Differential lock | Yes |
| Pump rated output | Steering 23.5 L/min 6.2 gpm Implement 42.3 L/min 11.2 65.8 L/min 17.4 gpm |
| Pump type | Single gear |
| Draft control sensing | Position control |
| Remote control valves available | Up to six rear remotes |
| Standard | Independent 540 rpm at 2600 rpm |
| Optional | 540E rpm |
Inventory moves fast. Call your nearest store to confirm this unit is still here and get the current price.
Yes. Send us the make, model, year and hours of your machine and we will apply the equity.
Often yes, through John Deere Financial and outside lenders depending on the machine. Subject to approved credit and to change.
Yes. We move equipment between all 17 of our Indiana and Ohio dealerships.
Tell us what you want to know about the John Deere 4052R.
