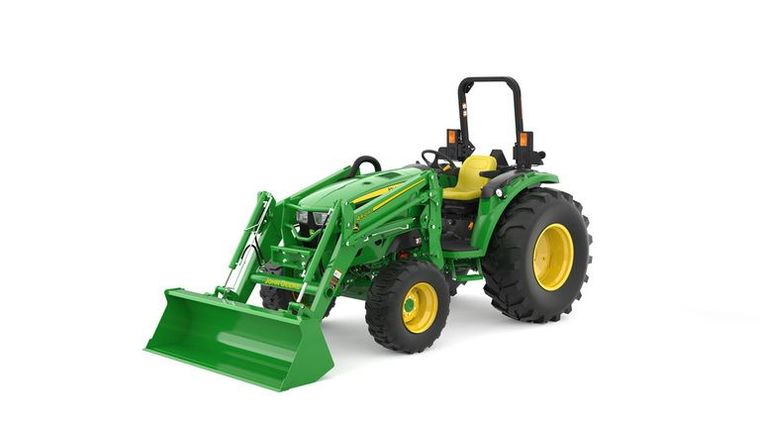

John Deere 4066M Heavy Duty
Request price
Available through TRULAND Equipment
- Category
- 4 Family 43 75Hp
- Type
- 4 Family 43 75Hp
- Condition
- New
| Engine power (gross) | SAE J1995 rated power: 48.5 kW 65 hp 65.9 PS at 2600 rpm |
| Power take-off (PTO) power | 38.7 kW 51.9 hp |
| Steering hydraulics | 23.5 L/min 6.2 gpm |
| Implement hydraulics | 42.3 L/min 11.2 gpm |
| Hitch type | Category 1/Category 2 |
| Lift capacity, 24-in. behind link arms | 1135 kg 2500 lb |
| Standard transmission; forward/reverse | eHydro transmission |
| Cruise control | Standard |
| Approximate shipping weight (open-station; cab) | Open station: 1950 kg 4290 lb Cab: Not applicable |
| Wheelbase | 185.5 cm 73 in. |
| Family | EYDXL2.09HDA FYDXL2.09HDA GYDXL2.09HDA |
| Manufacturer | Yanmar® |
| Engine model | 4TNV86CT-MJT |
| Rated engine speed | 2600 rpm |
| Type | Diesel |
| Injection pump type | High-pressure common rail direct injection |
| Aspiration | Turbocharged and charge air cooled |
| Emissions compliance | Final Tier 4 |
| Cylinders/displacement | 4 cylinders 2.091 L 127.6 cu in. |
| Number of cylinders | Four |
| Cylinder liners | Cast-in-block |
| Bore and stroke | 86 x 90 mm 3.4 x 3.54 in. |
| Compression ratio | 19.1:1 |
| Lubrication | Pressurized |
| Cooling system | Liquid |
| Air cleaner | Dual element with electronic restriction indicator |
| Engine torque at rated speed | 178 Nm 131.3 lb-ft |
| Fuel tank capacity | 56.9 L 15 U.S. gal. |
| Battery size | 770 CCA |
| Alternator (12-V) | 75 amp |
| Starter size | 2 kW 2.68 hp |
| Transmission gear ranges | eHydro - Infinitely-variable three range |
| Final drive | Planetary |
| Brakes | Multi-plate wet disc |
| Steering | Hydrostatic power steering |
| Clutch, wet/dry | Wet |
| Clutch disk diameter wet clutch | 129 mm 5.08 in. |
| Axle capacity | Front 1600 kg 3528 lb Rear 2400 kg 5292 lb |
| Creeper | SpeedMatch™ standard |
| Differential lock | Yes |
| Pump rated output | Steering 23.5 L/min 6.2 gpm Implement 42.3 L/min 11.2 gpm |
| Pump type | Single gear |
| Draft control sensing | Position control |
| Remote control valves available | Two remotes standard |
| Standard | Independent 540 rpm at 2600 rpm |
| Optional | 540E rpm |
| Control | Independent |
| Clutch | Wet disc |
Inventory moves fast. Call your nearest store to confirm this unit is still here and get the current price.
Yes. Send us the make, model, year and hours of your machine and we will apply the equity.
Often yes, through John Deere Financial and outside lenders depending on the machine. Subject to approved credit and to change.
Yes. We move equipment between all 17 of our Indiana and Ohio dealerships.
Tell us what you want to know about the John Deere 4066M Heavy Duty.
