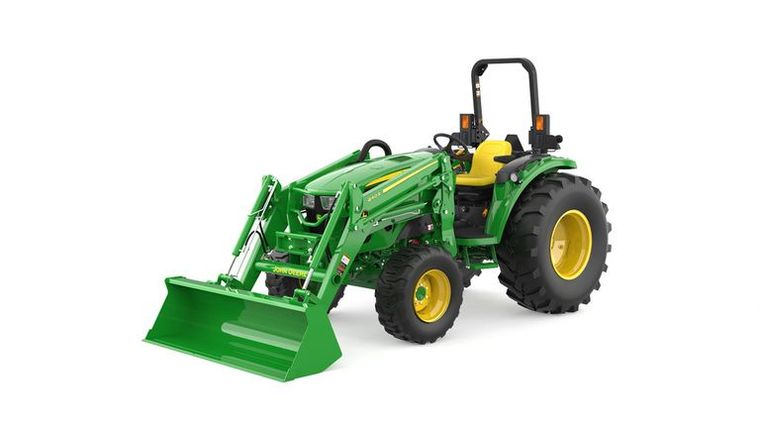

John Deere 4052M Heavy Duty
Request price
Available through TRULAND Equipment
- Category
- 4 Family 43 75Hp
- Type
- 4 Family 43 75Hp
- Condition
- New
| Engine power (gross) | 37.9 kW 51.5 hp PS at 2600 rpm SAE J1995 rated power |
| Power take-off (PTO) power | eHydro™ transmission: 30.5 kW 40.9 hp Per SAE J1995 |
| Steering hydraulics | 23.5 L/min 6.2 gpm |
| Implement hydraulics | 42.3 L/min 11.2 gpm |
| Hitch type | Category 1/Category 2 |
| Lift capacity, 24-in. behind link arms | 1135 kg 2500 lb |
| Standard transmission; forward/reverse | eHydro transmission |
| Cruise control | Standard |
| Approximate shipping weight (open-station; cab) | Open station: 1943 kg 4255 lb Cab: Not applicable |
| Wheelbase | 185.5 cm 73 in. |
| Family | EYDXL2.09TDA FYDXL2.09TDA GYDXL2.09TDA |
| Manufacturer | Yanmar® |
| Engine model | 4TNV86CT-MJT |
| Rated engine speed | 2600 rpm |
| Type | Diesel |
| Injection pump type | High-pressure common rail direct injection |
| Aspiration | Turbocharged |
| Emissions compliance | Final Tier 4 |
| Cylinders/displacement | 4 cylinders 2.091 L 127.6 cu in. |
| Number of cylinders | Four |
| Cylinder liners | Cast-in-block |
| Bore and stroke | 86 x 90 mm 3.4 x 3.54 in. |
| Compression ratio | 19.1:1 |
| Lubrication | Pressurized |
| Cooling system | Liquid |
| Air cleaner | Dual element with electronic restriction indicator |
| Engine torque at rated speed | 139 Nm 102.5 lb-ft |
| Fuel tank capacity | 56.9 L 15 U.S. gal. |
| Battery size | 770 CCA |
| Alternator (12-V) | 75 amp |
| Starter size | 2 kW 2.68 hp |
| Transmission gear ranges | eHydro - Infinitely-variable three range |
| Final drive | Planetary |
| Brakes | Multi-plate wet disc |
| Steering | Hydrostatic power steering |
| Clutch, wet/dry | Wet |
| Clutch disk diameter wet clutch | 129 mm 5.08 in. |
| Axle capacity | Front 1600 kg 3528 lb Rear 2400 kg 5292 lb |
| Creeper | SpeedMatch™ standard |
| Differential lock | Yes |
| Pump rated output | Steering 23.5 L/min 6.2 gpm Implement 42.3 L/min 11.2 gpm |
| Pump type | Single gear |
| Draft control sensing | Position control |
| Remote control valves available | Two remotes standard |
| Standard | Independent 540 rpm at 2600 rpm |
| Optional | 540E rpm |
| Control | Independent |
| Clutch | Wet disc |
