New
1 Family 23 25Hp

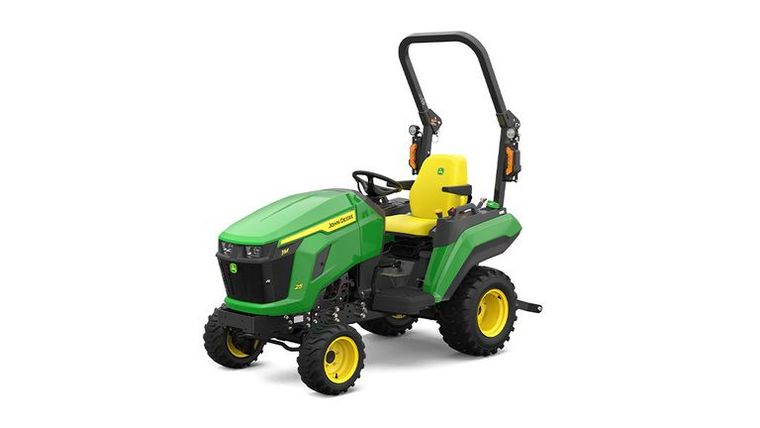

John Deere 1M 25
Request price
Available through TRULAND Equipment
- Category
- 1 Family 23 25Hp
- Type
- 1 Family 23 25Hp
- Condition
- New
| Equipment Mobile app | Additional Equipment Mobile app features with Smart Connector |
| Engine power (gross) | SAE J1995 rated power: 17.8 kW 23.9 hp 24.2 PS at 3200 rpm |
| Power take-off (PTO) power | Hydrostatic transmission: 13.6 kW 18.2 hp |
| Steering hydraulics | 13.2 L/min 3.5 gpm |
| Implement hydraulics | 13.2 L/min 3.5 gpm |
| Hitch type | Limited Category 1 |
| Lift capacity, 24-in. behind link arms | 344 kg 758 lb |
| Standard transmission; forward/reverse | Hydro Transmission (HST) |
| Cruise control | Standard |
| Approximate shipping weight (open-station; cab) | Open station: 706 kg 1556 lb Cab: 906 kg 1996 lb |
| Wheelbase | 1450 mm 57.1 in. |
| Manufacturer | Yanmar® |
| Engine model | 3TNV80F-NCJT |
| Rated engine speed | 3200 rpm |
| Type | Diesel |
| Injection pump type | Indirect injection |
| Aspiration | Natural |
| Emissions compliance | Final Tier 4 |
| Cylinders/displacement | 1.267 L 77.3 cu in. |
| Number of cylinders | 3 |
| Bore and stroke | 80 x 84 mm 3.15 x 3.31 in. |
| Cooling system | Water pump |
| Air cleaner | Dual element with mechanical restriction indicator |
| Fuel tank capacity | 24 L 6.3 U.S. gal. |
| Battery size | 500 CCA |
| Alternator (12-V) | 40 amp |
| Brakes | Wet disc (left-hand pedal) |
| Steering | Power steering |
| Axle capacity | Front 612 kg 1349 lb Rear 715 kg 1576 lb |
| Pump rated output | Steering 13.2 L/min 3.5 gpm Implement 13.2 L/min 3.5 gpm 24 L/min 6.3 gpm |
| Draft control sensing | Position control |
| Remote control valves available | Three |
| Standard | Rear - 540 rpm Mid - 2100 rpm |
| Control | Independent |
| Clutch | Wet disk |
| Brake (for mid and rear PTO) | Wet disk |
| Rollover protective structure | Type Foldable Yes |
| HVAC | Yes |
| Doors | Two |
| Seat equipment | Suspension Seat |
| Front axle clearance | 195 mm 7.7 in. |
| Turning radius with brakes | 2.51 m 8.2 ft |
| Turning radius without brakes | 2.32 m 7.61 ft |
| Front | R3 Turf: 18x8.50-10 R3 Turf Radial: 18x8.50-10 R4: 18x8.5-10 |
| Rear | R3 Turf: 26x12-12 R4: 26x12-12 |
| Front tread range | 915 mm 36 in. |
| Rear tread spacing | 896 mm 35 in. |
| Toolbox | Yes |
Inventory moves fast. Call your nearest store to confirm this unit is still here and get the current price.
Yes. Send us the make, model, year and hours of your machine and we will apply the equity.
Often yes, through John Deere Financial and outside lenders depending on the machine. Subject to approved credit and to change.
Yes. We move equipment between all 17 of our Indiana and Ohio dealerships.
Tell us what you want to know about the John Deere 1M 25.
