New
1 Family 23 25Hp

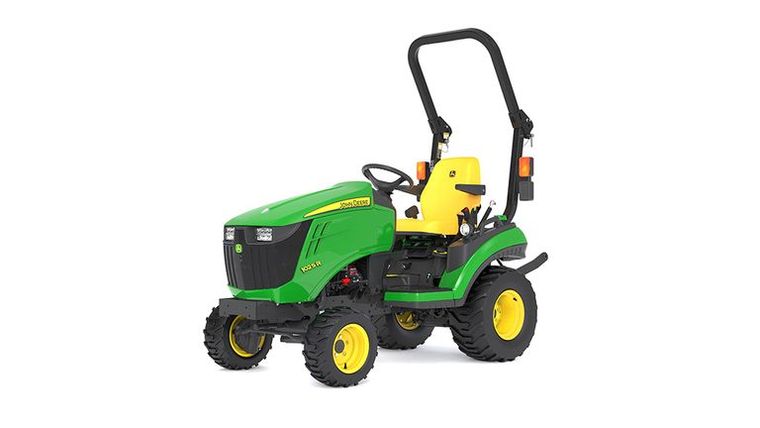

John Deere 1025R
Request price
Available through TRULAND Equipment
- Category
- 1 Family 23 25Hp
- Type
- 1 Family 23 25Hp
- Condition
- New
| Engine power (gross) | SAE J1995 rated power: 17.8 kW 23.9 hp 24.2 PS at 3200 rpm |
| Power take-off (PTO) power | 13.6 kW 18.2 hp |
| Steering hydraulics | 13.2 L/min 3.5 gpm |
| Implement hydraulics | 13.2 L/min 3.5 gpm |
| Hitch type | Limited Category 1 |
| Lift capacity, 24-in. behind link arms | 344 kg 758 lb |
| Standard transmission; forward/reverse | Hydrostatic - two range |
| Cruise control | Standard |
| Approximate shipping weight (open-station; cab) | Open station: 706 kg 1556 lb Cab: 906 kg 1996 lb |
| Wheelbase | 1450 mm 57.1 in. |
| Manufacturer | Yanmar® |
| Engine model | 3TNV80F-NCJT |
| Rated engine speed | 3200 rpm |
| Type | Diesel |
| Injection pump type | Indirect injection |
| Aspiration | Natural |
| Emissions compliance | Final Tier 4 |
| Cylinders/displacement | Three cylinders: 1.267 L 77.3 cu in. |
| Number of cylinders | Three |
| Cylinder liners | Cast-in-block |
| Bore and stroke | 80 x 84 mm 3.15 x 3.31 in. |
| Compression ratio | 23.1:1 |
| Lubrication | Pressurized |
| Cooling system | Water pump |
| Air cleaner | Dual element with mechanical restriction indicator |
| Engine torque at rated speed | 53.1 Nm 39.2 lb-ft |
| Fuel tank capacity | 24 L 6.3 U.S. gal. |
| Battery size | 500 CCA |
| Alternator (12-V) | 40 amp |
| Starter size | 1.2 kW 1.6 hp |
| Left-hand reverser | No |
| Final drive | Spur gear |
| Brakes | Wet disc (left-hand pedal) |
| Steering | Power |
| Axle capacity | Front 612 kg 1349 lb Rear 715 kg 1576 lb |
| Creeper | No |
| Differential lock | Yes |
| Pump rated output | Steering 13.2 L/min 3.5 gpm Implement 13.2 L/min 3.5 gpm 24 L/min 6.3 gpm |
| Pump type | Single gear |
| Maximum operating pressure | 138 bar 2000 psi |
| Draft control sensing | Position control |
| Remote control valves available | Three |
| Standard | Rear: 540 rpm Mid: 2100 rpm |
| Control | Independent |
| Clutch | Wet disk |
| Brake (for mid and rear PTO) | Wet disk |
| Crankcase with filter | 2.7 L 2.9 gal. |
| Transmission and hydraulic system | 12.3 L 3.2 gal. |
Inventory moves fast. Call your nearest store to confirm this unit is still here and get the current price.
Yes. Send us the make, model, year and hours of your machine and we will apply the equity.
Often yes, through John Deere Financial and outside lenders depending on the machine. Subject to approved credit and to change.
Yes. We move equipment between all 17 of our Indiana and Ohio dealerships.
Tell us what you want to know about the John Deere 1025R.
