New
1 Family 23 25Hp

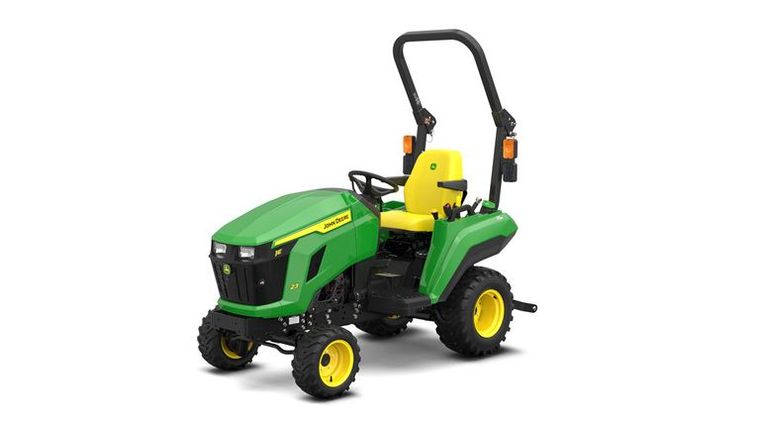

John Deere 1E 23
Request price
Available through TRULAND Equipment
- Category
- 1 Family 23 25Hp
- Type
- 1 Family 23 25Hp
- Condition
- New
| Equipment Mobile app | Additional Equipment Mobile app features with Smart Connector |
| Engine power (gross) | SAE J1995 rated power: 16 kW 21.5 hp 21.8 PS at 3200 rpm |
| Power take-off (PTO) power | Hydrostatic transmission: 12.1 kW 16.2 hp |
| Steering hydraulics | 13.2 L/min 3.5 gpm |
| Implement hydraulics | 13.2 L/min 3.5 gpm |
| Hitch type | Limited Category 1 |
| Lift capacity, 24-in. behind link arms | 344 kg 758 lb |
| Standard transmission; forward/reverse | Hydro Transmission (HST) |
| Approximate shipping weight | OS 656 kg 1446 lb |
| Wheelbase | 1450 mm 57.1 in. |
| Manufacturer | Yanmar® |
| Engine model | 3TNM74F-NCJT |
| Rated engine speed | 3200 rpm |
| Type | Diesel |
| Injection pump type | Indirect injection |
| Aspiration | Natural |
| Emissions compliance | Final Tier 4 |
| Cylinders/displacement | Three cylinders: 0.993 L 60.6 cu in. |
| Number of cylinders | 3 |
| Bore and stroke | 74 x 77 mm 2.91 x 3.03 in. |
| Cooling system | Water pump |
| Air cleaner | Dual element with mechanical restriction indicator |
| Fuel tank capacity | 24 L 6.3 U.S. gal. |
| Battery size | 500 CCA |
| Alternator (12-V) | 40 amp |
| Brakes | Wet disc (left-hand pedal) |
| Steering | Power Steering |
| Axle capacity | Front 612 kg 1349 lb Rear 715 kg 1576 lb |
| Cruise control | No |
| Pump rated output | Steering 13.2 L/min 3.5 gpm Implement 13.2 L/min 3.5 gpm 24 L/min 6.3 gpm |
| Draft control sensing | Select control |
| Remote control valves available | Three |
| Standard | Rear: 540 rpm Mid: 2100 rpm |
| Control | Independent |
| Clutch | Wet disk |
| Brake (for mid and rear PTO) | Wet disk |
| Rollover protective structure | Type Foldable Yes |
| Front axle clearance | 195 mm 7.7 in. |
| Turning radius with brakes | 2.51 m 8.2 ft |
| Turning radius without brakes | 2.32 m 7.61 ft |
| Approximate shipping weight (open-station; cab) | Open station: 656 kg 1446 lb Cab: Not applicable |
| Front | R3 Turf: 18x8.50-10 R4: 18x8.5-10 |
| Rear | R3 Turf: 26x12-12 R4: 26x12-12 |
| Front tread range | 915 mm 36 in. |
| Rear tread spacing | 896 mm 35 in. |
| Toolbox | No |
| Tilt steering wheel | No |
| 12-V Outlet | No |
