New
Zero Turn Mowers

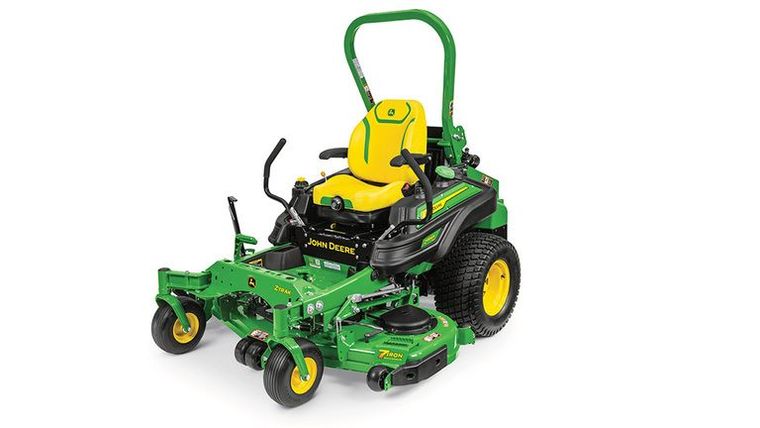

John Deere Z994R Diesel
Request price
Available through TRULAND Equipment
- Category
- Zero Turn Mowers
- Type
- Zero Turn Mowers
- Condition
- New
| Engine Manufacturer/model | 3TNV80F |
| Engine power | Gross at 3,200 rpm, PS: 23.2 hp 17.3 kW |
| Fuel tank capacity | 11.5 U.S. gal. 43.5 L |
| Blade tip speed | 7Iron PRO: Approximately 16,500 fpm 60-in. (152-cm) FastBack: Approximately 15,000 fpm 72-in. (183-cm) FastBack: Approximately 17,000 fpm |
| Transmission | Dual hydrostatic wheel drive TuffTorq™ heavy-duty ground drive with cross porting for improved cooling |
| Speed range | 0-11.4 mph 0-18.3 km/h |
| Drive wheels | 24x12.00-12 4-ply turf, optional 24x12-12 Michelin® Tweel® turf tires |
| Caster wheels | 13x5.0-6 flat free |
| Warranty | 36 months or 1500 hours, whichever comes first, no hour limitation for the first 24 months. |
| Manufacturer/Model | 3TNV80F |
| Power | Gross at 3,200 rpm, PS: 23.2 hp 17.3 kW |
| Displacement | 77.3 cu in. 1.27 L |
| Cylinders | Three |
| Crankcase capacity | 3.6 U.S. qt 3.4 L |
| Oil filter | Full flow, replaceable, spin-on type |
| Lubrication | Full pressure |
| Cooling | Liquid |
| Air cleaner | Pre-cleaner Yes Heavy-duty canister, dry type with safety element and air-restriction indicator |
| Fuel type | Diesel or Biodiesel (up to B20) |
| Fuel tank switch/shut-off valve | Yes |
| Charge system | 75 amp |
| Battery voltage | 12 V |
| Cold cranking amp | At 18 degrees C, 600 amp |
| Hour meter | Digital multi-function display |
| Operator presence starting system | Standard |
| Travel speed | Speed range 0-11.4 mph 0-18.3 km/h Forward 0-11.4 mph 0-18.3 km/h Reverse 0-4.5 mph 0-7.2 km/h |
| Speed and direction control | Zero turn |
| Hydraulic capacity | 5.9 U.S. gal. 5.6 L |
| Hydraulic oil cooler | Fins and fan |
| Filter | Internal, replaceable |
| Rear tires | 24x12.00-12 4-ply turf, optional 24x12N12 Michelin Tweel turf tires |
| Load rating | 4PR |
| Dynamic braking | Twin motion control levers |
| Park brake | Internal wet disk integrated in the transmission |
| Park brake actuation | Foot brake engagement also brings steering levers to the neutral position |
| Type | Electric clutch |
| Drive | V-belt |
| Deck construction | 7-Iron™ PRO: 7-gauge, 0.179-in. (4.6-mm) one-piece forged steel FastBack™ PRO: 7-gauge, 0.179-in. (4.6-mm) fabricated steel |
| Height-of-cut range | Increments 0.25 in. 0.64 cm 1-5.5 in. 2.54-14 cm |
| Cutting width | 60, 72 in. 152, 183 cm |
| Length | Varies by deck size |
| Thickness | 0.25 in. 0.64 cm |
| Number | Three |
| Caster wheel type | Flat free |
| Front anti-scalp rollers | LH, RH, Center |
| Rear anti-scalp rollers | Standard |
| Width | With chute down, 74, 86 in. 188, 218 cm Rear discharge, 63.5, 75.8 in. 161.3, 192.5 cm |
| Height | With ROPS up 73 in. 185 cm With ROPS down 47 in. 119 cm |
