New
Zero Turn Mowers

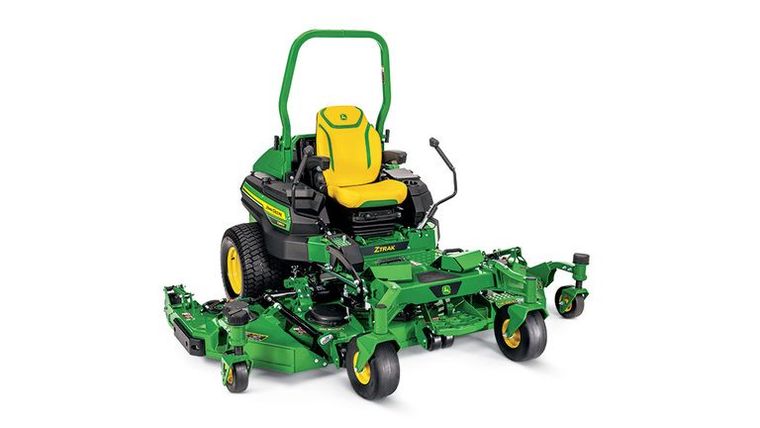

John Deere Z998R Diesel
Request price
Available through TRULAND Equipment
- Category
- Zero Turn Mowers
- Type
- Zero Turn Mowers
- Condition
- New
| Engine Manufacturer/model | 3TNV86C Turbo |
| Engine power | Gross at 3,000 rpm, PS: 43.4 hp 32.4 kW |
| Fuel tank capacity | 12 U.S. gal. 45.4 L |
| Mower deck size | 100-in. (254-cm) FastBack™ PRO rear-discharge with 61-in. (155-cm) center deck and two 22-in. (56-cm) wing decks |
| Blade tip speed | Approximately 16,500 fpm |
| Transmission | Hydrostatic |
| Speed range | 0-11.5 mph 0-18.5 km/h |
| Drive wheels | 26x14-12 square shoulder 4-ply turf |
| Caster wheels | 15x6-6 flat free |
| Warranty | 36 months or 1500 hours, whichever comes first, no hour limitation for the first 24 months. |
| Manufacturer/Model | 3TNV86C Turbo |
| Power | Gross at 3,000 rpm, PS: 43.4 hp 32.4 kW |
| Displacement | 95.7 cu in. 1,568 cc |
| Cylinders | Three |
| Crankcase capacity | 3.8 U.S. qt 3.6 L |
| Oil filter | Full flow, replaceable, spin-on type |
| Lubrication | Full pressure |
| Cooling | Liquid |
| Air cleaner | Pre-cleaner Yes Heavy-duty canister, dry type with safety element and air-restriction indicator |
| Fuel type | Diesel or Biodiesel (up to B20) |
| Fuel tank switch/shut-off valve | Yes |
| Charge system | 150 amp |
| Battery voltage | 12 V |
| Cold cranking amp | At 18 degrees C, 490 amp |
| Hour meter | Full-color touchscreen display |
| Operator presence starting system | Standard |
| Wheel motors | Hydro-Gear HGM18L 17.8 cu in. 292 cc |
| Travel speed | Speed range 0-11.5 mph 0-18.5 km/h Forward 0-11.5 mph 0-18.5 km/h Reverse 0-5 mph 0-8 km/h |
| Speed and direction control | Zero turn |
| Hydraulic capacity | Tank capacity, 3.2 U.S. gal. 12.1 L |
| Hydraulic oil cooler | Yes |
| Filter | Spin-on Type |
| Rear tires | 26x14-12 square shoulder 4-ply turf |
| Load rating | 4PR |
| Dynamic braking | Dual hand controlled levers |
| Park brake | Internal wet disk integrated in the transmission |
| Park brake actuation | Automatic engagement when steering levers are outward |
| Type | Hydraulic clutch |
| Drive | Internal wet disk clutch |
| Size | 100-in. (254-cm) FastBack™ PRO rear-discharge with 61-in. (155-cm) center deck and two 22-in. (56-cm) wing decks |
| Deck construction | FastBack™ PRO: 7-gauge, 0.179-in. (4.6-mm) fabricated steel |
| Height-of-cut range | Increments 0.25 in. 0.64 cm 1-5.5 in. 2.5-14.0 cm |
| Cutting width | 60, 80, 100 in. 152, 203, 254 cm |
| Length | Varies by deck size |
| Thickness | 0.25 in. 0.64 cm |
| Number | Five |
| Caster wheel type | Flat free |
| Front anti-scalp rollers | Center deck: Left, right, and center Wing decks: inboard, castering outboard |
Inventory moves fast. Call your nearest store to confirm this unit is still here and get the current price.
Yes. Send us the make, model, year and hours of your machine and we will apply the equity.
Often yes, through John Deere Financial and outside lenders depending on the machine. Subject to approved credit and to change.
Yes. We move equipment between all 17 of our Indiana and Ohio dealerships.
Tell us what you want to know about the John Deere Z998R Diesel.
