New
Zero Turn Mowers

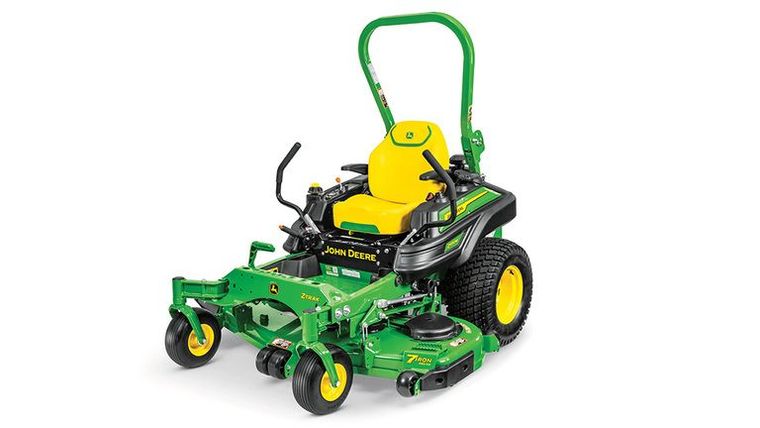

John Deere Z950M
Request price
Available through TRULAND Equipment
- Category
- Zero Turn Mowers
- Type
- Zero Turn Mowers
- Condition
- New
| Engine Manufacturer/model | FX850V |
| Engine power | Gross at 3,600 rpm 27 hp 20.1 kW |
| Fuel tank capacity | 11.5 U.S. gal. 43.5 L |
| Mower deck size | 60-in. (152-cm) 7Iron™ PRO side-discharge 72-in. (183-cm) 7Iron™ PRO side-discharge 54-in. (137-cm) 7Iron™ PRO Mulch On Demand™ 72-in. (183-cm) FastBack™ PRO rear-discharge |
| Blade tip speed | 7Iron PRO: Approximately 18,500 fpm 72-in. (183-cm) FastBack: Approximately 18,000 fpm |
| Transmission | Hydrostatic |
| Speed range | 0-12 mph 0-19.3 km/h |
| Drive wheels | 24x12-12 |
| Caster wheels | 13x6.5-6 |
| Warranty | 36 months or 1200 hours, whichever comes first First 24 months, no hour limitation |
| Manufacturer/Model | FX850V |
| Power | Gross at 3,600 rpm 27 hp 20.1 kW |
| Displacement | 52 cu in. 852 cc |
| Cylinders | Two |
| Crankcase capacity | With filter, 2.4 U.S. qt 2.3 L |
| Oil filter | Full flow, replaceable |
| Lubrication | Full pressure |
| Cooling | Air |
| Air cleaner | Pre-cleaner Yes Heavy-duty canister type with safety element |
| Fuel type | Gasoline |
| Fuel consumption | Under normal conditions, load, operation, and dependent on loads and operating conditions 1.1-1.9 U.S. gal./hr 4.2-7.2 L/hr |
| Fuel tank switch/shut-off valve | Yes |
| Charge system | 30 amp |
| Battery voltage | 12 V |
| Cold cranking amp | 300 amp |
| Hour meter | Standard, digital |
| Operator presence starting system | Brake-N-Go (hand) |
| Wheel motors | Tuff Torq heavy-duty integrated piston wheel motor |
| Travel speed | Speed range 0-12 mph 0-19.3 km/h Forward 0-12 mph 0-19.3 km/h Reverse 0-4.5 mph 0-7.2 km/h |
| Speed and direction control | Twin levers |
| Hydraulic capacity | 5.9 U.S. qt 5.6 L |
| Filter | Internal, replaceable |
| Load rating | 4 PR |
| Dynamic braking | Twin levers |
| Park brake | Internal wet disk integrated in the transmission |
| Park brake actuation | Hand brake |
| Type | Electro-magnetic, 225 lb-ft 305 Nm |
| Drive | V-belt |
| Size | 60-in. (152-cm) 7Iron™ PRO side-discharge 72-in. (183-cm) 7Iron™ PRO side-discharge 54-in. (137-cm) 7Iron™ PRO Mulch On Demand™ 72-in. (183-cm) FastBack™ PRO rear-discharge |
| Deck construction | 7-Iron™ PRO: 7-gauge, 0.179-in. (4.6-mm) one-piece forged steel FastBack™ PRO: 7-gauge, 0.179-in. (4.6-mm) fabricated steel |
| Height-of-cut range | Increments 0.25 in. 0.64 cm 1-5.5 in. 2.54-14 cm |
| Cutting width | 54, 60, 72 in. 137, 152, 183 cm |
| Length | Varies by deck size |
| Thickness | 0.25 in. 0.64 cm |
| Number | Three |
| Caster wheel type | Flat free |
| Front anti-scalp rollers | RH, center, LH |
| Rear anti-scalp rollers | Standard |
Inventory moves fast. Call your nearest store to confirm this unit is still here and get the current price.
Yes. Send us the make, model, year and hours of your machine and we will apply the equity.
Often yes, through John Deere Financial and outside lenders depending on the machine. Subject to approved credit and to change.
Yes. We move equipment between all 17 of our Indiana and Ohio dealerships.
Tell us what you want to know about the John Deere Z950M.
