New
John Deere Z700 Mowers

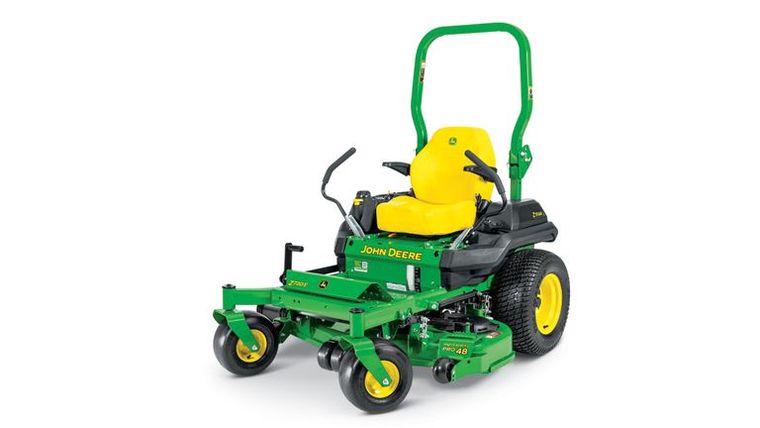

John Deere Z720E
Request price
Available through TRULAND Equipment
- Category
- John Deere Z700 Mowers
- Type
- John Deere Z700 Mowers
- Condition
- New
| Engine power | 23 hp 17.2 kW |
| Engine model number | FR691V |
| Forward speed | 0-8 mph 0-12.8 km/h |
| Front caster tires | 13x6.5-6 |
| Drive tires | 23x9.5-12 (48-in. decks) 23X10.5-12 (54- and 60-in. decks) |
| Seat back height | High back with adjustable armrests, 21 in. 53 cm |
| Width of cut | 48 in. 122 cm 54 in. 137 cm 60 in. 152 cm |
| Mulching system | Optional MulchControl™ attachment |
| Power | 23 hp 17.2 kW |
| Model number | FR691V |
| Displacement | 44.3 cu in. 726 cc |
| Cylinders | V-twin |
| Lubrication | Full pressure with replaceable filter, capacity, 2 U.S. qt 1.9 L |
| Type | Overhead valve |
| Battery | 12 V 340 CCA |
| Choke/speed control | Separate control levers |
| Cooling method | Air |
| Fuel tank capacity | 8 U.S. gal. 30.2 L |
| Fuel gauge | Fuel level sight line |
| Dual hydros | Hydro-gear ZT3100 with 1-in. (2.54-cm) axles |
| Reverse speed | 0-4 mph 0-6.4 km/h |
| Speed and direction control | Twin standard levers |
| Control adjustment | 2-height/18 positions |
| Frame | Heavy-duty frame tubing |
| Primer/paint | E-coat/powder |
| Front caster bearings | Sealed ball bearings |
| Hour meter | Yes |
| Service interval decal | Yes |
| Storage compartment | Yes |
| Cup holder | Yes |
| Fore-aft adjustment | While seated, 4 in. 10.2 cm |
| Seat suspension | Two four-position springs |
| Mower cut height | 1.5-5 in. 3.8-12.7 cm |
| Cut height increments | 0.25 in. 0.64 cm |
| Preset cut height | Yes |
| Mower deck material | 9 gauge 0.150 in. 3.8 mm |
| Mower drive system | V-belt |
| Drive | V-belt |
| Wheelbase | 49.9 in. 126.7 cm |
| Overall length | 80.6 in. 204.6 cm |
| Width without mower | 48.6 in. 123.5 cm |
| Width with mower | 48 HC, 62.3 in. 158.2 cm 54 HC, 68.2 in. 173.2 cm 60 HC, 73.3 in. 186.1 cm |
| Width with mower (deflector raised for storage) | 48 HC, 53.2 in. 135.1 cm 54 HC, 59.4 in. 151 cm 60 HC, 64.8 in. 164.5 cm |
| Height | ROPS up - 71.1 in. 182.2 cm ROPS down - 47.4 in. 120.3 cm |
| Weight | With mower and fuel, 48 HC, 950 lb 431 kg With mower and fuel, 54 HC, 965 lb 437 kg With mower and fuel, 60 HC, 995 lb 451 kg |
| Rollover protective structure (ROPS) | Yes |
| Slope operating limit | 15 degrees (material collection systems, weather enclosures, or other attachments increase the risk of a rollover) |
| Operator presence system | Yes |
Inventory moves fast. Call your nearest store to confirm this unit is still here and get the current price.
Yes. Send us the make, model, year and hours of your machine and we will apply the equity.
Often yes, through John Deere Financial and outside lenders depending on the machine. Subject to approved credit and to change.
Yes. We move equipment between all 17 of our Indiana and Ohio dealerships.
Tell us what you want to know about the John Deere Z720E.
