New
Mid Size Utvs

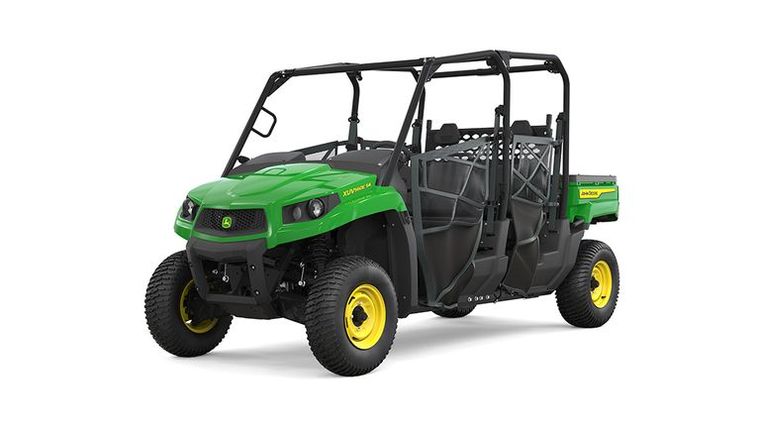

John Deere XUV560E S4
Request price
Available through TRULAND Equipment
- Category
- Mid Size Utvs
- Type
- Mid Size Utvs
- Condition
- New
| Engine power | 11.9 kW 16 hp |
| Cargo box dimensions | 820 x 1209 x 297 mm 32.3 x 47.6 x 11.7 in. |
| Cargo box capacity (weight) | 227 kg 500 lb |
| Towing capacity | 680 kg 1500 lb |
| Front suspension | Fully independent dual A-arm with adjustable coil over shocks, 203 mm (8 in.) travel, anti-roll bar |
| Rear suspension | Fully independent with lower A-arm and upper camber link with adjustable coil over shocks, 203 mm (8 in.) travel |
| Final drive | Park, high, low, neutral, reverse transaxle |
| Four wheel drive | Dash switch actuated four-wheel drive system |
| Fuel capacity | 28 L 7.4 U.S. gal. |
| Type | 4-cycle gas, V-twin, dynamically tuned carb, overhead valves (OHV) |
| Displacement | 570 cc |
| Power | 11.9 kW 16 hp |
| Cooling system | Air cooled |
| Transmission | Continuously Variable Transmission (CVT) with clutch enclosure |
| Traction assist | Limited slip front differential, Positive locking, switch actuated rear differential lock |
| Descent control | No |
| Front | Fully independent dual A-arm with adjustable coil over shocks, 203 mm (8 in.) travel, anti-roll bar |
| Rear | Fully independent with lower A-arm and upper camber link with adjustable coil over shocks, 203 mm (8 in.) travel |
| Park brake | Park in-transmission |
| Wheelbase | 2743 mm 108 in. |
| Weight | With fuel and fluids: 683 kg 1507 lb |
| Length | 3658 mm 144 in. |
| Width | 1435 mm 56.5 in. |
| Height | 1880 mm 74 in. |
| Tread centers | Front: 1220 mm 48 in. Rear: 1168 mm 46 in. |
| Ground clearance | Minimum: 236 mm 9.3 in. |
| Payload capacity | 590 kg 1300 lb |
| Hitch | Standard 50 mm (2 in.) rear receiver with optional 50 mm (2 in.) front receiver with recovery loops |
| Color | Green/yellow |
| Power steering | Not available |
| Battery / Alternator / Power port | Battery: 12 V 340 CCA Alternator: 16 amp DC outlet: 12 V |
| Instrumentation | Digital display with hour meter with maintenance and driver seatbelt reminder; speedometer, gear position, 4WD indicator, rear differential indicator, and engine oil temperature sensor |
| Storage | Two cupholders, sealed underhood storage, glove box |
| Seating | Black vinyl front and rear bench (four-passenger) |
| Country of Manufacture | U.S. |
| Date collected | 8-Jun-22 |
Inventory moves fast. Call your nearest store to confirm this unit is still here and get the current price.
Yes. Send us the make, model, year and hours of your machine and we will apply the equity.
Often yes, through John Deere Financial and outside lenders depending on the machine. Subject to approved credit and to change.
Yes. We move equipment between all 17 of our Indiana and Ohio dealerships.
Tell us what you want to know about the John Deere XUV560E S4.
