| Green | Merger is running in healthy conditions. |
| Yellow | Will warn the operator to check the system, which could indicate plugging, belt tension, hydraulic leak, or crop build up. |
| Red | Means extreme slip and will shut off merger belt and head to protect the system. |
| R-Spec | W235R, W260R |
| Comfort and Convenience | Seat Vision cloth Mechanical controls Mechanical lumbar 16-degrees right and 8- degrees left swivel |
| Infotainment | AM/FM/WB Auxiliary and Bluetooth inputs Two speakers |
| Interior upholstery | Upholstery without right- hand storage |
| Exterior styling | Without exterior styling panels |
| Visibility | Lighting Halogen |
| Mirrors | Manual |
| Sunshades | Front |
| Wipers | Front |
| Seat suspension | Air (passive) Yes |
| Active suspension | No |
| Precision Ag Technology | Integrated StarFire™ receiver Integrated StarFire Ready |
| Display | 25.7 cm (10.1 in.) G5 CommandCenter™ with the Cornerpost display |
| Extended Display | No |
| Extended display | Yes Yes Yes |
| Engine - Model | PowerTech™ PSS Final Tier 4 |
| Horsepower | At 2,400 rpm: 193 kW 260 hp |
| Ground drive - Type | Two-speed hydrostatic |
| Fuel - Capacity | 568 L 150 U.S. gal. DEF: 26.5 L 7 U.S. gal. |
| Low range | With two speed: 24.1 km/h 15 mph |
| High range 2 speed / Mid range 3 speed | With two speed: 38.4 km/h 24 mph |
| Vehicle | Standard width stance with suspended rear axle in base |
| Seat | Air suspension |
| Under frame clearance | 1120 mm 44 in. |
| Weight - Total | 6998 kg 15,428 lb |
| Model | PowerTech PSS Final Tier 4 |
| No. of cylinders | Six |
| Exhaust direction | Vertical |
| Engine displacement | 6.8 L 415 cu in. |
| Engine speeds | Low idle 900 rpm Variable idle Electronic adjustable from 1,700 to 2,450 rpm High idle (no load) 2,450 rpm Rated speed 2450 rpm |
| Oil crankcase capacity (with filter) | 31.4 L 33.2 U.S. qt |
| Cooling system | 49.2 L 52 U.S. qt |
| Type | Base: Two-speed hydrostatic |
| Number of pumps (Rotary/Auger) | One |
| Number of motors (Rotary/Auger) | One |
| Pump displacement | 115 cc 7.02 cu in. |
| Motor displacemen | Per revolution: 75.4 cm 3 Per revolution: 4.6 cu in. |
| Type / Activation | Manual parking brake engage button on armrest Parking brake automatically engages and disengages; integrated into multi-function lever |
| Reservoir capacity | 94.5 L 25 U.S. gal. |
| Capacity | 568 L 150 U.S. gal. DEF: 26.5 L DEF: 7 U.S. gal. |
| Alternator | 240 amp |
| Battery | Heavy-duty 12 V |
| Drive wheel standard | 620/75R26 Bar |
| Drive wheel option | Hybrid tires: 480/80R34 Radial button: 23.1R26 R3 |
| Caster wheels | 14Lx16.1 8-ply ribbed |
Inventory moves fast. Call your nearest store to confirm this unit is still here and get the current price.
Yes. Send us the make, model, year and hours of your machine and we will apply the equity.
Often yes, through John Deere Financial and outside lenders depending on the machine. Subject to approved credit and to change.
Yes. We move equipment between all 17 of our Indiana and Ohio dealerships.

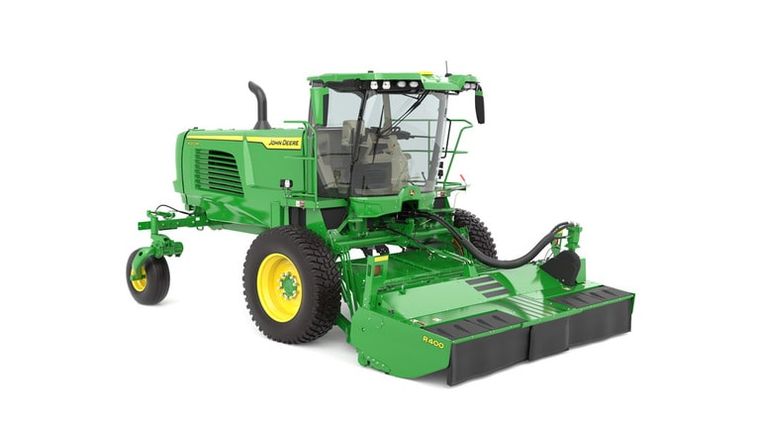

Tell us what you want to know about the John Deere W260M.
