| Green | Merger is running in healthy conditions. |
| Yellow | Will warn the operator to check the system, which could indicate plugging, belt tension, hydraulic leak, or crop build up. |
| Red | Means extreme slip and will shut off merger belt and head to protect the system. |
| R-Spec | W235R, W260R |
| Comfort and Convenience | Seat Vision cloth Mechanical controls Mechanical lumbar 16-degrees right and 8- degrees left swivel |
| Infotainment | AM/FM/WB Auxiliary and Bluetooth inputs Two speakers |
| Interior upholstery | Upholstery without right- hand storage |
| Exterior styling | Without exterior styling panels |
| Visibility | Lighting Halogen |
| Mirrors | Manual |
| Sunshades | Front |
| Wipers | Front |
| Seat suspension | Air (passive) Yes |
| Active suspension | No |
| Precision Ag Technology | Integrated StarFire™ receiver Integrated StarFire Ready |
| Display | 25.7 cm (10.1 in.) G5 CommandCenter™ with the Cornerpost display |
| Extended Display | No |
| Extended display | Yes Yes Yes |
| Engine - Model | 6.8L PSS Final Tier 4 |
| Horsepower | At 2,400 rpm: 193.9 kW 260 hp |
| Ground drive - Type | Two-speed hydrostatic |
| Fuel - Capacity | 568 L 150 U.S. gal. DEF: 26.5 L 7 U.S. gal. |
| Low range | 24.1 km/h 15 mph |
| High range 2 speed / Mid range 3 speed | 33.8 km/h 21 mph |
| Vehicle | Large drive tires and suspended rear axle in base |
| Seat | Air suspension, swivel fore-aft attenuation |
| Under frame clearance | 1,120 mm 44 in. |
| Weight - Total | 7348 kg 16,200 lb |
| Model | 6.8L PSS Final Tier 4 |
| No. of cylinders | Six |
| Exhaust direction | Vertical |
| Engine displacement | 414 cu in. 6.8 L |
| Engine speeds | Low idle 900 rpm Variable idle Electronic adjustable from 1,700 to 2,450 rpm High idle (no load) 2,450 rpm Rated speed 2,400 rpm |
| Oil crankcase capacity (with filter) | 31.4 L 33.2 U.S. qt |
| Cooling system | 49.2 L 52 U.S. qt |
| Type | Two-speed hydrostatic |
| Number of pumps (Rotary/Auger) | One |
| Number of motors (Rotary/Auger) | One |
| Pump displacement | 89 cm 3 5.43 cu in. |
| Motor displacemen | Per revolution: 75.4 cm 3 Per revolution: 4.6 cu in. |
| Ratio | 36.8:1 |
| Type / Activation | Parking brake automatically engages and disengages; integrated into multifuncton control lever |
| Reservoir capacity | 94.5 L 25 U.S. gal. |
| Capacity | 568 L 150 U.S. gal. DEF: 26.5 L DEF: 7 U.S. gal. |
| Alternator | 240 amp |
| Battery | Heavy-duty 12 V |
| Drive wheel standard | 520/80R38 radial bar |
| Drive wheel option | Bias button, 480/80R38 149A8 R1 radial bar (required on 994-4m platform) |
Inventory moves fast. Call your nearest store to confirm this unit is still here and get the current price.
Yes. Send us the make, model, year and hours of your machine and we will apply the equity.
Often yes, through John Deere Financial and outside lenders depending on the machine. Subject to approved credit and to change.
Yes. We move equipment between all 17 of our Indiana and Ohio dealerships.

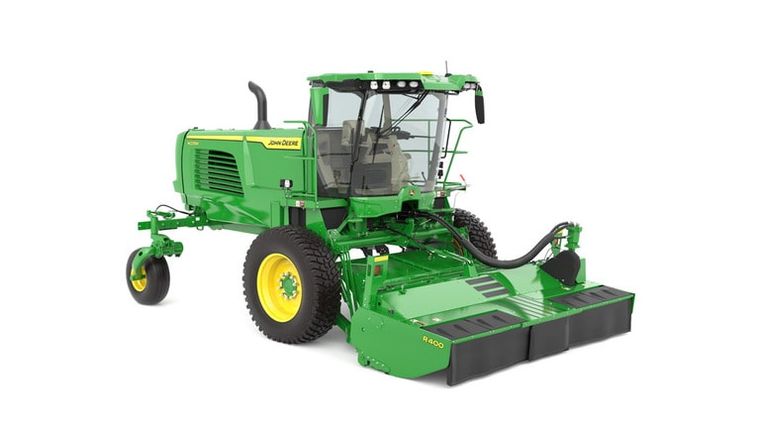

Tell us what you want to know about the John Deere W235M.
