New
Quiktrak Mowers

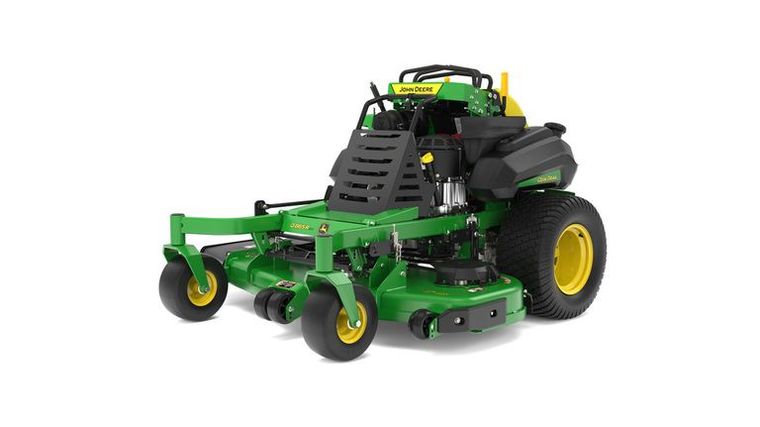

John Deere Q865R EFI
Request price
Available through TRULAND Equipment
- Category
- Quiktrak Mowers
- Type
- Quiktrak Mowers
- Condition
- New
| Mower deck | Q820M Q850M Q850R Q865R EFI |
| 48-in. (122-cm) 7Iron PRO | x |
| 54-in. (137-cm) 7Iron PRO | x x x |
| 60-in. (152-cm) 7Iron PRO | x x x x |
| Engine Manufacturer/model | FX820V EFI |
| Engine power | Gross at 3,600 rpm: 34.5 hp 25.7 kW |
| Fuel tank capacity | 12 U.S. gal. 45.3 L |
| Mower deck size | 60-in. (152-cm) 7Iron™ PRO side-discharge |
| Blade tip speed | Approximately 18,000 fpm 5486 m/min |
| Transmission | Tuff Torq TZT13 IHT |
| Speed range | 0-12 mph 0-19.3 km/h |
| Drive wheels | 24x12-12 pneumatic 24x12N12 Tweel |
| Caster wheels | 13x5-6 |
| Warranty | 36 months or 1500 hours, whichever comes first. First 24 months, no hour limitation. |
| Manufacturer/Model | FX820V EFI |
| Power | Gross at 3,600 rpm: 34.5 hp 25.7 kW |
| Displacement | 50.2 cu in. 822 cc |
| Cylinders | Two, V-twin |
| Crankcase capacity | With filter, 2.2 qt 2.1 L |
| Oil filter | Full flow, replaceable |
| Lubrication | Full pressure |
| Cooling | Forced air, with integrated clean out ports and oil cooler |
| Air cleaner | Heavy-duty canister type with safety element |
| Fuel type | Gasoline |
| Fuel tank switch/shut-off valve | No |
| Charge system | At 3,600 rpm 30A |
| Battery voltage | 12 V |
| Cold cranking amp | 300 CCA |
| Operator presence starting system | Yes |
| Hydraulic pumps | 0.79 cu in. 13 cc |
| Wheel motors | 13 cu in. 213 cc |
| Travel speed | Speed range 0-12 mph 0-19.3 km/h Forward Infinite, 0-12 mph Infinite, 0-19.3 km/h Reverse Infinite, 0-6 mph Infinite, 0-9.7 km/h |
| Speed and direction control | Twin hand-controlled levers |
| Hydraulic capacity | 6.0 U.S qt 5.7 L |
| Hydraulic oil cooler | Two 8.5 in. (22 cm) fans |
| Filter | Two internal and replaceable |
| Load rating | 4 PR |
| Dynamic braking | Dual hand-controlled levers |
| Park brake | Internal wet disk |
| Park brake actuation | Hand lever |
| Type | Electro-magnetic with brake, 225 lb-ft 305 Nm |
| Drive | V-belt |
| Size | 60-in. (152-cm) 7Iron™ PRO side-discharge |
| Deck construction | 7-Iron™ PRO: one-piece forged steel |
| Deck thickness | 7 gauge 0.180 in. 4.6 mm |
| Discharge | Side |
| Height-of-cut range | Increments 0.25 in. 0.64 cm 1.5-5 in. 3.8-12.7 cm |
| Cutting width | 60-in. (152-cm) 7Iron™ PRO side-discharge |
