New
Quiktrak Mowers

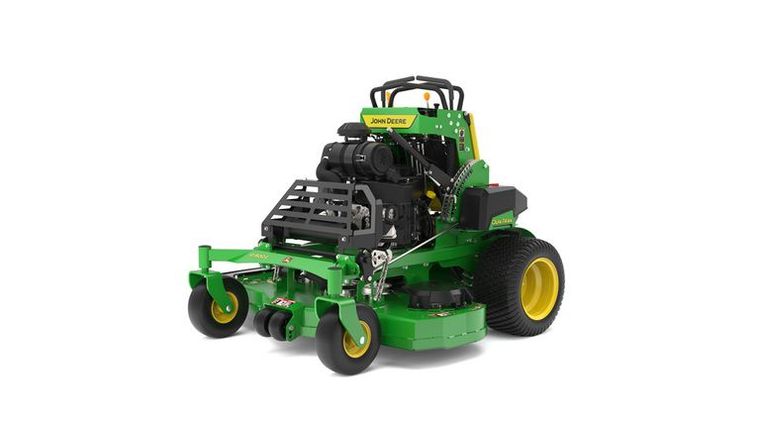

John Deere Q820E
Request price
Available through TRULAND Equipment
- Category
- Quiktrak Mowers
- Type
- Quiktrak Mowers
- Condition
- New
| Engine Manufacturer/model | FX730V |
| Engine power | Gross at 3,600 rpm: 23.5 hp 17.5 kW |
| Fuel tank capacity | 5.6 U.S. gal. 21.2 L |
| Mower deck size | 48-in. (122-cm) fabricated |
| Blade tip speed | Approximately 18,000 fpm 5486 m/min |
| Transmission | Separate hydraulic pumps and motors |
| Speed range | 0-8 mph 0-12.9 km/h |
| Drive wheels | 18x10.5-10 pneumatic |
| Caster wheels | 11x4-5 |
| Warranty | 36 months or 1200 hours, whichever comes first. First 24 months, no hour limitation. |
| Manufacturer/Model | FX730V |
| Power | Gross at 3,600 rpm: 23.5 hp 17.5 kW |
| Displacement | 44.3 cu in. 726 cc |
| Cylinders | Two, V-twin |
| Crankcase capacity | With filter, 2.2 qt 2.1 L |
| Oil filter | Full flow, replaceable |
| Lubrication | Full pressure |
| Cooling | Forced air, with integrated clean out ports |
| Air cleaner | Heavy-duty canister type with safety element |
| Fuel type | Gasoline |
| Fuel tank switch/shut-off valve | Yes |
| Charge system | At 3,600 rpm 20A |
| Battery voltage | 12 V |
| Cold cranking amp | 300 CCA |
| Hour meter | Digital |
| Operator presence starting system | Yes |
| Hydraulic pumps | 0.61 cu in. 10 cc |
| Wheel motors | 12 cu in. 196 cc |
| Travel speed | Speed range 0-8 mph 0-12.9 km/h Forward Infinite, 0-8 mph Infinite, 0-12.9 km/h Reverse Infinite, 0-3.5 mph Infinite, 0-5.6 km/h |
| Speed and direction control | Twin hand-controlled levers |
| Hydraulic capacity | With filter, dry, 5 qt 4.7 L |
| Hydraulic oil cooler | Radiator core |
| Filter | Spin-on replaceable |
| Load rating | 4 PR |
| Dynamic braking | Dual hand-controlled levers |
| Park brake | Tire engagement |
| Park brake actuation | Hand lever |
| Type | Electro-magnetic with brake, 125 lb-ft 169 Nm |
| Drive | V-belt |
| Size | 48-in. (122-cm) fabricated |
| Deck construction | Fabricated steel, floating mount system |
| Deck thickness | 7 gauge 0.180 in. 4.6 mm |
| Discharge | Side |
| Height-of-cut range | Increments 0.25 in. 0.64 cm 1.5-5 in. 3.8-12.7 cm |
| Cutting width | 48-in. (122-cm) fabricated |
| Thickness | 0.25 in. 0.64 cm |
| Number | Three |
| Caster wheel type | Flat free |
